Steel Warehouse | Elastic Structural Analysis & Design Review

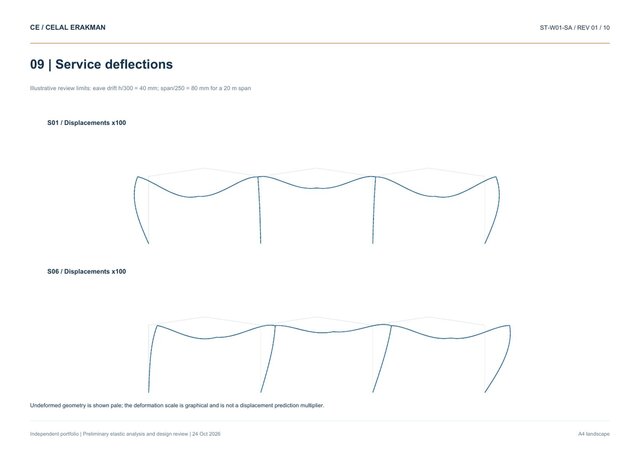

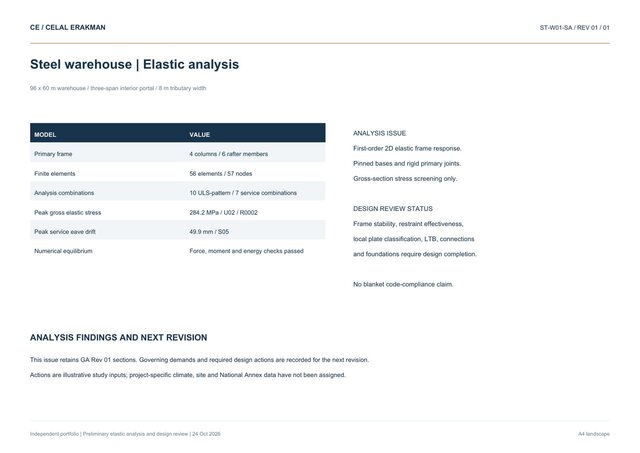

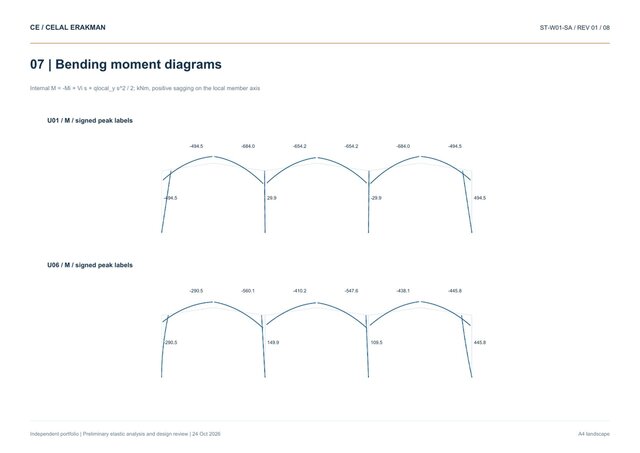

Structural analysis and design review for the ST-W01 96 x 60 m steel warehouse. The interior three-span portal uses the previously issued GA section geometry, an 8 m tributary width and 56 frame elements. Includes a 15-page calculation report, 17 load combinations, bending/axial/shear diagrams, service deformations, base action envelopes, elastic stability and restraint sensitivity, plus 16,184 station results. Numerical verification covers force and moment equilibrium, closed-form beam/column benchmarks and mesh refinement. Independent preliminary analysis portfolio. Prescribed study actions are recorded in the report. Section stress, service sway and stability findings identify required design revisions; this is an analysis and review issue, not a completed construction design.
