Steel Truss Structural Design

Report

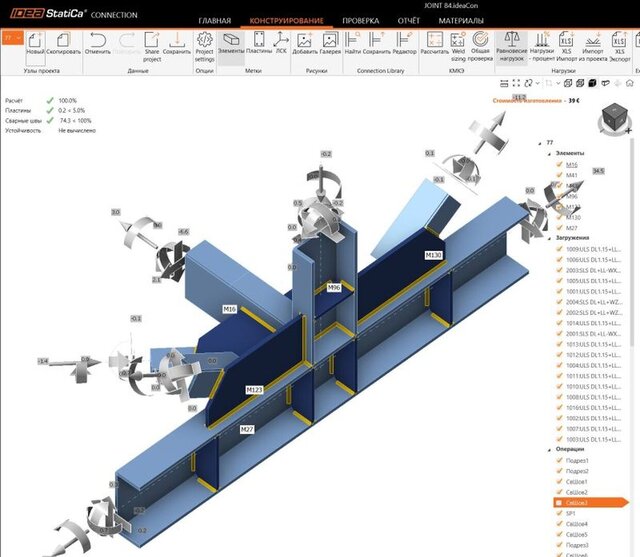

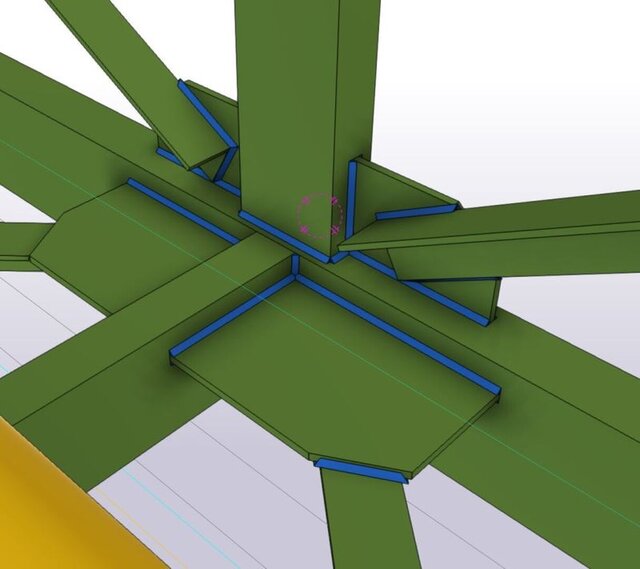

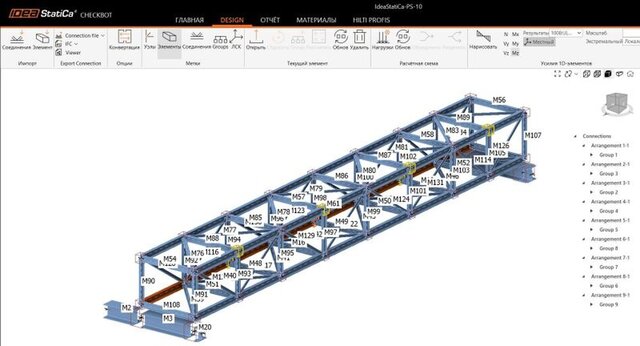

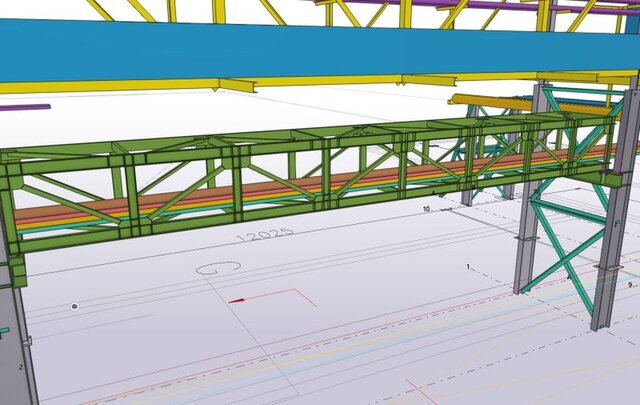

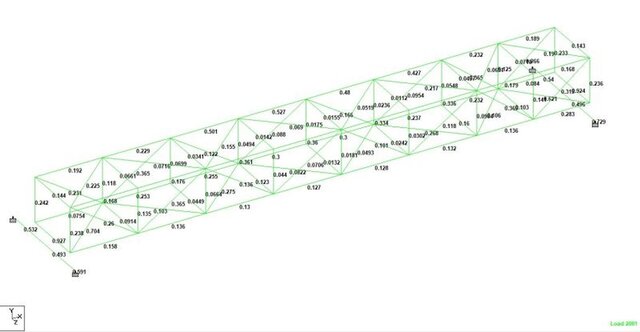

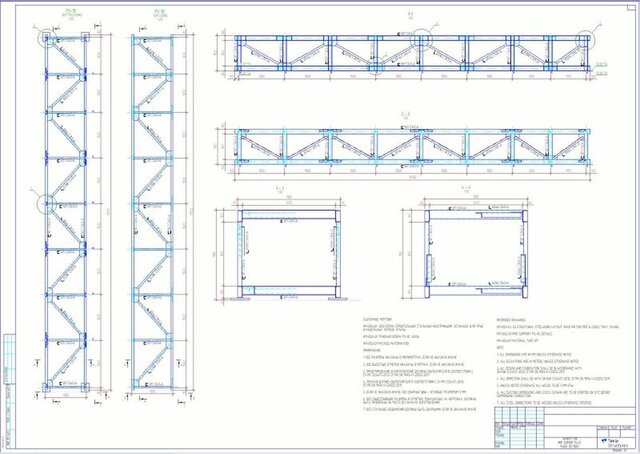

Structural design and BIM modeling of a steel truss structure for an industrial facility. The scope included structural modeling, load application, analysis and steel member verification in STAAD.Pro, steel connection analysis in IDEA StatiCa, and 3D structural modeling in Tekla Structures. GA and detail drawings were developed as part of the structural design documentation. Software used: STAAD.Pro, Tekla Structures, IDEA StatiCa.
Published
in 3D Modeling Structural Engineering FEA Finite Element Analysis
tekla-structures detail-drawings structural-analysis structural-design steel-structures ga-drawings idea-statica steel-structure-design staad-pro steel-connection-design
Rendering Images AutoCAD Industry Foundation Classes
