Steel Stair Detailing | Tekla Structures & Shop Drawings

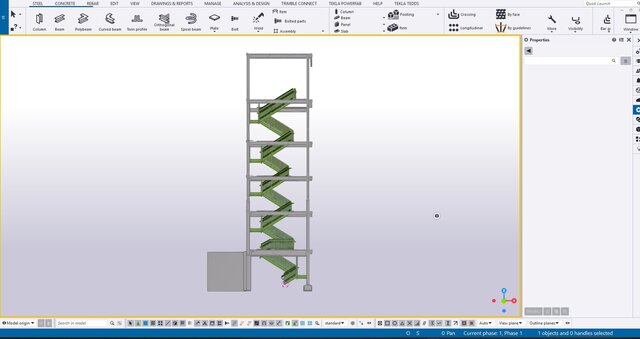

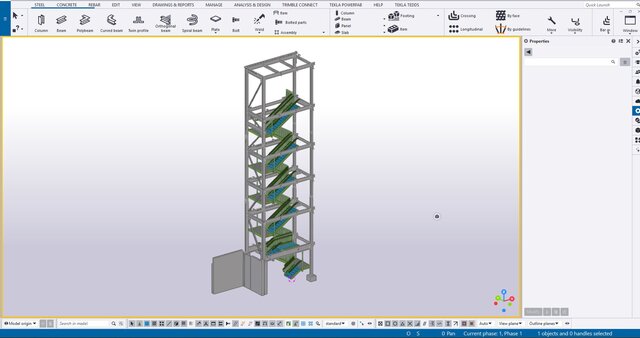

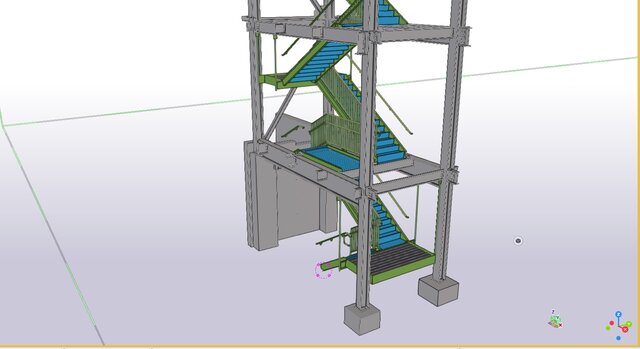

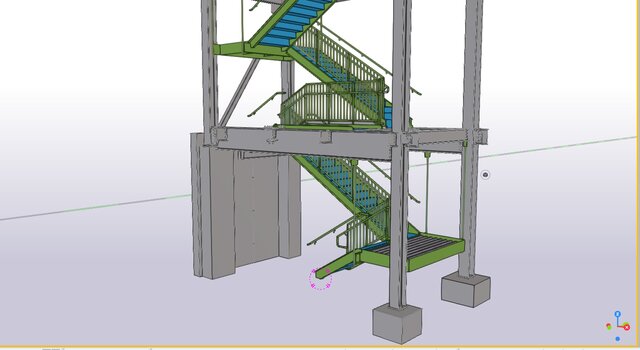

Steel stair system developed in Tekla Structures with a fabrication-focused detailing workflow. The project included 3D structural modeling, stair framing, landings, railings, connection detailing, assembly organization, shop drawings, part drawings, BOM information, and fabrication-ready documentation. The workflow was developed around production accuracy, buildable connections, clear part identification, and downstream fabrication requirements. Scope: Tekla Structures modeling, steel stair detailing, shop drawings, fabrication drawings, assembly detailing, connection development, BOMs, and production documentation.
