Steel Progressive Stamping Die | Multi-Station Full 3D Die Design

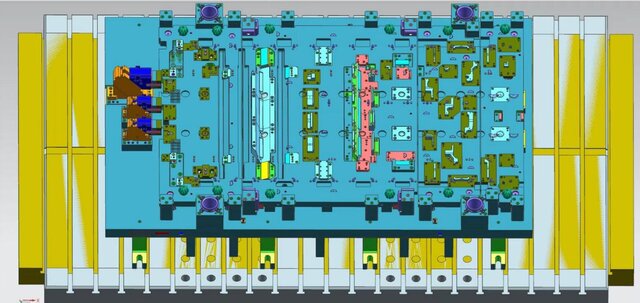

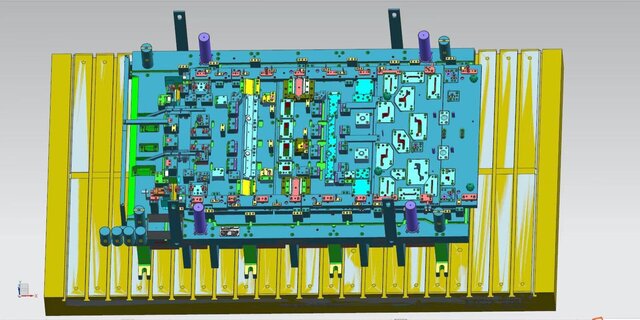

This project showcases a complete 3D design of a steel progressive stamping die, engineered for high-volume sheet metal component manufacturing. The die integrates multiple stamping processes including piercing, blanking, forming, trimming and part separation into a single continuous strip layout, enabling high-speed, uninterrupted production on standard stamping presses. We provide full-spectrum stamping die design services: DFM feasibility analysis, strip process planning, full 3D structure design, 2D detailed engineering drawings, and on-site tryout technical support. Our expertise covers progressive dies, single-station dies and transfer dies for automotive, hardware and home appliance industries.
