Steam Engine Model – Assembly Drawing, BOM & Detail Drawings (AutoCAD)

Aimane_Amrani

Report

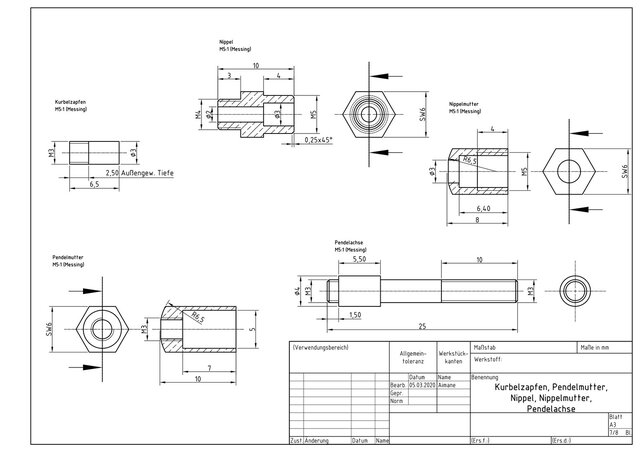

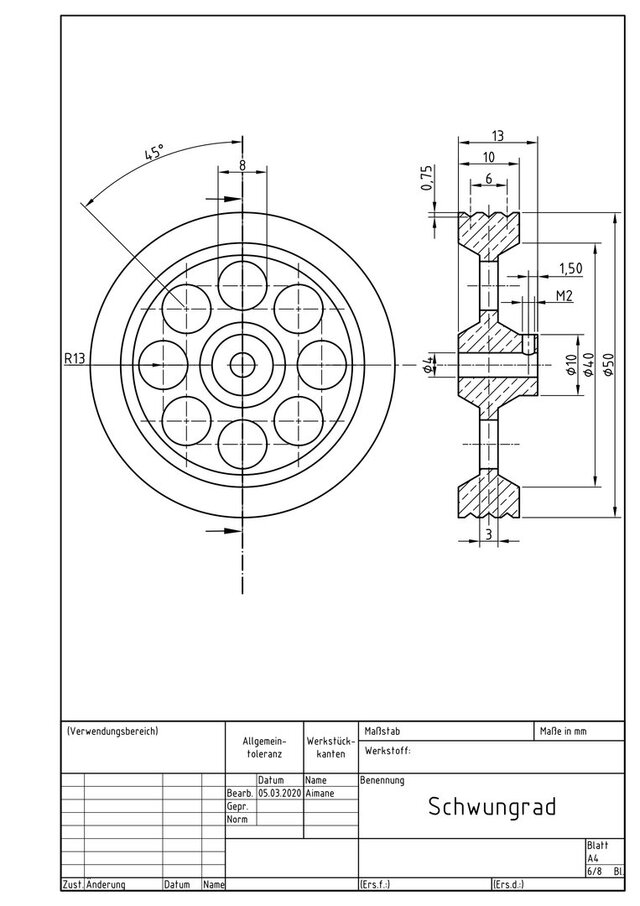

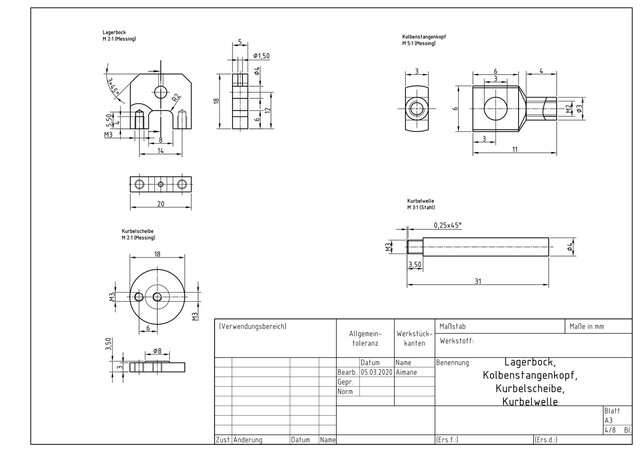

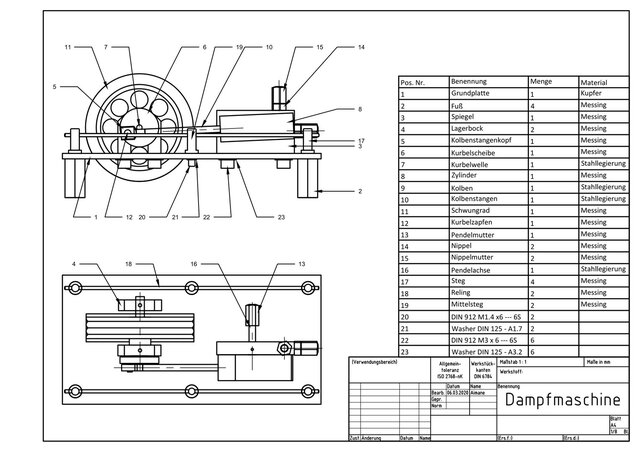

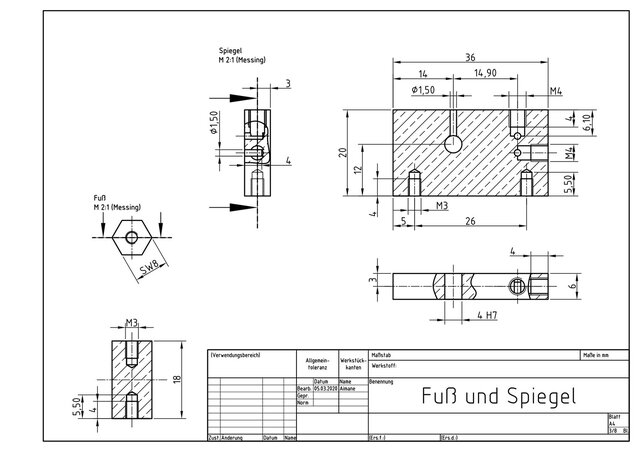

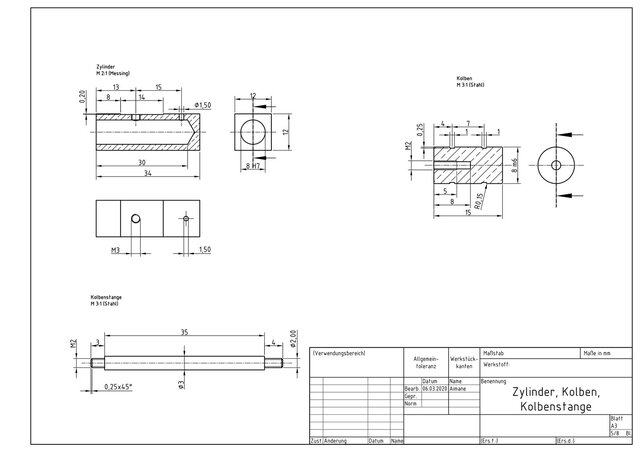

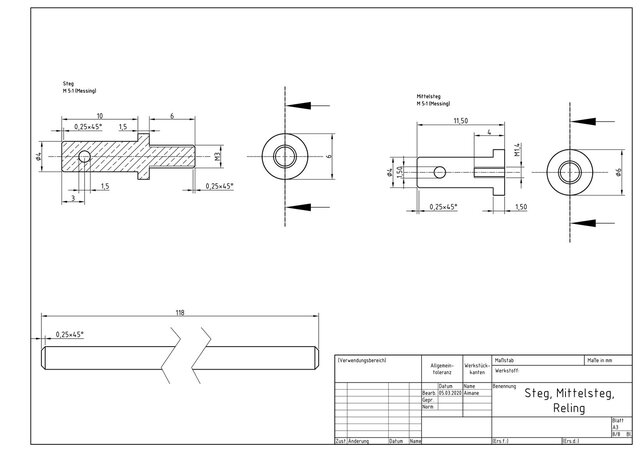

Complete technical documentation for a small steam engine model with 23 parts. Assembly drawing with part numbers and bill of materials (part name, quantity, material, standard parts DIN 912 / DIN 125) Detail drawings for each part: bearing block, piston rod head, crank disc, crankshaft and more Scales from 1:1 to 5:1, threads, chamfers, general tolerances ISO 2768-mK Software: AutoCAD

Published Oct 27, 2026

in 2D to 3D Conversion Services AutoCAD Design Services 3D Models of Machine Parts

bill-of-materials assembly-drawing

Rendering Images
