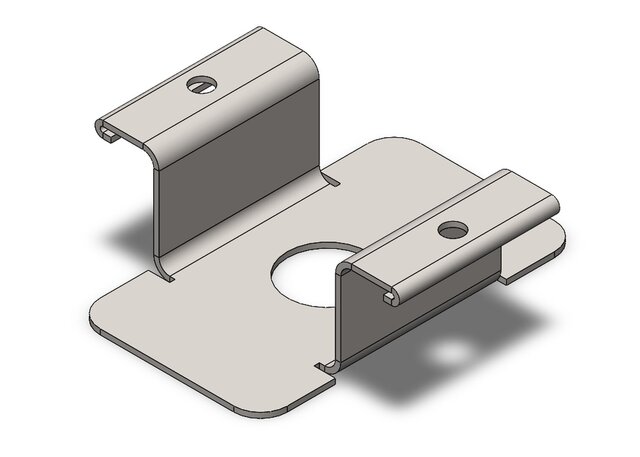

Specialized Channel Bracket

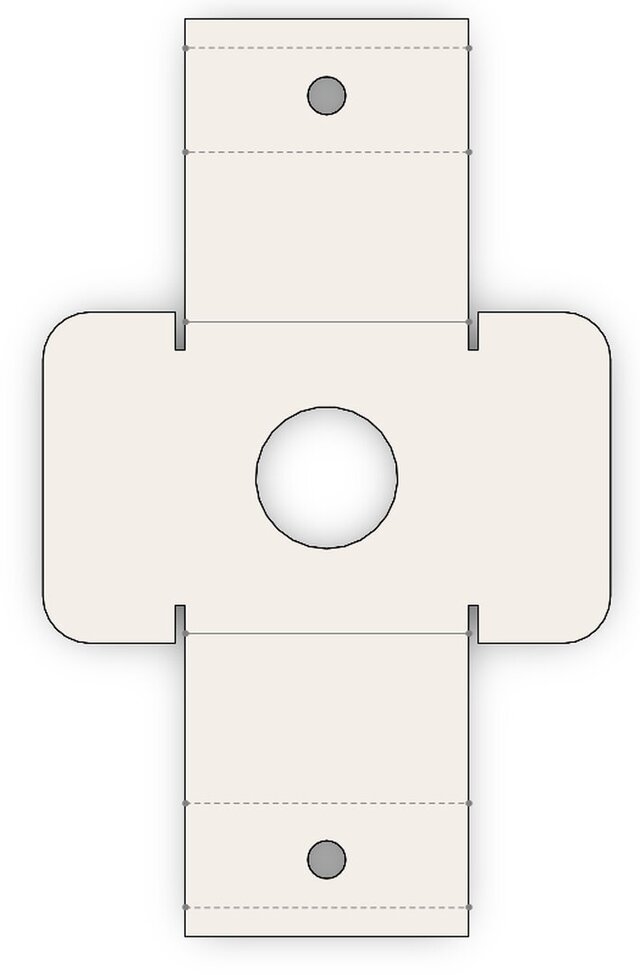

A specialized mounting channel that showcases advanced sheet metal finishing techniques. This model is a prime example of high-detail fabrication design.Technical Highlights:Hem Features: Demonstrates proficiency with the Hem Tool in SOLIDWORKS, utilizing rolled edges to increase local stiffness and eliminate sharp edges for safe handling.Symmetrical Flange Design: Features mirrored $Z$-bends that require precise neutral axis calculation to ensure the center hole remains perfectly aligned after fabrication.Corner Reliefs: Implements custom rectangular relief cuts at the bend junctions to ensure clean folds without material distortion.
