SolidWorks Sheet Metal Enclosure | Fabrication-Ready CAD & Drawings

Report

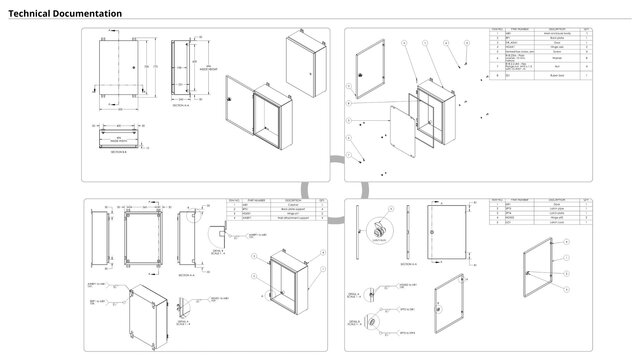

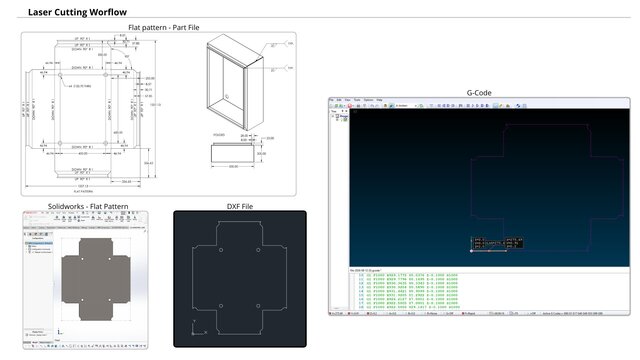

Sheet metal enclosure developed in SolidWorks with a fabrication-focused workflow. The project includes a complete assembly, individual sheet metal components, exploded views, BOM, flat patterns, bend information, and production drawings prepared for manufacturing review. The design was developed with attention to part organization, fastening strategy, manufacturability, and clear technical documentation. Scope: Product design, sheet metal CAD, assembly design, fabrication drawings, BOM, flat patterns, and production documentation.
Published
in SolidWorks Design Services Sheet Metal Design Fabrication Drawings Services
solidworks product-design industrial-design sheet-metal-fabrication cad-modeling sheet-metal manufacturing-drawings fabrication-drawings design-for-manufacturing enclosure-design metal-fabrication flat-pattern
Rendering Images
