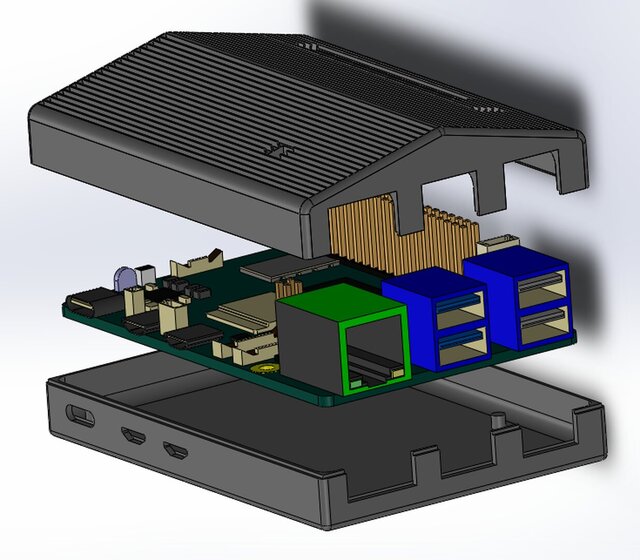

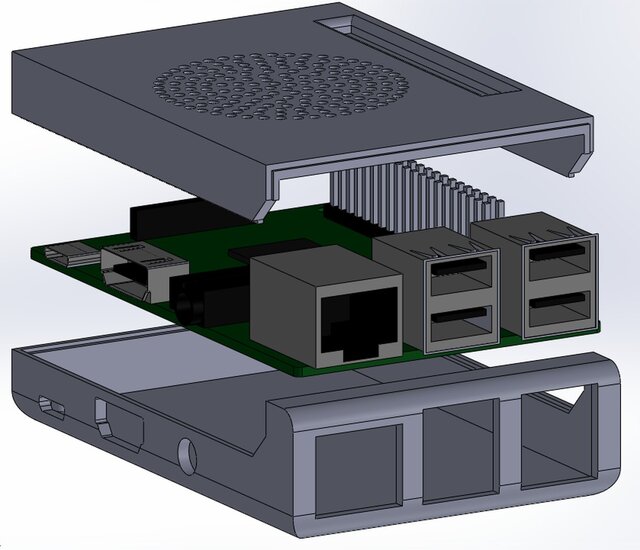

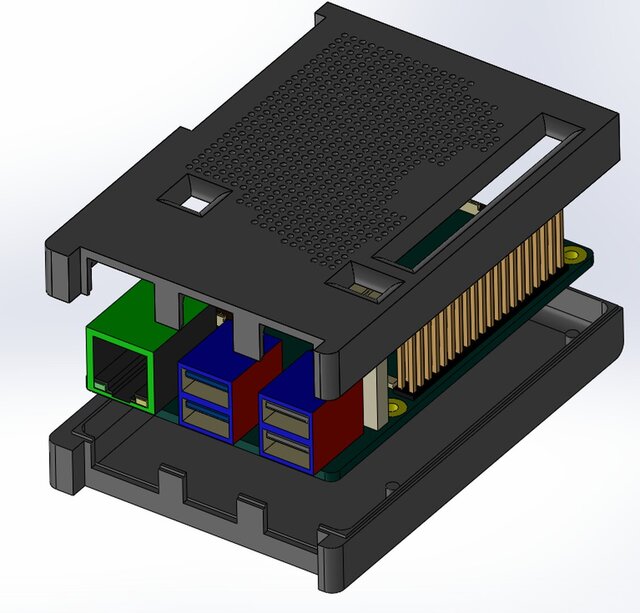

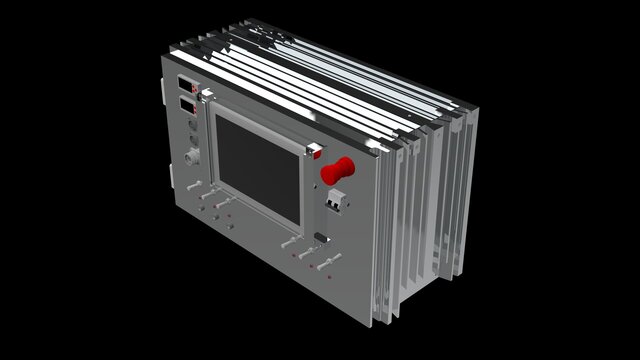

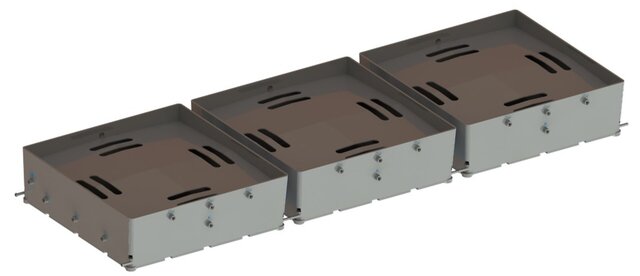

Snap-Fit Designs of IOT/Medical/Electronic Enclosures, Sheet Metal CAD Design, 2D Drawings, 3D Modeling from SKetch/Concept: laser cutting and CNC Machining

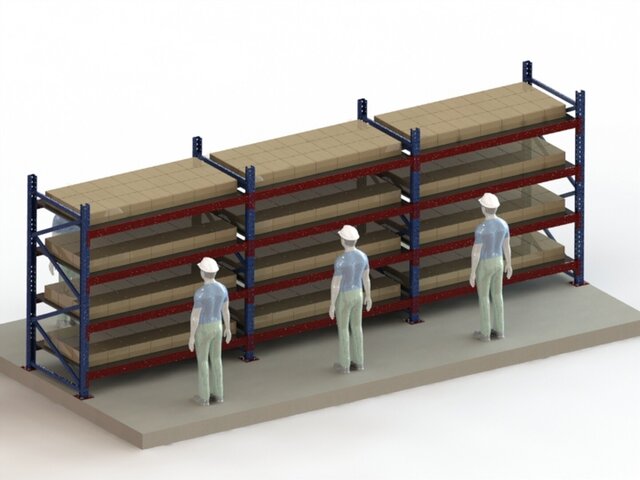

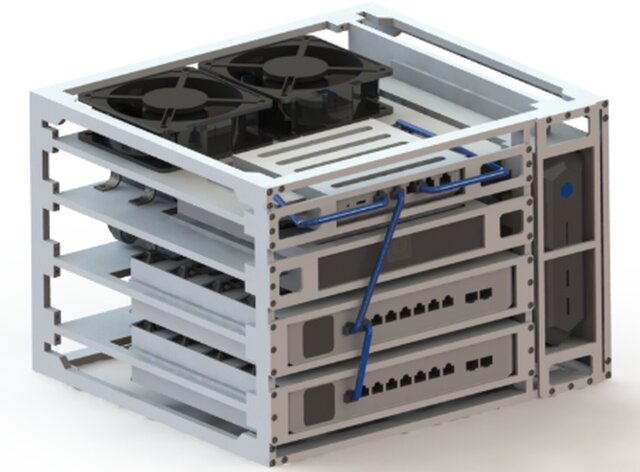

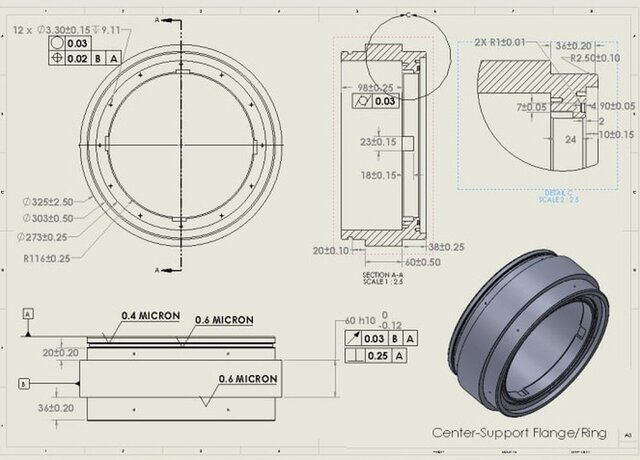

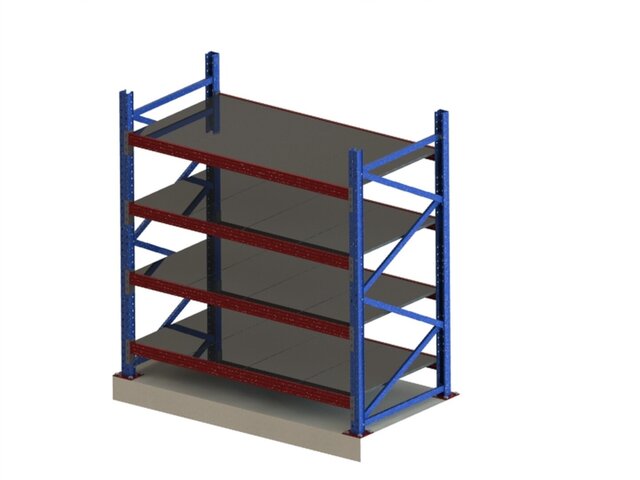

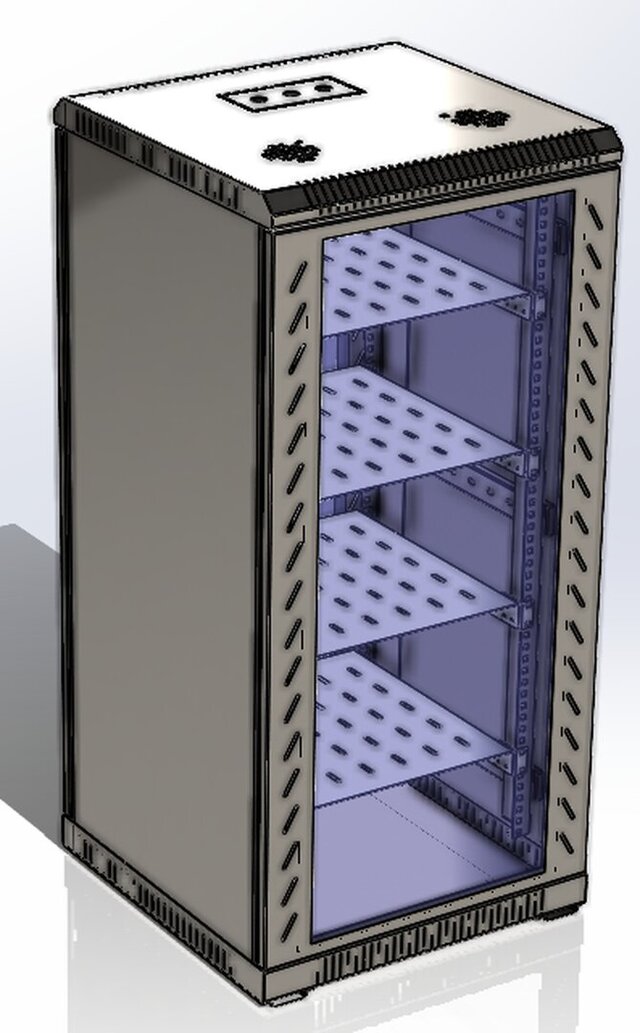

•Design for manufacturing, injection Molding and 3D Printing •Product designing such as IOT Devices, Electronic Enclosures, medical devices •3D Modeling of Complete mechanical systems/assemblies; their design evaluation in term machining/sheet-metal costing; • Assembly Visualization (Cost, WBS, Animated Exploded View, BOM, Description) • 2D/3D Manufacturing drawings with geometric detailing and tolerancing •Sheet Metal design and CNC Laser machining • Design Evaluation and Cost Analysis 1.Additive Manufacturing with 3 D Printing: ISO 5910 2Injection Molding Part Design, Draft angles, wall thickness, corners: ISO10275, ASTMD3575 standards 3Mold Design: Gate design, venting, cooling system ISO12778 4Geometric Tolerances: DIN 16742 ,ISO20457, ISO1101 5Thermal expansion, shrinkage, ISO 2577, ISO294 Surface Finish: SPI, ISO1302, 6.Industrial Racks, Modular housing, sealed Enclosures,
