SINGLE CLUTCH PLATE MODEL

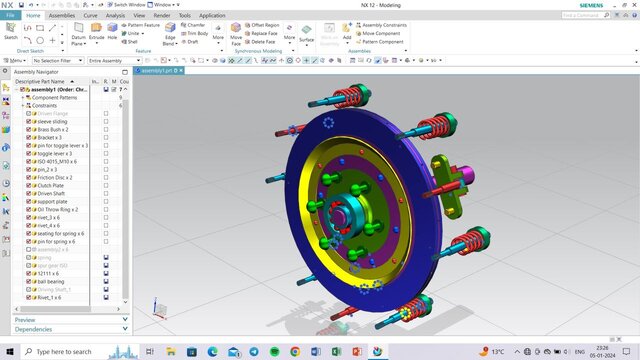

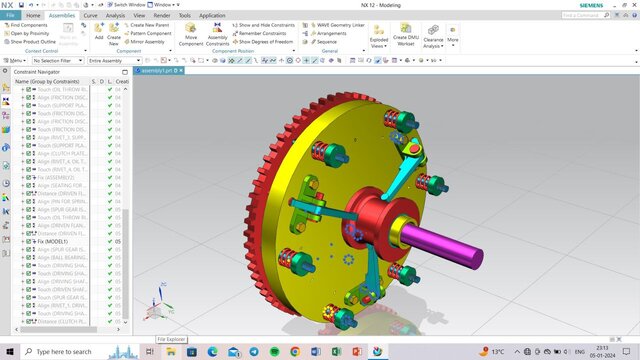

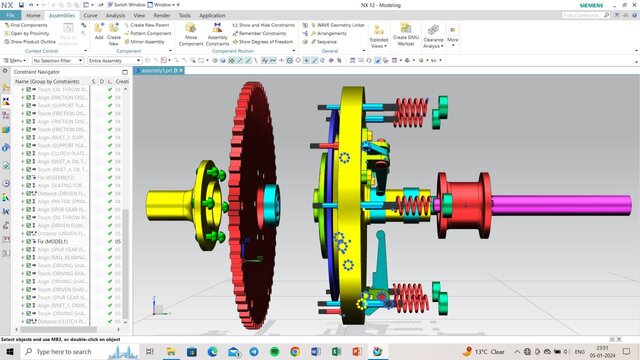

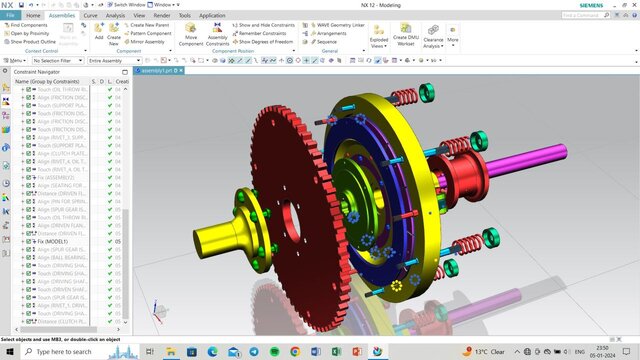

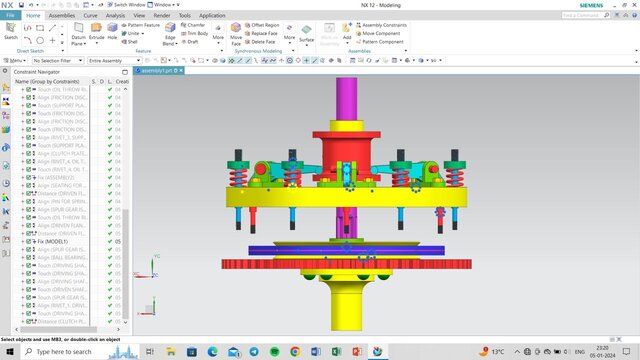

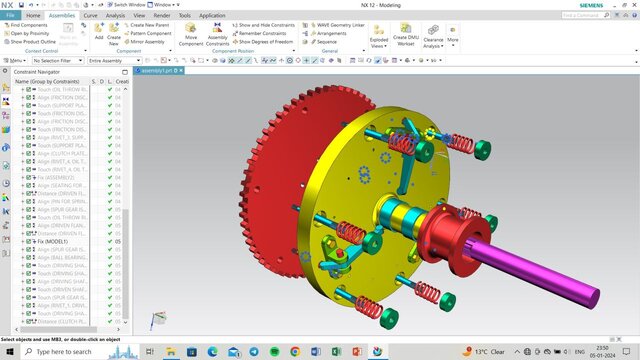

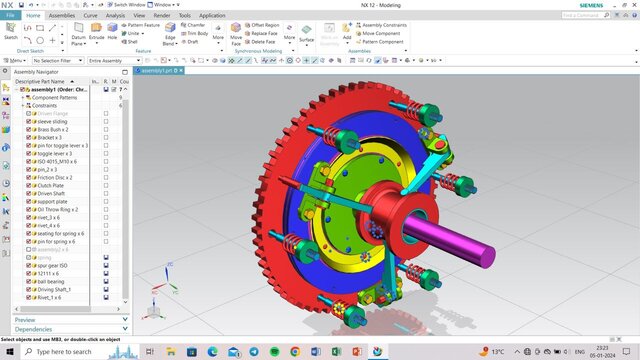

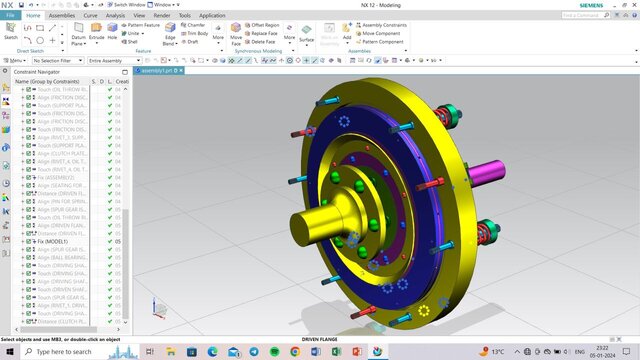

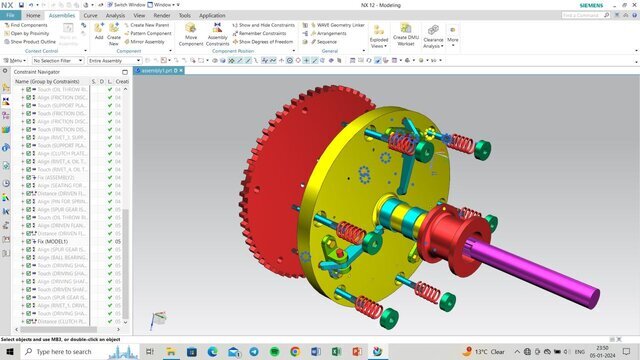

Hii friends, I am thrilled to share the design of a single plate clutch in SIMENS NX This assembly was made using the bottom-up approach Parts Used in these projects are: 1. Ball Bearing 2. Bracket 3. Brass Bush 4. Clutch Plate 5. Driven Flange 6. Driven Shaft 7. Friction Disc 8. ISO_4014 M10 Bolt 9. Oil Throw Ring 10. Pin For Spring 11. Pin For Toggle Lever 12. Pin 13. Rivet 14. Seating For Spring 15. Sleeve Sliding 16. Spring 17. Spur Gear 18. Support Plate 19. Toggle Lever Project Description: This is the type of disc clutch, it uses a single disc called clutch plate. The flywheel drives the single disc which, in turns, rotates the gear box shaft and the transmission shaft. A single plate clutch consists of a flywheel, spring and the pressure plate assembly. The flywheel is connected to the engine shaft act as a driving member. The clutch plate is a steel disc. It is connected to the spline spring through the spring. The spleen shaft which is also a gear box shaft, slides in the hub. There is friction lining on the both side of the steel disc. The lining is either riveted and binded on the steel disc. The spring are called tensional spring which absorb the undesirable torsional vibration. The pressure plate assembly consist of the pressure plate, coil spring or diaphragm spring, release lever, operational figure and the cover. The pressure plate consists of high tensile grey iron. It is a disc which exert pressure on the clutch plate to keep it engage to the flywheel. The pressure is exerted with the help of the coil spring. I hope you like this machine drawing made in SIMENS NX Thanks for the love and support 😍
