Shell and Tube Heat Exchanger

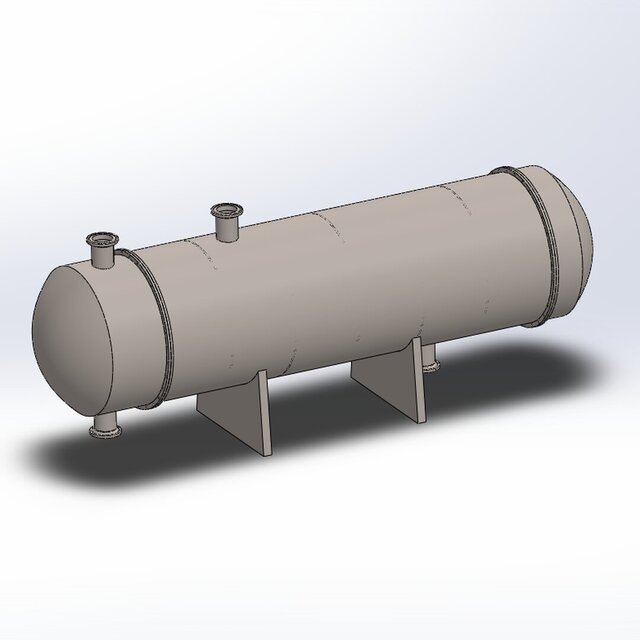

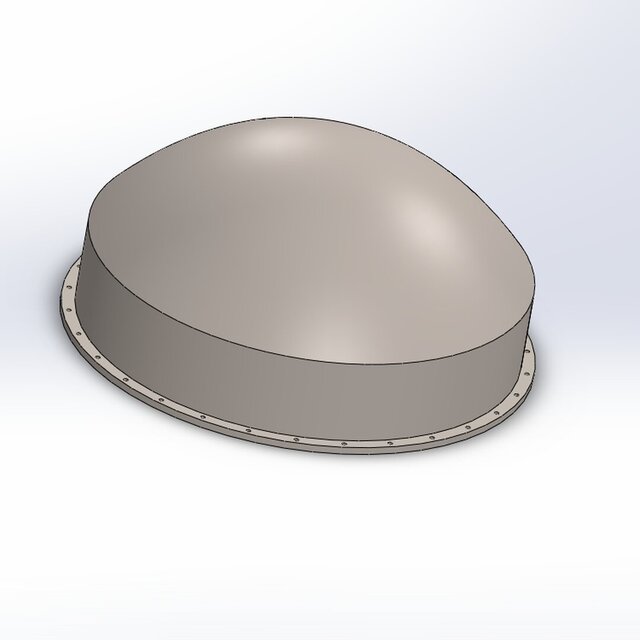

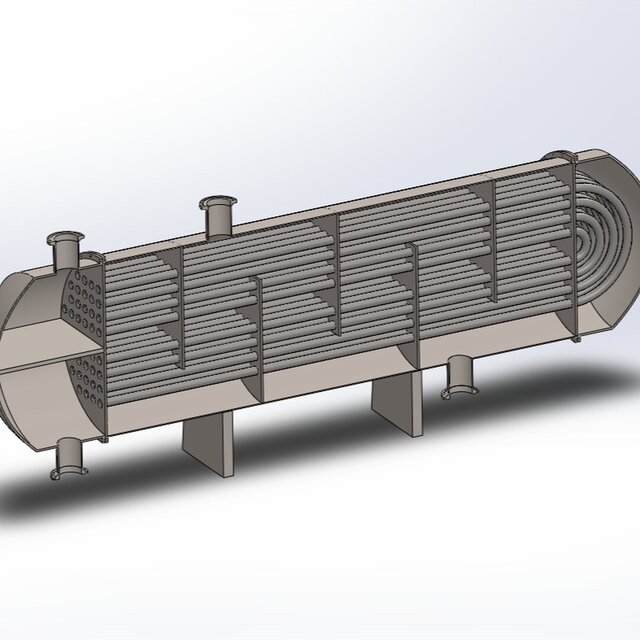

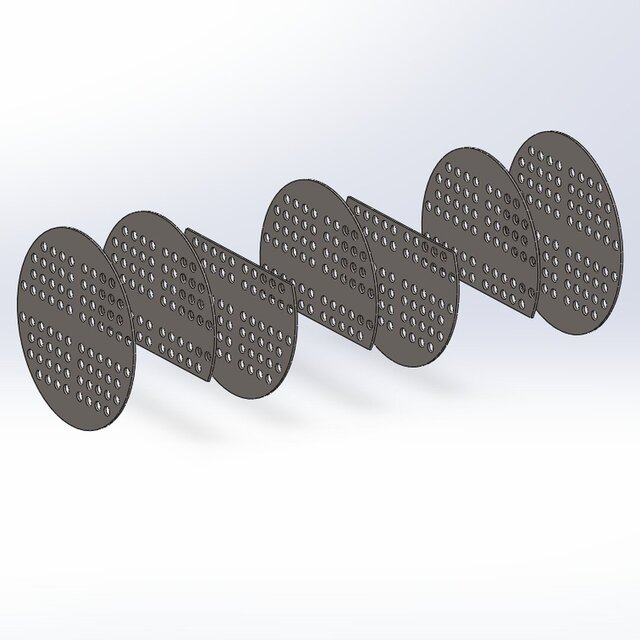

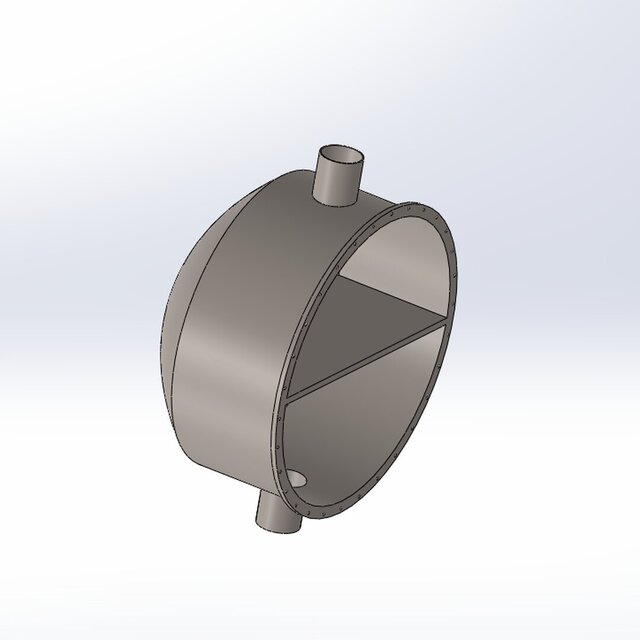

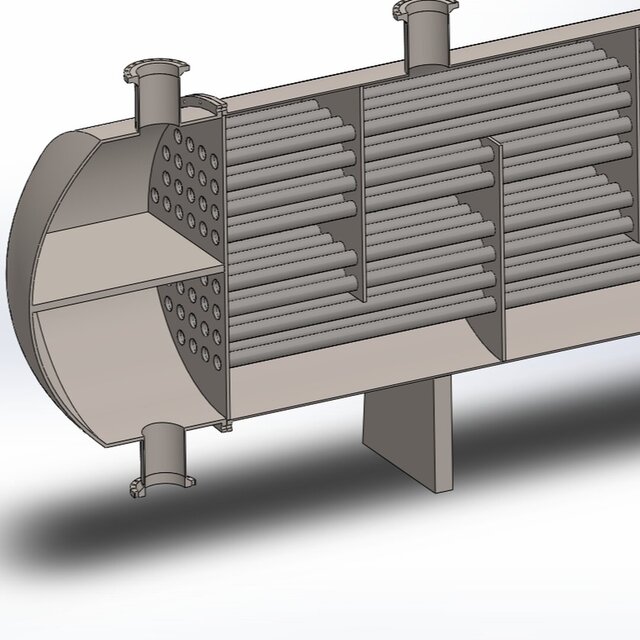

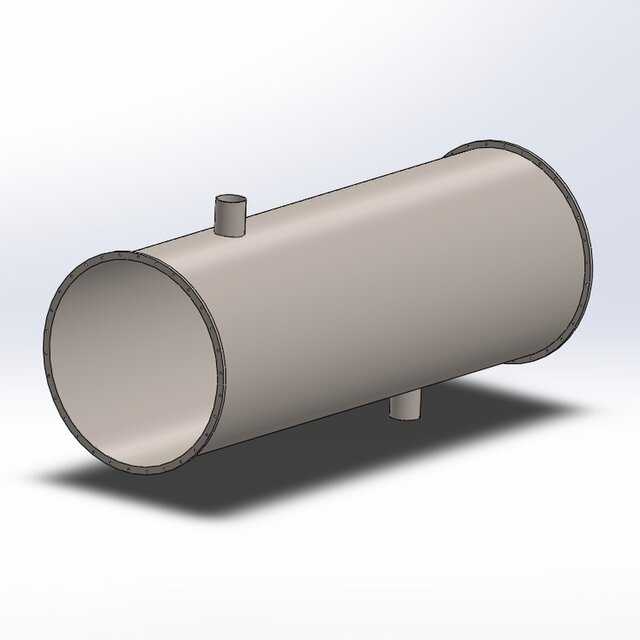

This is a professionally engineered Shell and Tube Heat Exchanger 3D assembly created in SolidWorks. The model features a complete exterior pressure vessel shell alongside a fully detailed internal cross-section showcasing the tube bundle, segmental baffles, and tube sheets. Key Features: Detailed internal geometry: Accurately modeled tube bundle, baffle plates, and pass partitions engineered for optimized fluid routing. Industrial-grade exterior: Features standard shell-side and tube-side inlet/outlet nozzles with flanges, end bonnets, and heavy-duty saddle supports. Sectional inspection ready: Internals are fully organized and constrained to allow for clear cutaway views and manufacturing inspection. Universal STEP file format for seamless integration into larger plant or mechanical layouts. I can also provide: Fluid dynamics (CFD) and thermal analysis utilizing ANSYS 2D technical manufacturing layouts and pressure vessel drafting High-quality photorealistic industrial renders Custom modifications as per client pressure, flow, and spatial requirements Feel free to contact me for custom industrial equipment design, thermodynamic systems, or complex mechanical assembly projects.
