Sheet-Metal Z & C Profile Fabrication Drawings

Report

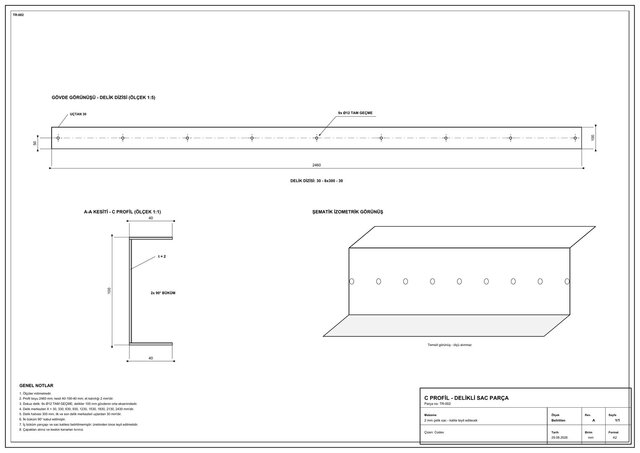

Production-ready technical drawings and visualizations for custom Z- and C-profile sheet-metal parts. The work includes complete dimensions, bend geometry, equal hole spacing, Ø12 mm through-holes, material thickness notes, and workshop-ready PDF/STEP deliverables prepared from client sketches.
Published
in Sheet Metal Design Manufacturing Drawings Steel Detailing Services
autocad solidworks sheet-metal technical-drawing steel-fabrication
Rendering Images
