This project showcases the design of a manufacturing-ready industrial sheet metal enclosure created in SolidWorks. The enclosure was developed for laser cutting and CNC bending, with proper bend allowances, flat patterns, ventilation slots, mounting features, and fastening points. The final design is optimized for fabrication and includes a complete 3D assembly and production-ready engineering drawings. Deliverables: • SolidWorks Part & Assembly • STEP File • DXF Flat Pattern • PDF Technical Drawings • Manufacturing Documentation
Published
in SolidWorks Design Services Sheet Metal Design Mechanical CAD Design
sheetmetal product-design mechanical-design solidwork dfm cad-model enclosure-design flat-pattern-generation dfm-manufacturing

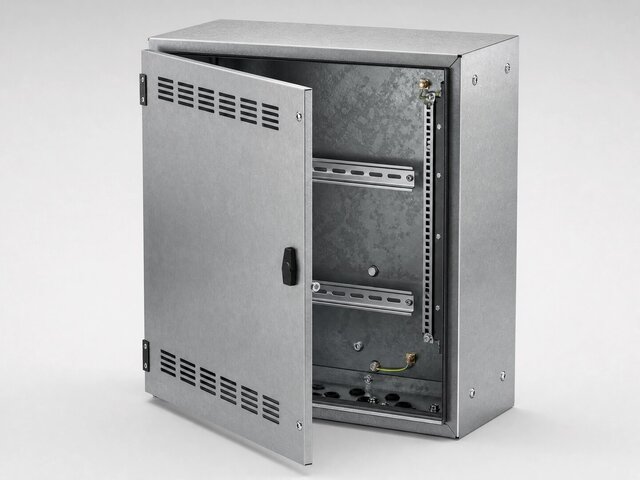

Rendering Images
