Sheet Metal Electronics Enclosure & Ventilation CAD Design

Report

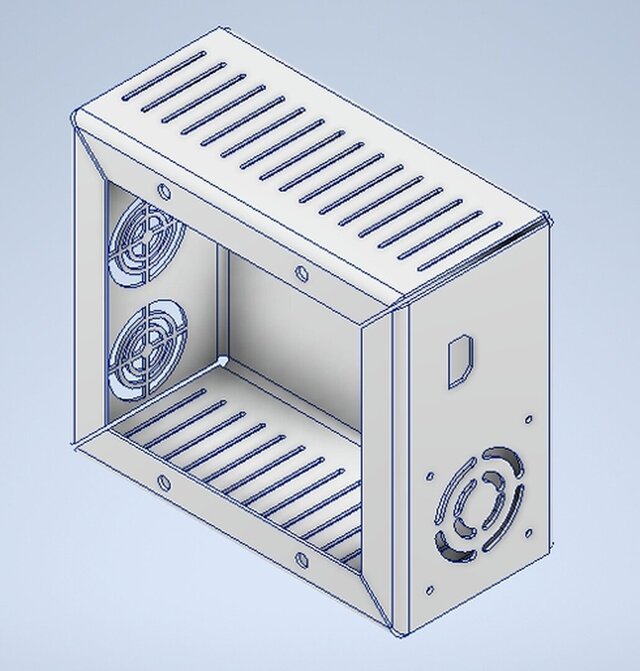

Designed a precise 170x150x80mm sheet metal electronics enclosure using Autodesk Inventor. The model features custom fan ventilation grilles, a perforated grid pattern, and accurate bend parameters (1.5mm AISI 1020 steel, 3mm bend radius, 0.5 K-factor) optimized for CNC laser cutting and sheet metal bending. Delivered flat patterns (DXF) ready for manufacturing.
