Steering Knuckle

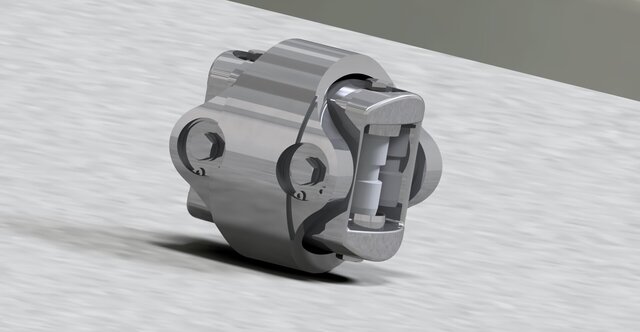

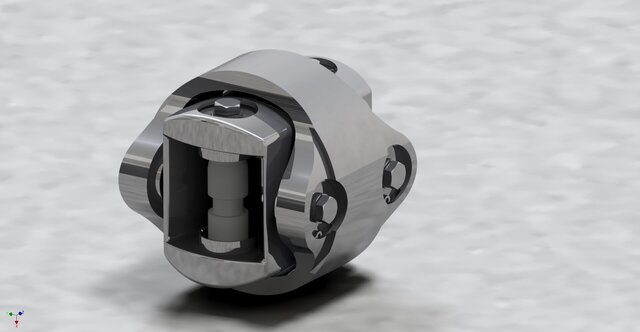

Steering Knuckle – Tractor Front Axle (Massey Ferguson Type) This model represents a detailed 3D design of a steering knuckle (pivot joint) used on the front axle of a Massey Ferguson–type agricultural tractor. The component is modeled with full mechanical accuracy and is suitable for use in: assembly documentation, finite element analysis (FEA), manufacturing drawings, reverse-engineering projects. Key Features: Precise geometry of the kingpin bore, spindle seat, and steering arm interface Correct dimensional relationships for realistic steering dynamics Fillets, chamfers, and structural reinforcements modeled according to typical OEM design Clean and optimized CAD structure suitable for further modifications Ready for export to commonly used formats (STEP, IGES, STL, etc.)
