Server Switch Housing – Sheet Metal Design

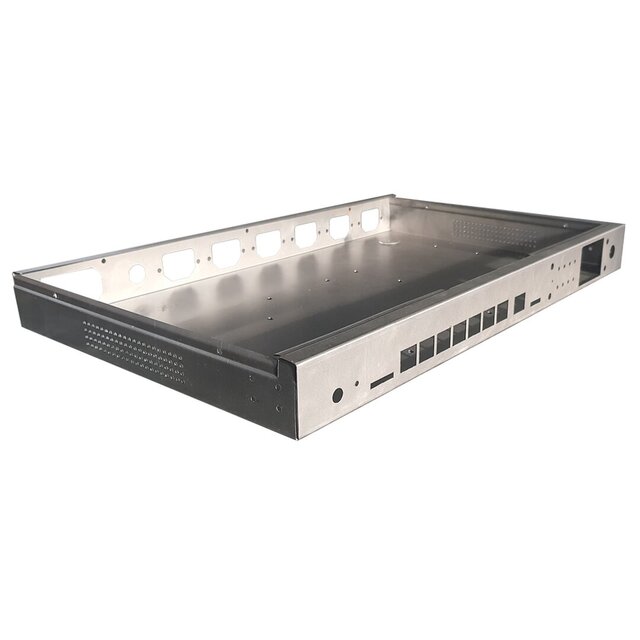

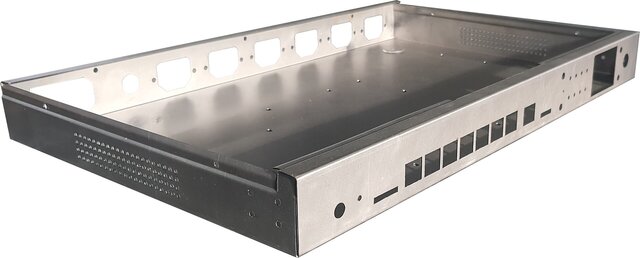

This is a precision-designed sheet metal enclosure for an industrial-grade server switch. The part is optimized for laser cutting and CNC bending using 1 mm thick steel sheet with a 0.6 mm bend radius. The design includes ventilation slots, cable access ports, fastener locations, and mounting flanges. All edges were deburred virtually, and the design follows DFM (Design for Manufacturing) principles to ensure easy assembly and durability. The final output includes the 3D model, 2D manufacturing drawing, and flat pattern for
