semi-circular panoramic glass elevator
Just completed the mechanical design of a semi-circular panoramic glass elevator.
This project combines elegant architecture with reliable engineering, delivering a spacious full-glass cabin and smooth traction performance.
Project Specifications
+ Capacity: 750 kg
+ Speed: 90 m/min
+ 6 Stops

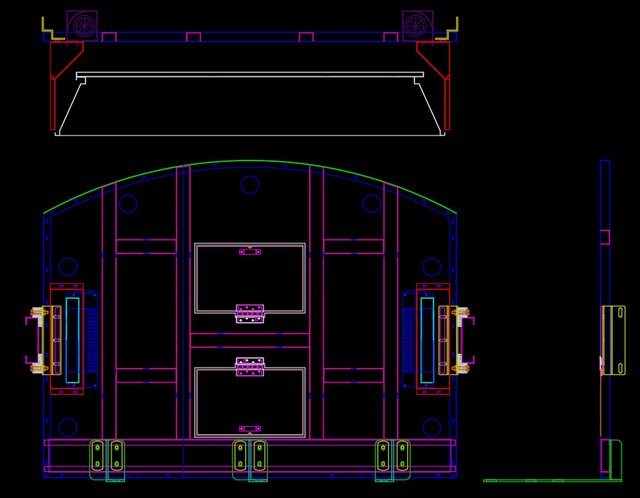

+ Full Glass Semi-Circular Cabin

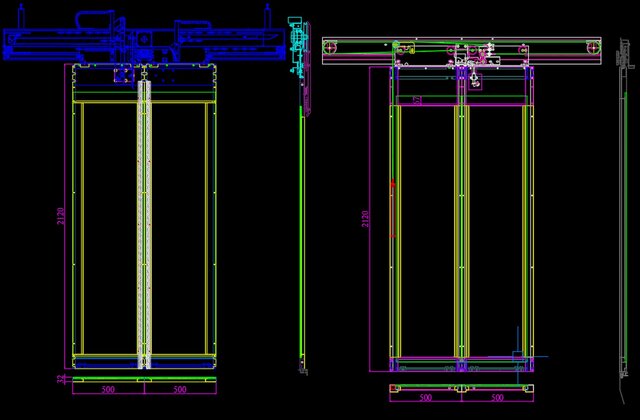

+ Center-Opening Door (CO): 950 × 2100 mm

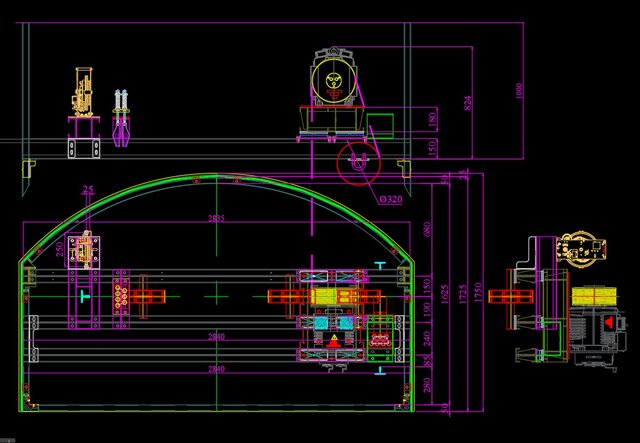

Drive System
+ SICOR SG40 Traction Machine – 9.8 kW

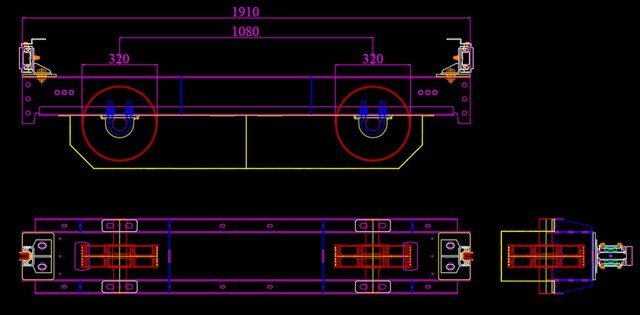

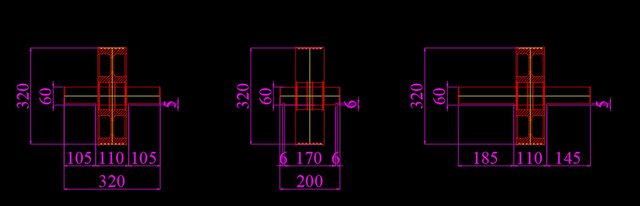

+ Drive Sheave: Ø320 mm
+ 7 × Ø8 mm Steel Wire Ropes

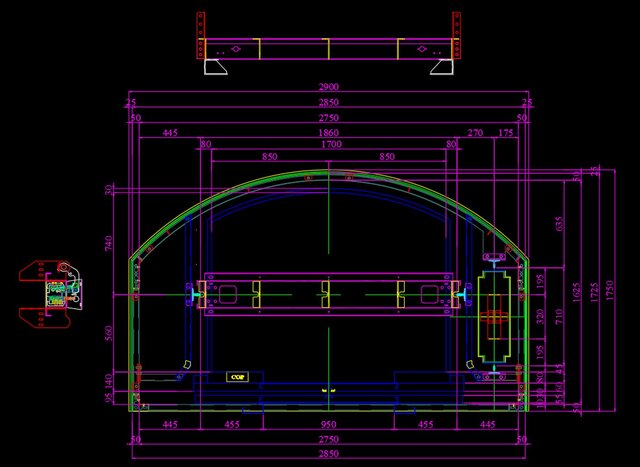

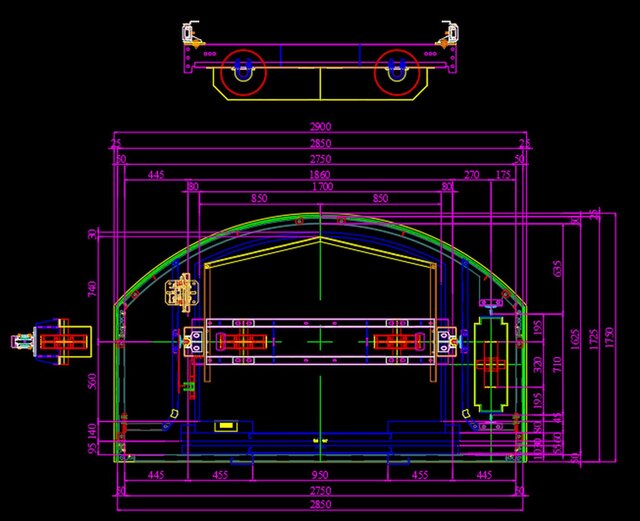

Installation Dimensions
+ Pit Depth: 1420 mm
+ Overhead (OH): 3610 + 2300 mm

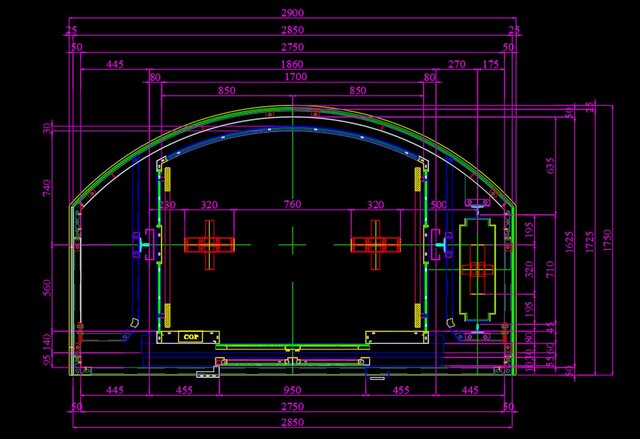

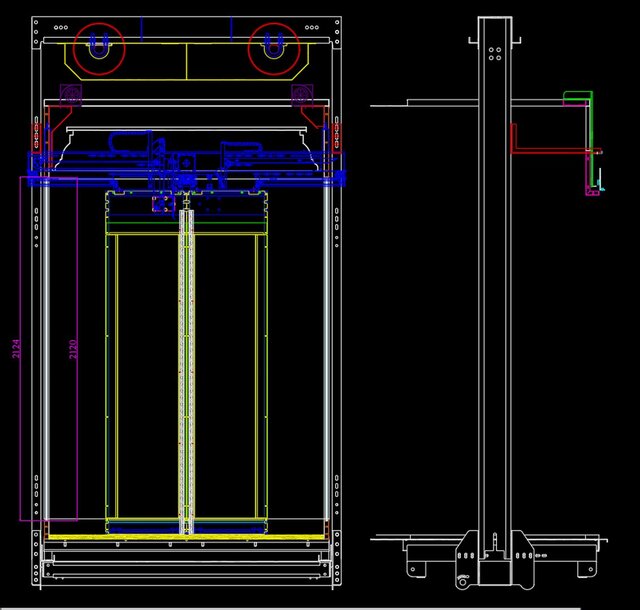

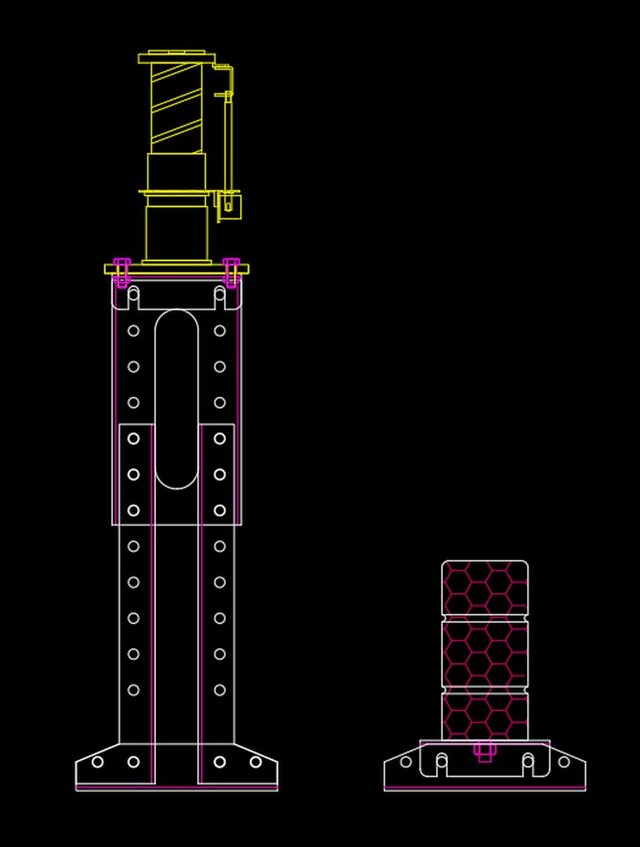

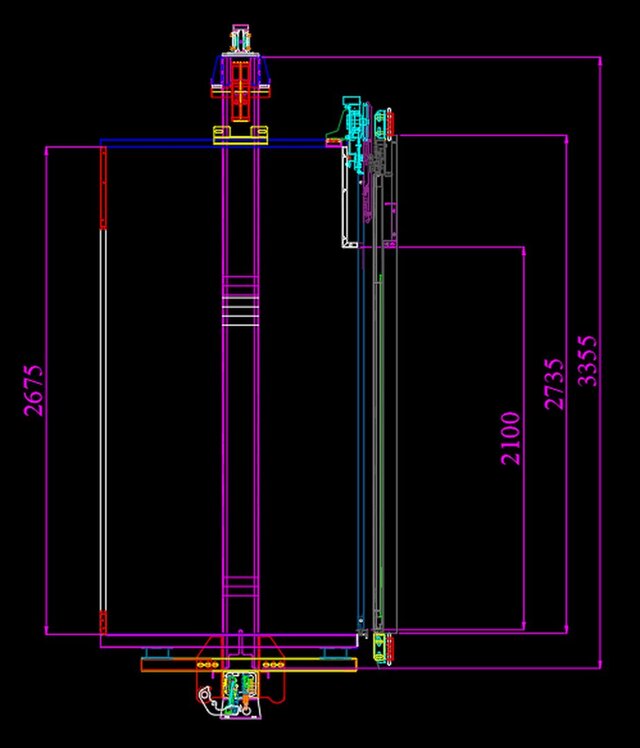

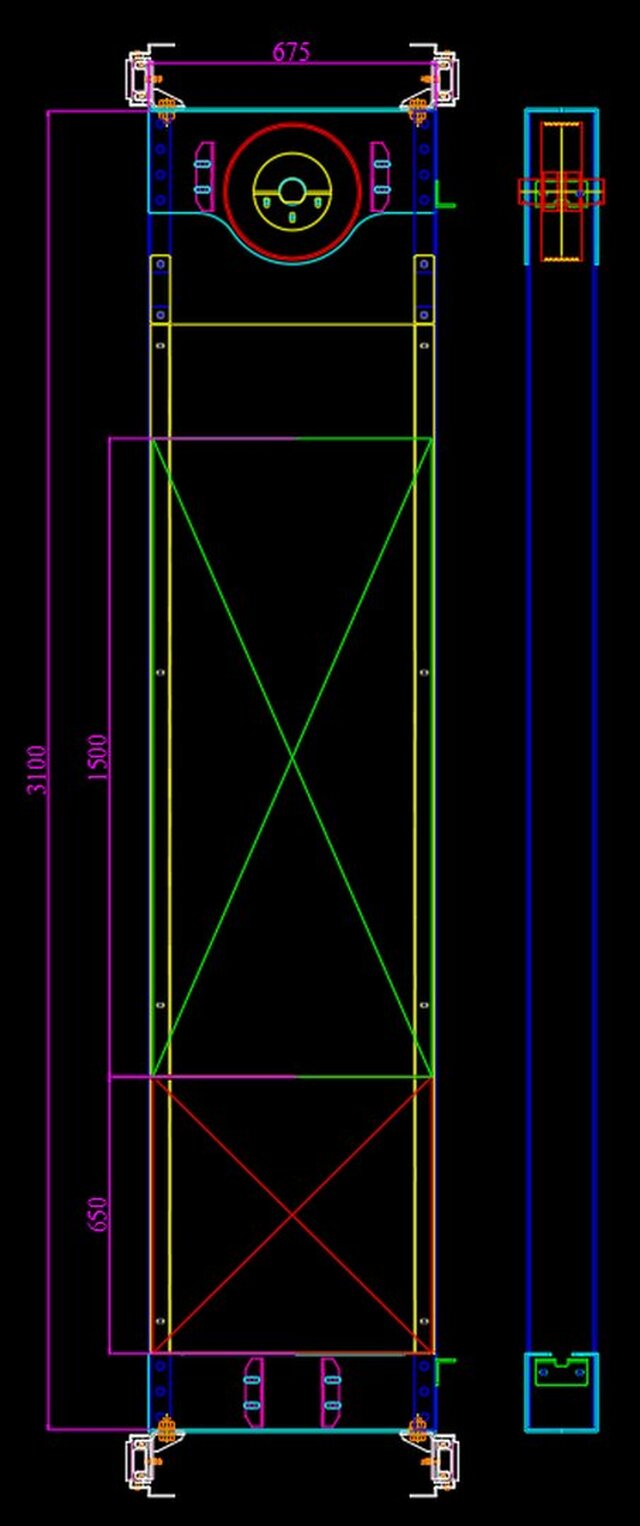

I specialize in custom elevator mechanical design—from 3D concept modeling to complete manufacturing drawings, including the cabin, shaft structure, counterweight system, machine layout, and installation details.
Every project is tailored to meet both architectural vision and manufacturing requirements.
Feel free to connect if you're looking for a reliable partner for custom elevator design projects.
