Screw Conveyor & Power Transmission – Complete CAD Package

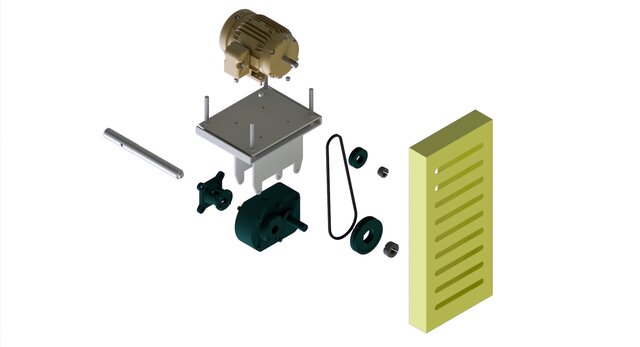

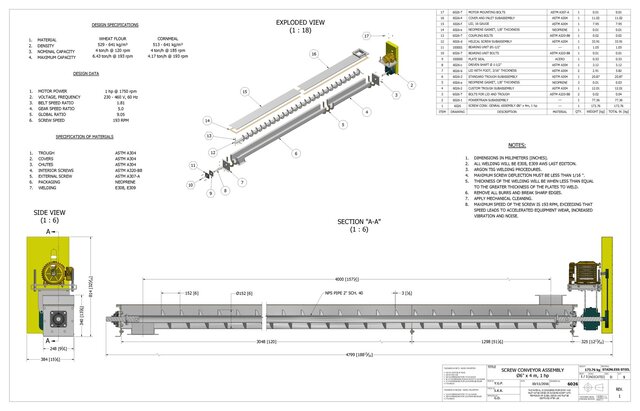

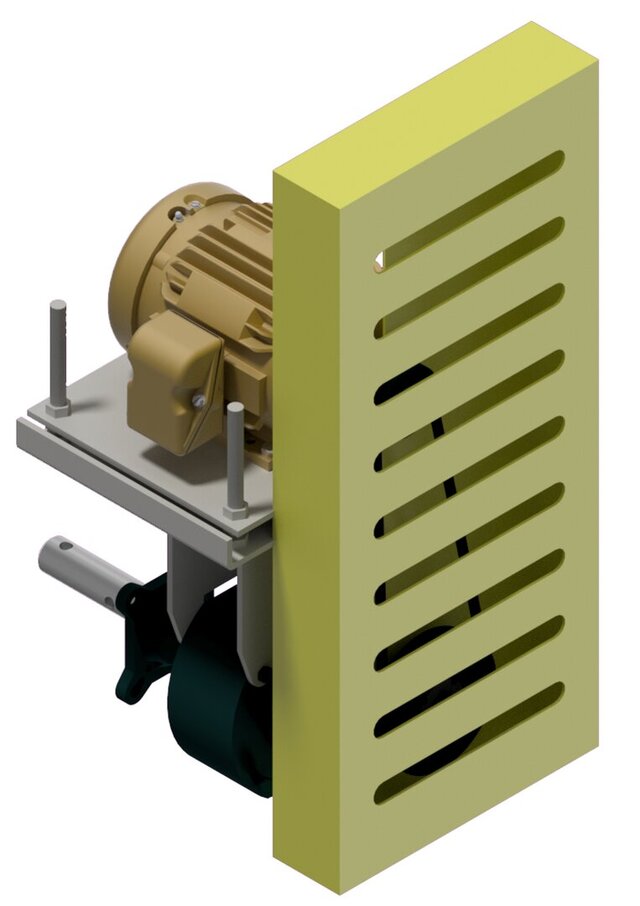

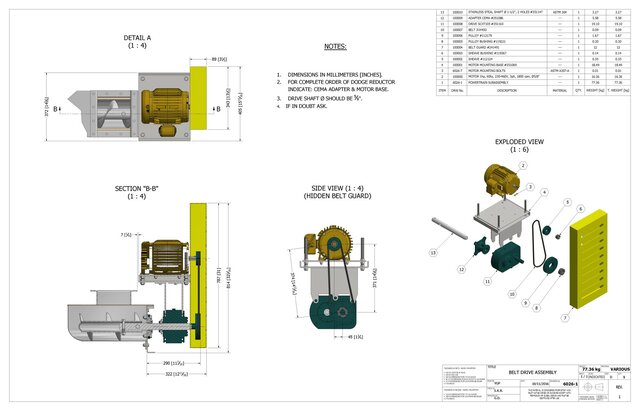

Mechanical design and detailed CAD documentation for an industrial screw conveyor and its power-transmission system. The project included 3D assembly modeling, conveyor components, screw/shaft assemblies, motor and drive components, belt and pulley arrangements, guards, bearings, fabricated supports, and related mechanical hardware. Production documentation included general assembly drawings, exploded views, BOMs, material specifications, sections, dimensions, component identification, and manufacturing notes. The drawing package was developed with fabrication and assembly requirements in mind rather than as presentation-only CAD.
