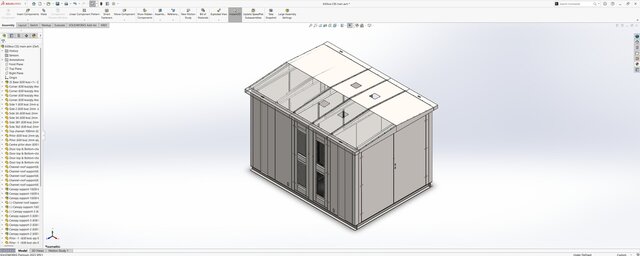

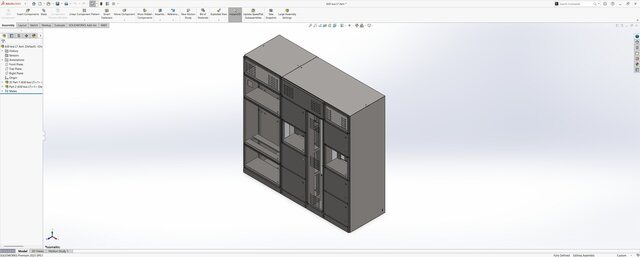

Compact Secondary Substation (CSS) and Low Tension panel (LT)

Report
Developed 2D and 3D production-ready designs in SolidWorks and AutoCAD with engineering standards and manufacturing constraints.Performed nesting to minimize waste and optimize material utilization, used CypCut for laser cutting preparation, and CypNest for advanced nesting optimization and layout planning.
Published
in 3D Design Services Sheet Metal Design SolidWorks Engineering Services
autocad nesting electrical-engineering-design-services solid-works-design laser-curtting solidwork-assembly css cypcut cyp-nest
Rendering Images
