Screen Cabinet

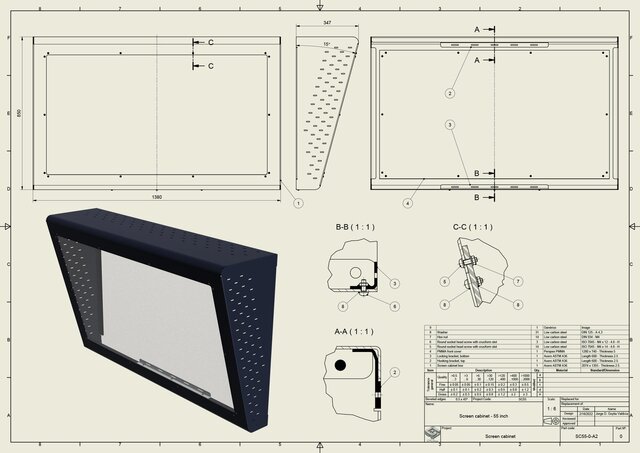

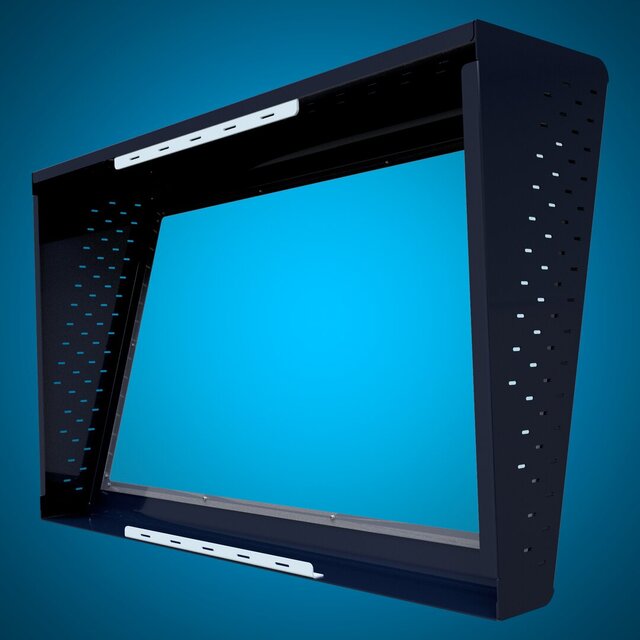

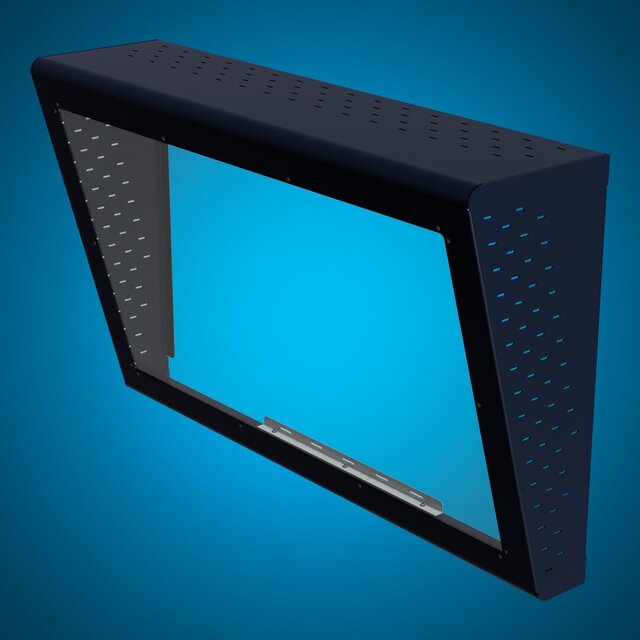

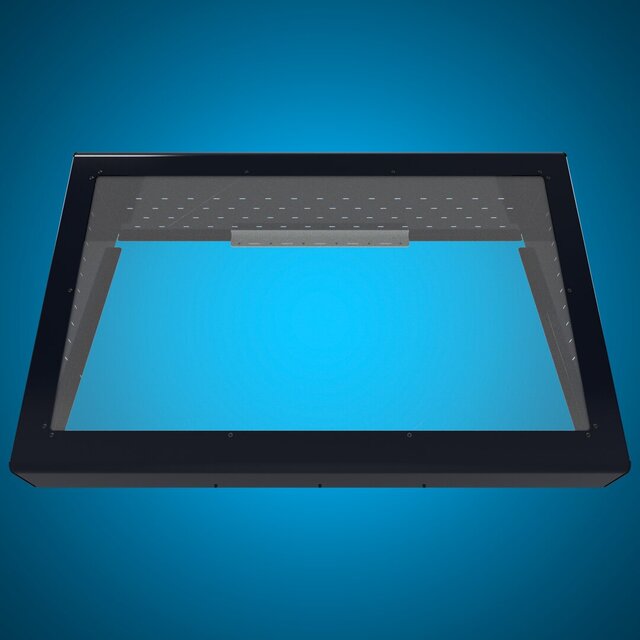

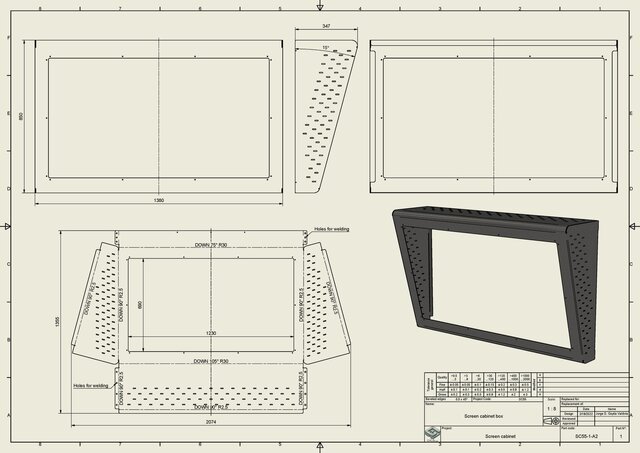

Screen Cabinet, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches distributed across different planes within a master part file, serving as the foundational geometry for all components and sub-assemblies throughout the model. Additionally, iLogic was implemented to generate configurable variables and a dialog box with customization options. This robust enclosure features perforated side panels for optimal ventilation, protecting screens from physical damage, dust, and environmental contaminants while maintaining secure installation. The parametric workflow ensures design consistency, facilitates modifications, and enables efficient customization for various screen sizes and mounting configurations. Ideal for industrial control rooms, transportation hubs, or commercial displays requiring reliable protection and professional aesthetics with integrated cable management and easy maintenance access.
