RP2040 Clock Project

Report

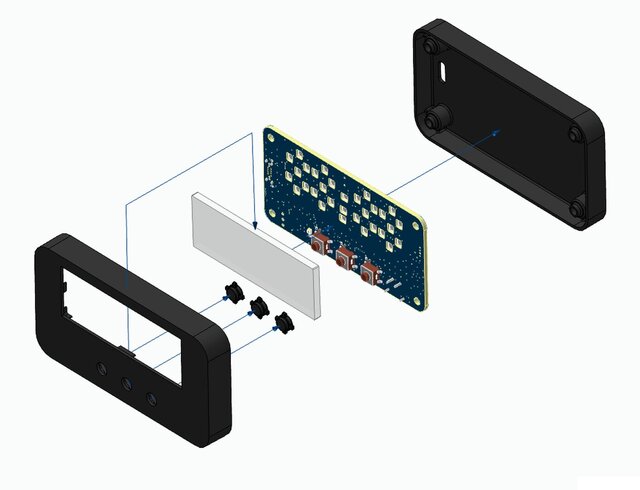

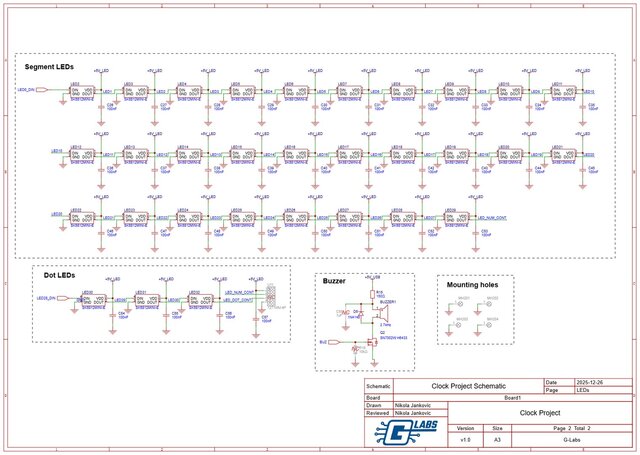

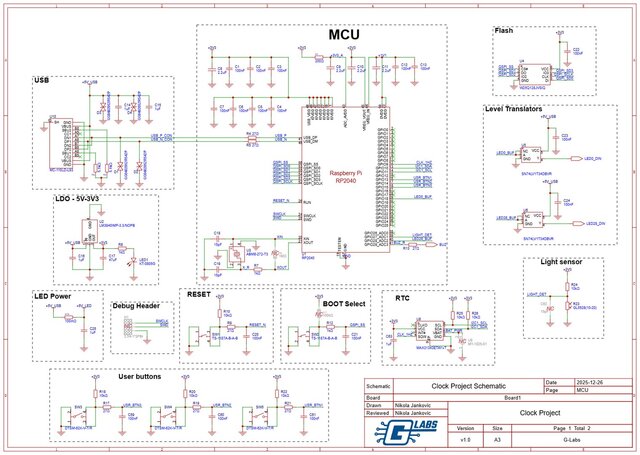

Clock Project based around Raspberry Pi RP2040 microcontroller. Project includes: -External Flash; -RTC Chip; -Light Sensor; -Adressable LEDs; -Buzzer; -User-programmable buttons; -Voltage translators. Enclosure is design with injection molding in mind.
Published
in PCB Design Services Electronic Enclosures Design Electronics Design Service
pcb electronic-devices plastic-enclosure electronic-design pcb-design pcb-enclosure injection-mold-design enclosure-design pcb-layout embedded-system electronic-enclosure-design electronic-engineering schematic-design embedded-systems embedded-electronics pcb-enclosure-design hardware-design

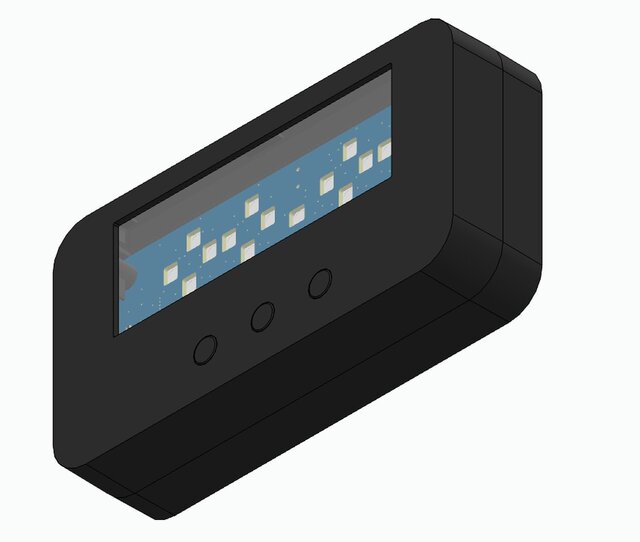

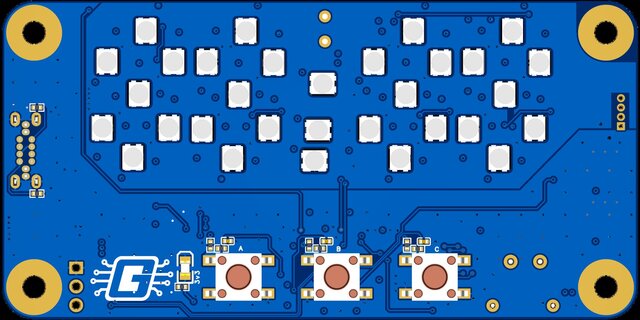

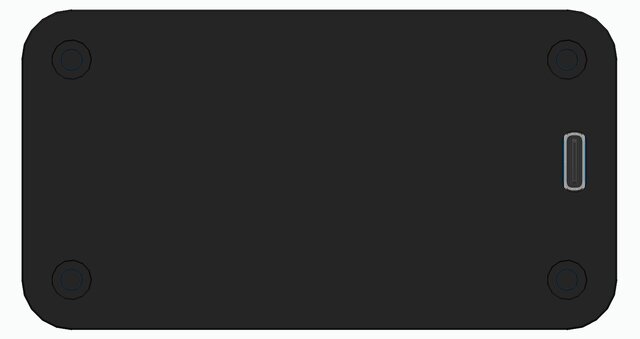

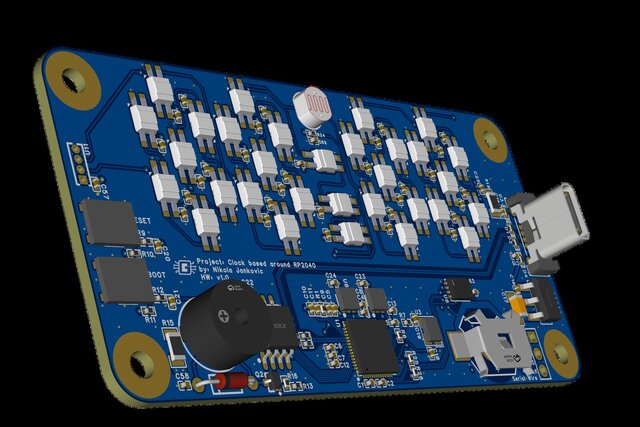

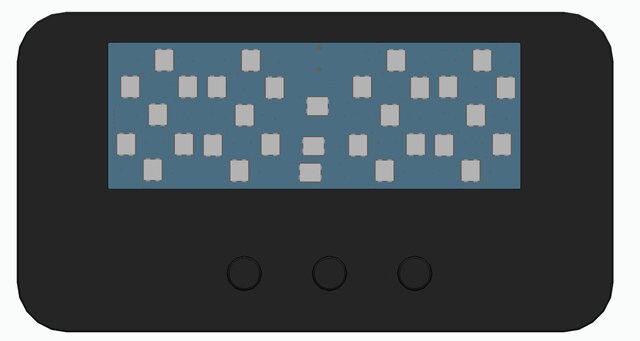

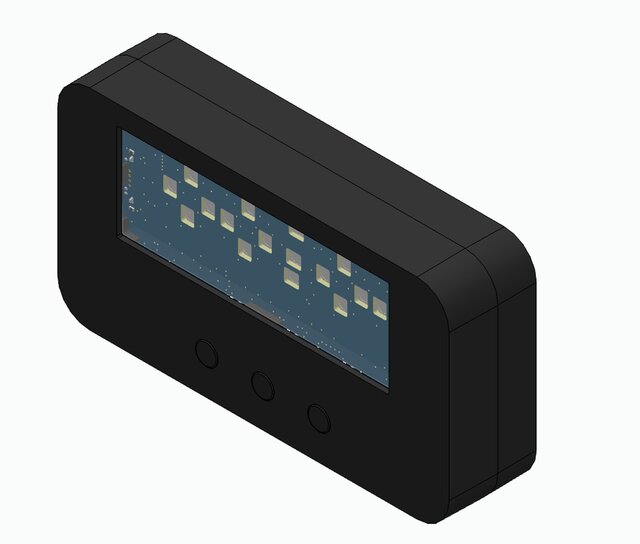

Rendering Images
