Rotating Wardrobe & Multi-Tier Shelving System – Complete Manufacturing & Assembly Drawings

Report

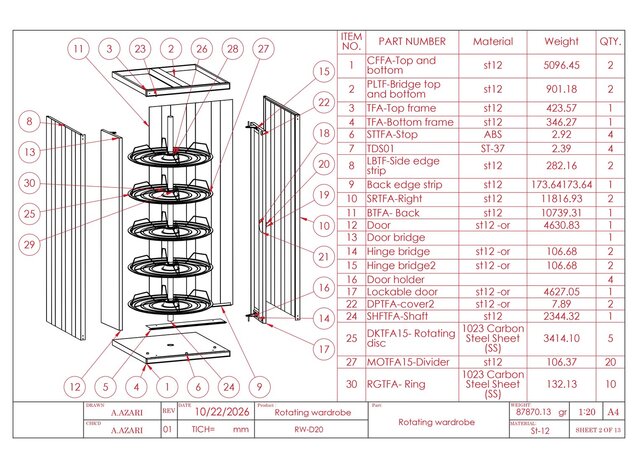

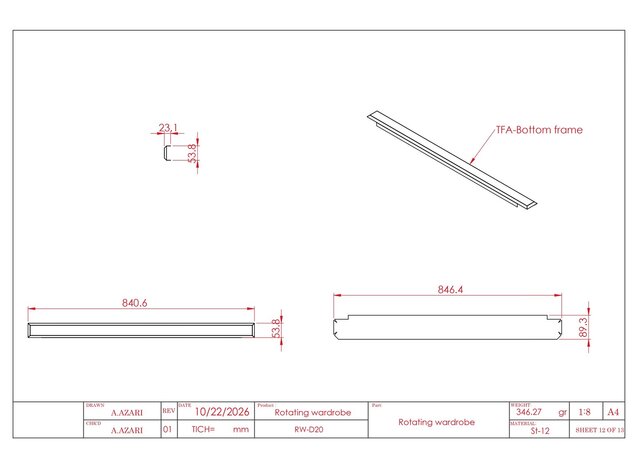

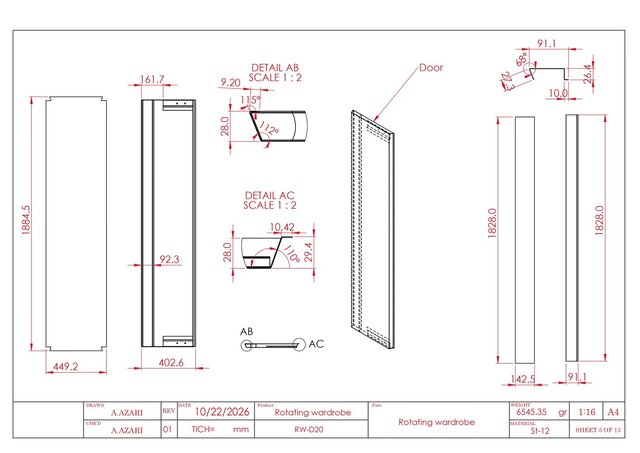

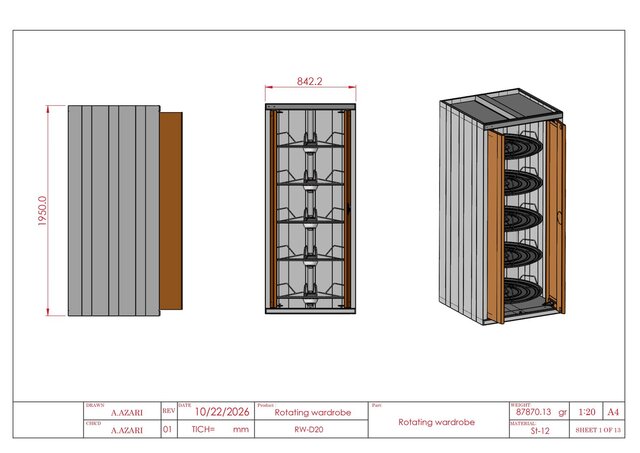

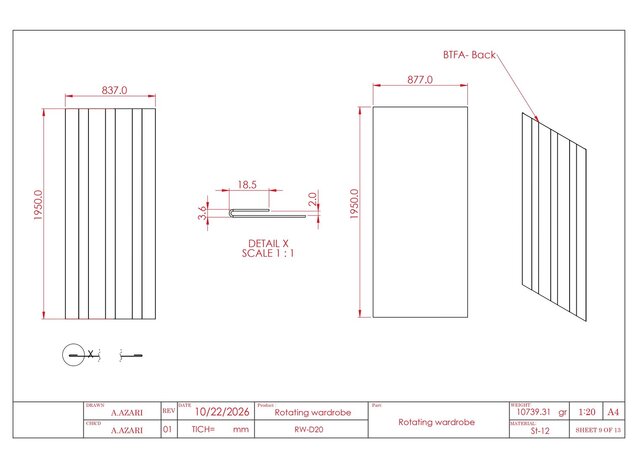

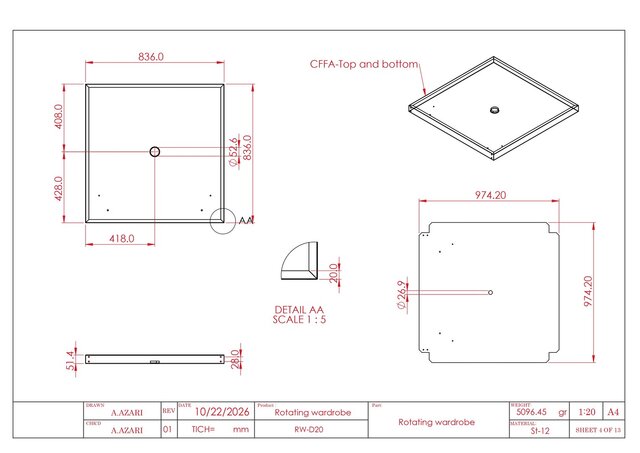

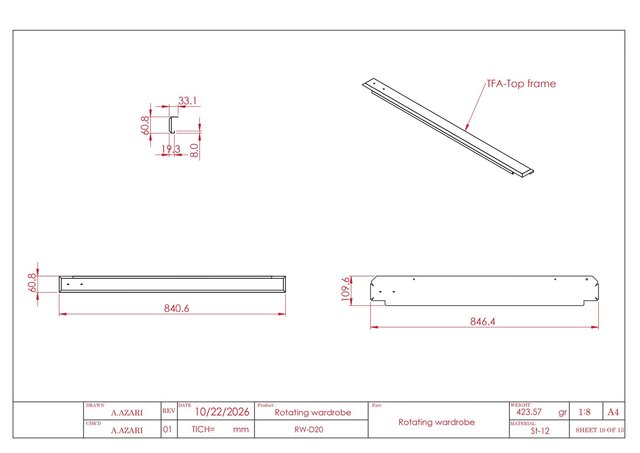

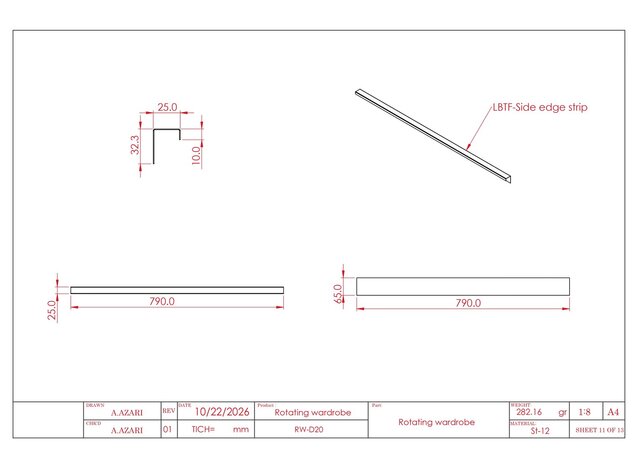

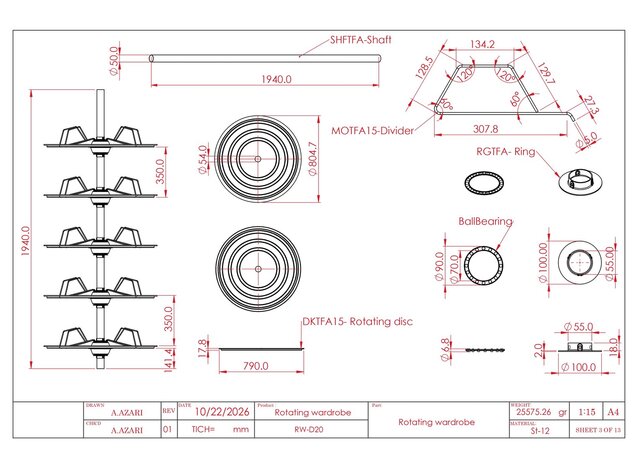

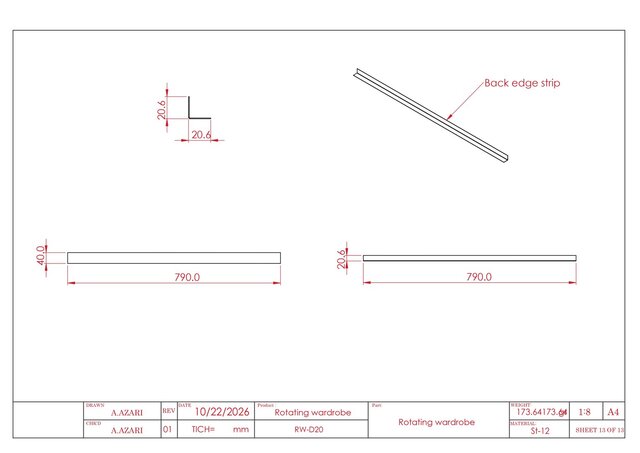

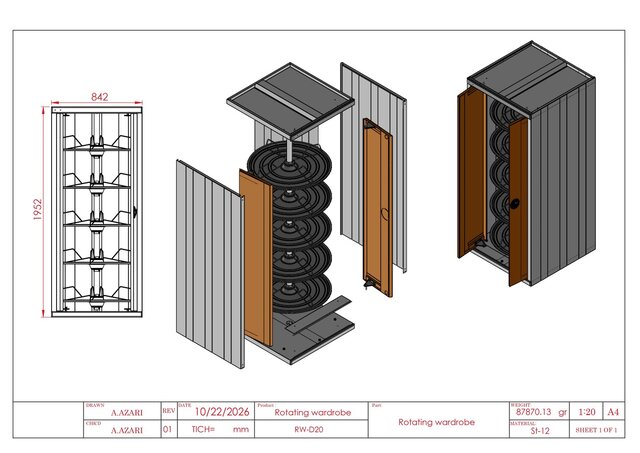

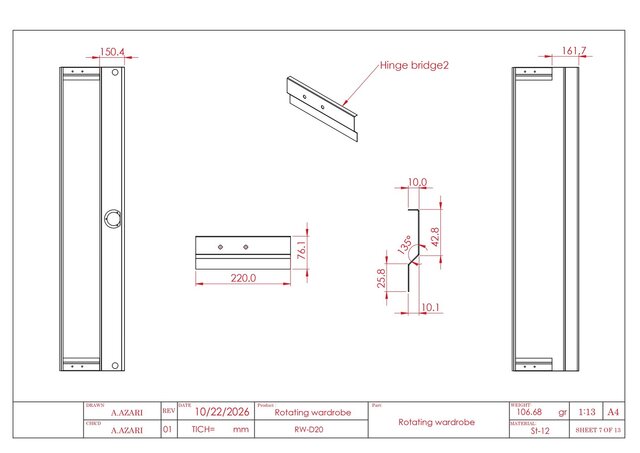

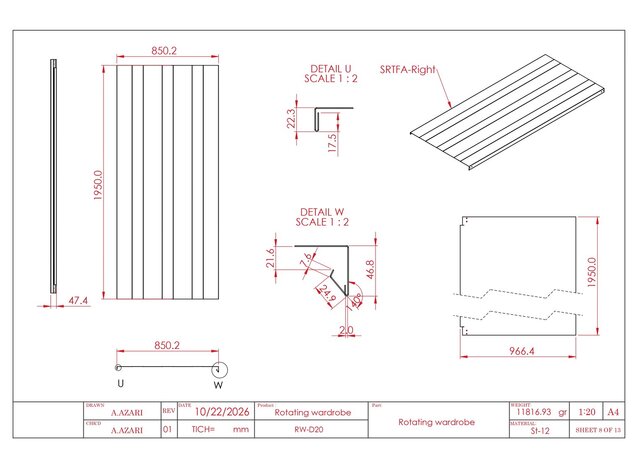

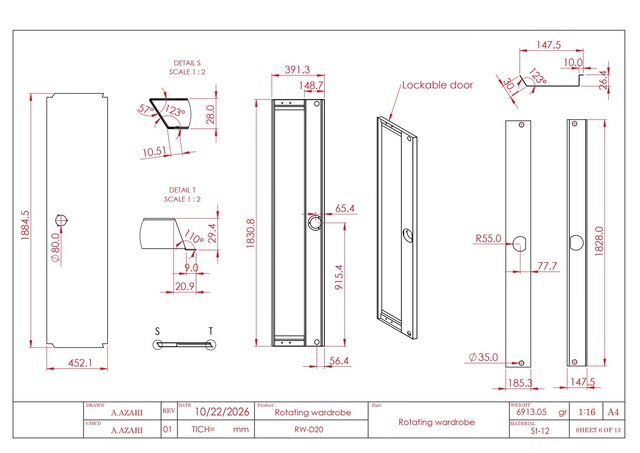

End-to-end mechanical design and complete 2D/3D manufacturing documentation for a high-capacity Rotating Wardrobe and Multi-Tier Circular Shelving System (Model: RW-D20). Key Features & Scope: Exploded Assembly & Part Breakdown: Detailed component mapping across 30 distinct parts, featuring central shaft mechanisms and 5 rotating circular tiers. Bill of Materials (BOM): Comprehensive material specification table (St-12 steel sheet, carbon steel discs, and ABS components) with precise weight tracking and quantities. Production-Ready Blueprints: Exact dimensional layouts, frame structures, locking door mechanisms, and custom dividers optimized for CNC sheet metal fabrication and workshop assembly. Software Used: SolidWorks / CAD Drafting.
