Rotating structure for grape growing

Report
An agricultural project to maximise the potential of grape growing year-round. My part of this project was to design rotating trays and the centre hub, select the drive type and transmission system from the drive to the trays. The design and FEA tests were made in SolidWorks. Materials and standard components selection were optimised for local manufacturing in Australia.
Published
in Mechanical Engineering Structural Design Services Design for Manufacturing and Assembly
structural solidworks structure-design technical-drawing finite-element-analysis agriculture-equipment greenhouse drive-system agricultural finite-element-analysissolidworks-simulation

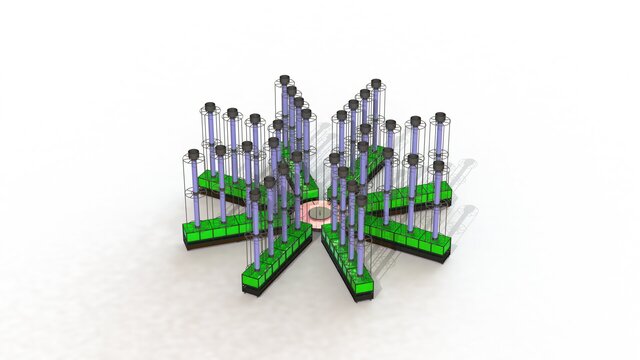

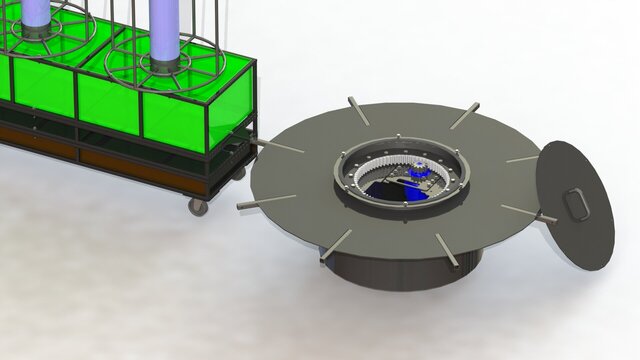

Rendering Images
