Robot-arm

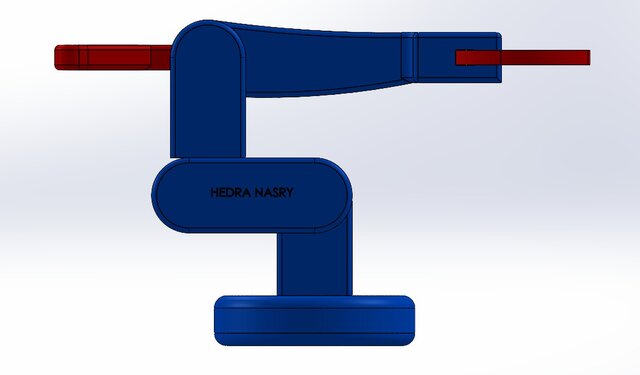

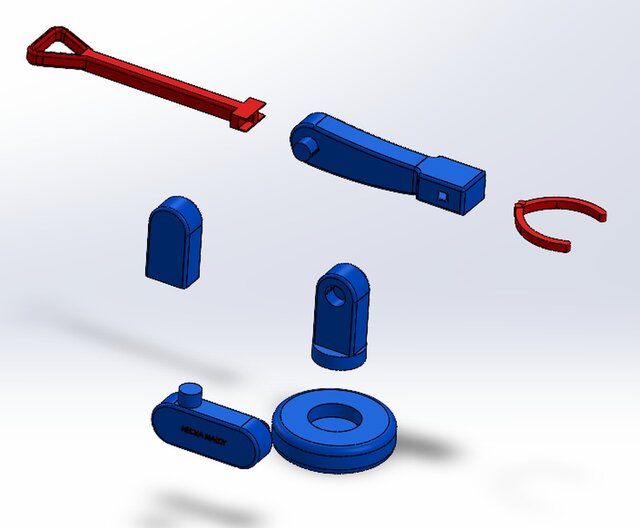

This 3D CAD model features a multi-axis robotic manipulator arm equipped with a manual linkage handle and end-effector gripper, designed for articulation and mechanical assembly studies. Key Features: Articulated Joint Structure: Features a rotating circular base paired with multiple pivot joints to simulate multi-DOF (Degrees of Freedom) robotic movement. Integrated End-Effector: Includes a two-prong claw gripper connected to a rear control handle link for manual or mechanical actuation. Exploded View & Modular Design: Includes individual component models (base, shoulder, forearm, links, and gripper) optimized for assembly constraints and motion analysis. Custom Embossing: Features clean surface geometry with custom embossed lettering on the primary linkage. Ideal for robotics prototyping, kinematics simulation, mechanical design portfolios, and educational CAD projects.
