Reverse osmosis skid · process, 3D assembly and frame fabrication

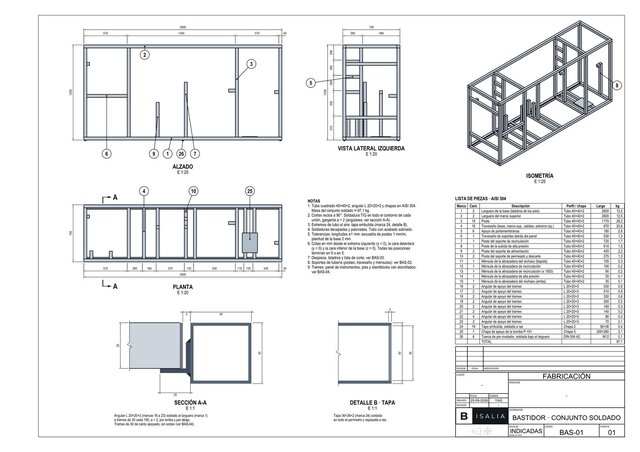

A 1 m³/h skid in 2600 by 750 by 1330 mm: three membrane housings with six 4040 membranes in series, a cartridge filter, antiscalant dosing and a vertical multistage pump. It carries the process and instrumentation diagram with its legend, the assembly sheet with the views and the process data, and the whole fabrication of the frame: 40 by 40 by 2 stainless steel square tube, 26 part marks, 97.1 kg, with the exploded view and the cutting list.
stainless-steel reverse-osmosis water-treatment skid welded-frame
