Reverse Engineering — Cam-Follower Mechanism (STL to STEP)

Report
Reverse engineering of a complex cam-follower mechanical assembly from 3D scan STL data. Converted to parametric STEP/IGES CAD model using feature-based and surface modelling techniques in Siemens NX. Delivered with full dimensional accuracy and manufacturing-ready geometry.
Published
in Reverse Engineering 3D Scan to CAD Service 3D Scanning Services
step stl reverse-engineering stl-to-step scanning

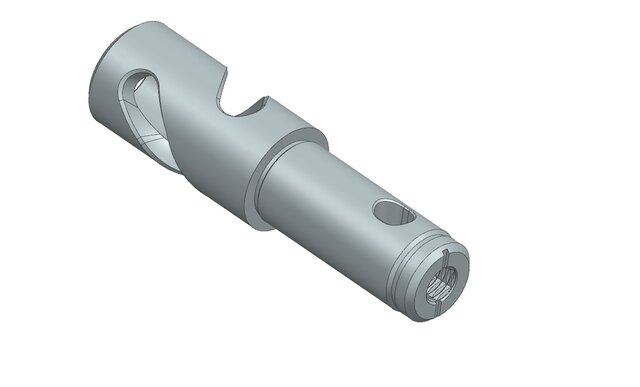

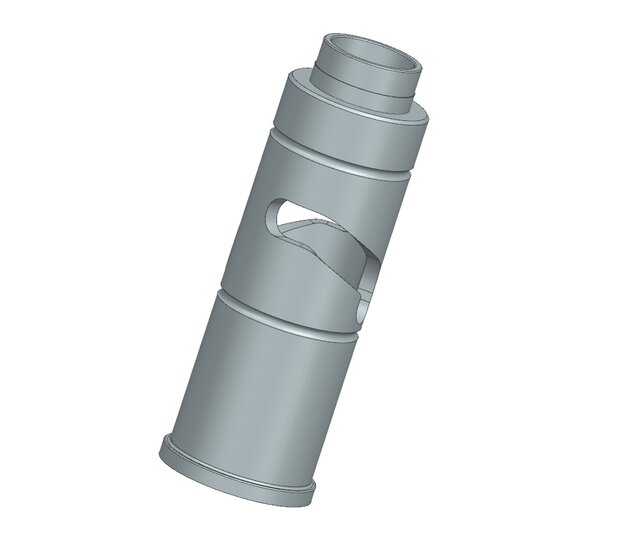

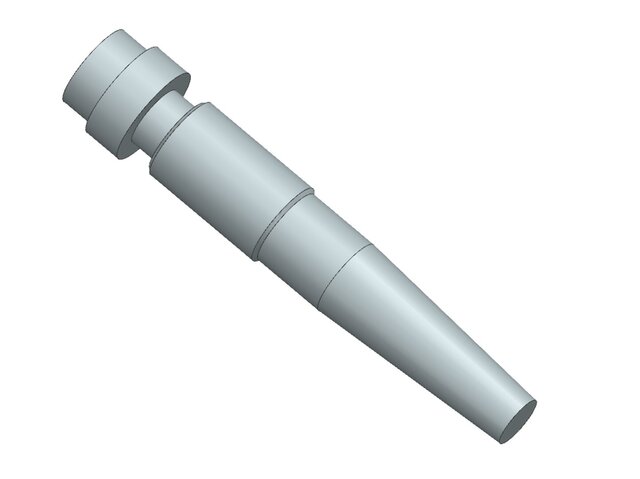

Rendering Images
