Reverse Engineering & 3D CAD Modeling of Sheet Metal Enclosure Assembly

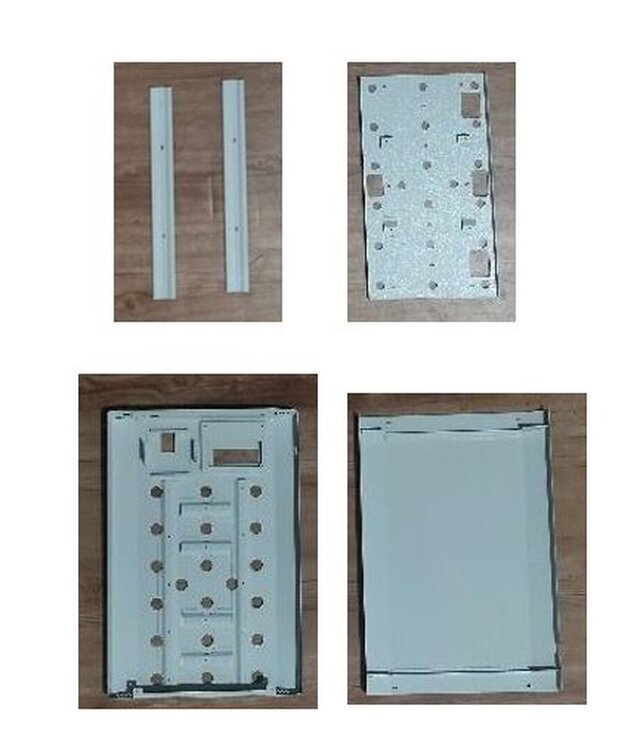

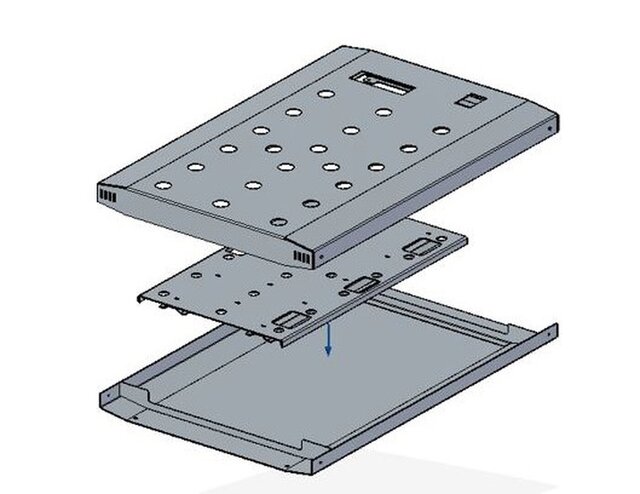

A comprehensive reverse engineering project involving precise physical-to-digital measurement conversion, CAD reconstruction, and the preparation of fabrication-ready engineering drawings. Key Responsibilities & Deliverables: • Reverse Engineering: Reconstructed full product geometry from physical measurements. • 3D CAD Modeling: Developed clean, parametric 3D sheet metal assemblies. • Sheet Metal Design: Implemented accurate material thickness tracking, bend allowances, and bend reliefs. • Fabrication Drawings: Created complete 2D engineering blueprints with flat patterns for manufacturing. • Documentation: Provided complete manufacturing and assembly layouts to eliminate production errors.
