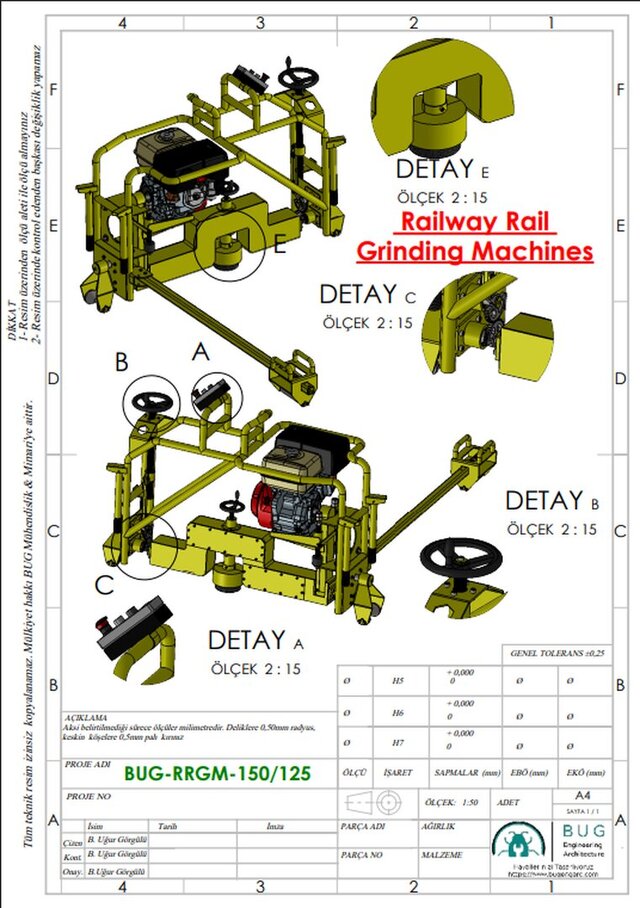

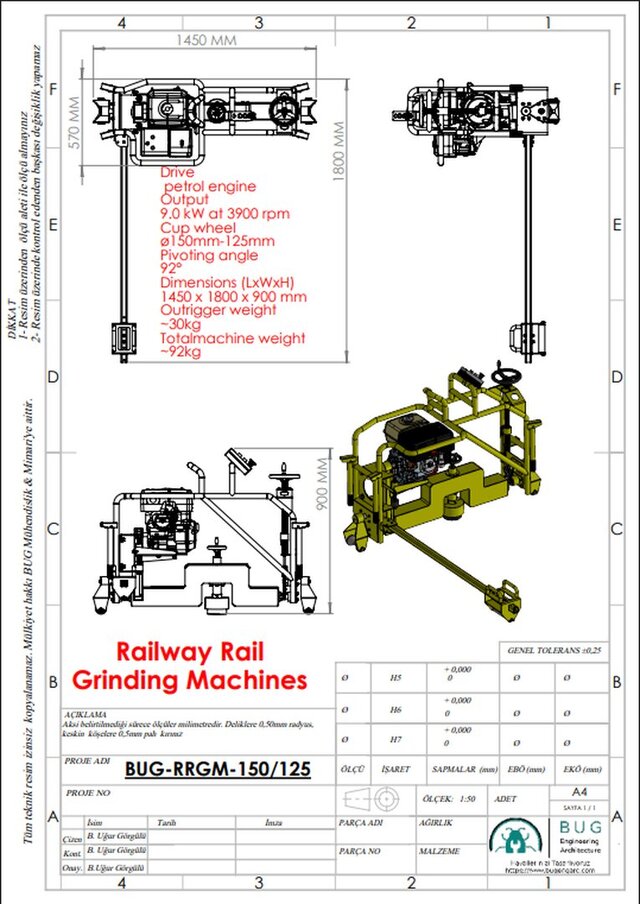

Railway Rail Grinding Machine

It is designed to re -profile the rail head after the source. The machine is equipped with a greased diesel engine, even if it is 90 ° sloping. The transmission from the engine to the work-shaft body of the grinding stone is produced by a V-Belt with the tension regulator. The protected effect of the belt guarantees maximum safety and minimum effort for the operator. The machine is also equipped as follows: two cylinders for longitudinal relocation on the rail, two lateral support that provides stability during operation, a hand wheel to adjust the grinding depth with a graded scale, to bend the machine.
