radial-engine

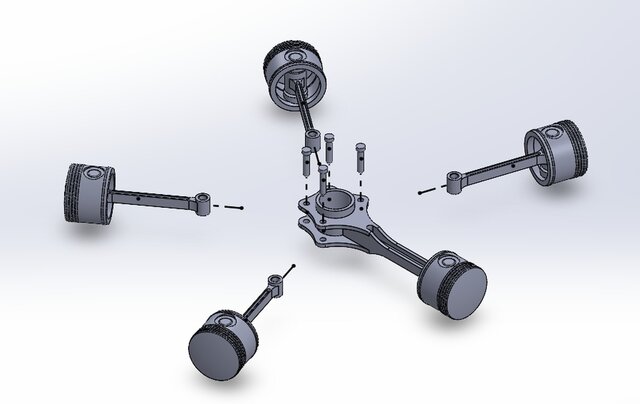

This detailed 3D CAD model features a classic 5-cylinder radial engine piston assembly, showcasing the core internal drive system commonly found in aviation and mechanical engineering designs. Key Features: Master & Articulated Rod Mechanism: Accurately models a central master connecting rod paired with four articulated slave rods connected to a central hub. Piston Assemblies: Includes five fully detailed pistons complete with realistic gudgeon pin bores and piston ring grooves. Mechanical Accuracy: Designed with precise clearance constraints and structural ribbing along the connecting rods for strength and weight balance. Multi-Body Construction: Ideal for motion analysis, exploded-view renderings, kinematic studies, or educational mechanical demonstrations. Suitable for automotive/aerospace enthusiasts, mechanical design portfolios, and 3D printing visualization. Supplied with complete CAD project files and high-resolution rendering preview.
