Rack-Mountable HEPA Air Purifier

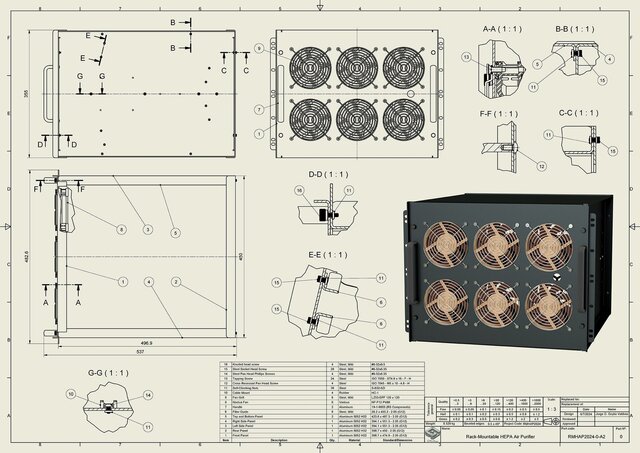

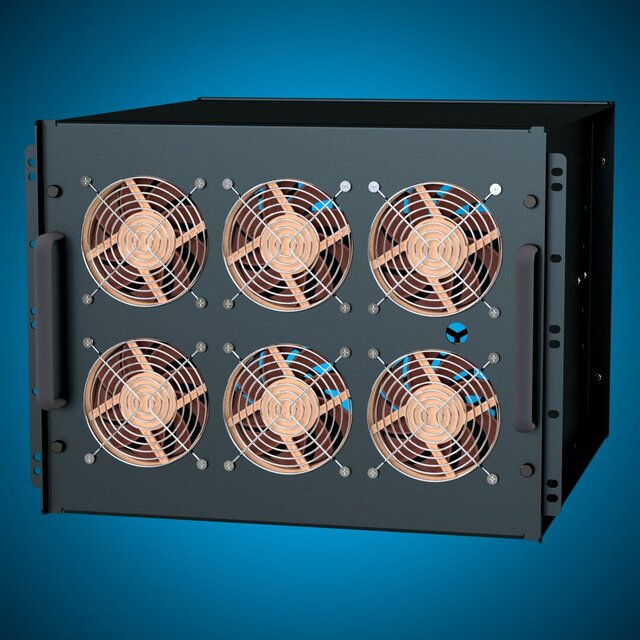

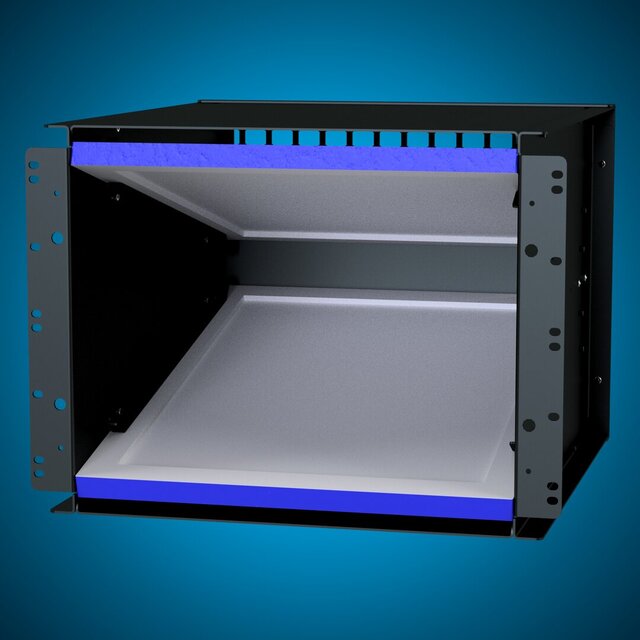

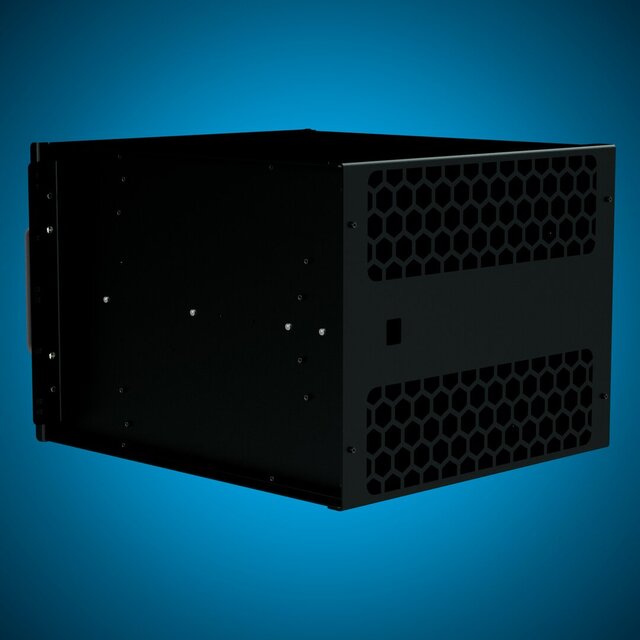

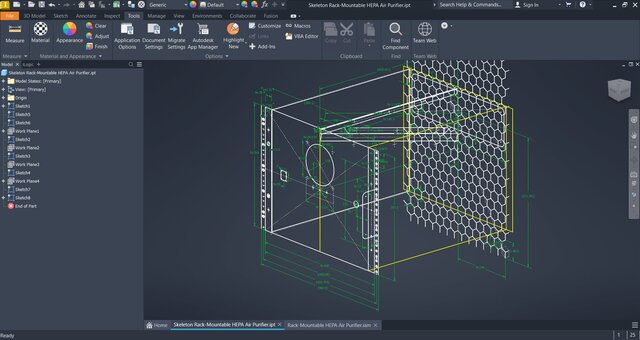

Rack-Mountable HEPA Air Purifier, developed using the Skeleton Design methodology in Autodesk Inventor. This approach utilizes multiple base sketches distributed across different planes within a master part file, serving as the foundational geometry for all components and sub-assemblies throughout the model. The system features a robust rack-mount enclosure with six fans with protective grilles, integrated side handles, and standard rack-mounting ears. This design combines HEPA filtration with active air circulation for optimal purification. The parametric workflow ensures design consistency, facilitates modifications, and maintains precise relationships between all structural elements. Ideal for data centers, server rooms, industrial control cabinets, and clean rooms requiring superior air quality, this rack-mountable unit protects sensitive equipment from dust and contaminants while meeting 19-inch rack specs for seamless integration into existing infrastructure.
