Quadcopter Design and Assembly
Quadcopter Assembly – CAD Model

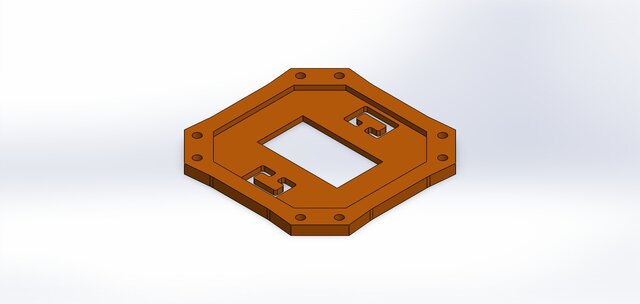

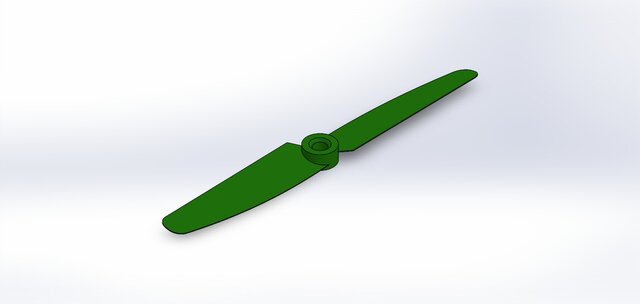

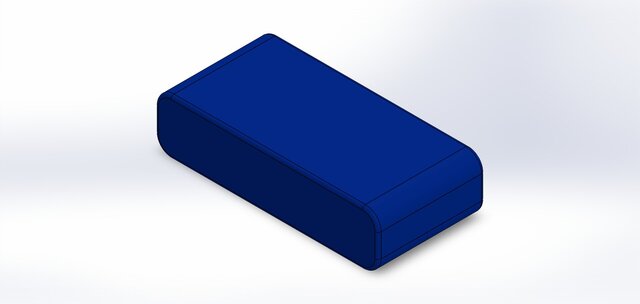

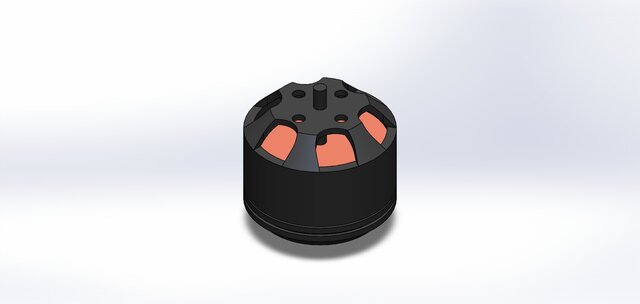

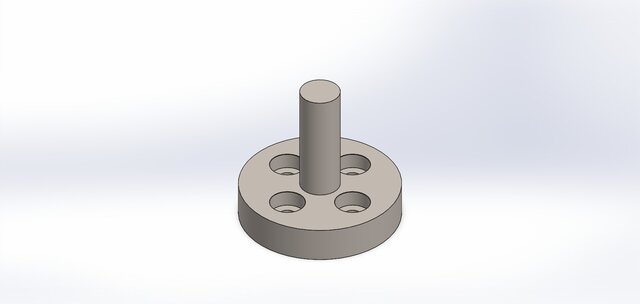

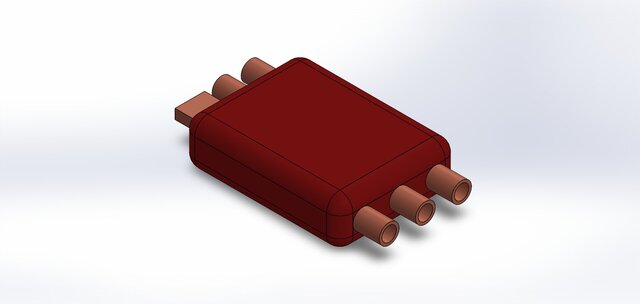

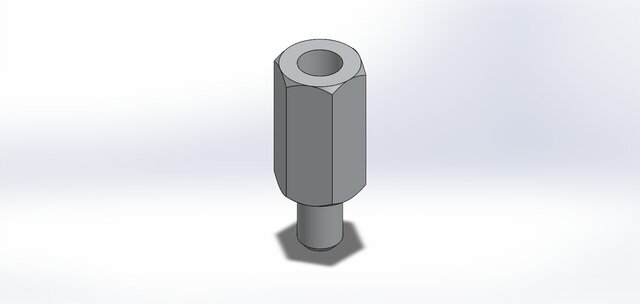

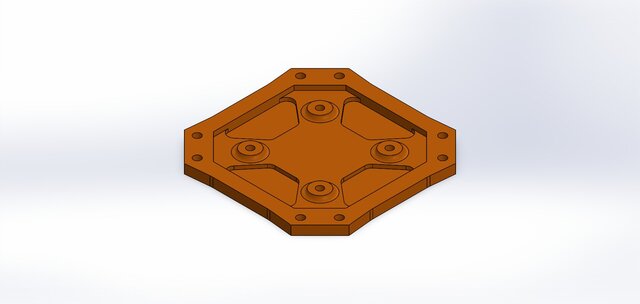

This is a detailed 3D CAD model of a quadcopter designed using SolidWorks. The assembly features a tri-arm configuration with brushless motors, propellers, a central frame, and a mounted battery pack. The structure is optimized for lightweight performance, showcasing realistic mechanical components such as motor mounts, support brackets, and a modular frame. Ideal for drone design demonstrations and prototyping.
Files (27)
License:
CC - Attribution
Learn more
Published
