PVC Extrusion Machine Elbow Component

Report
This project covers the full engineering workflow for an elbow component used in a PVC extrusion machine, including technical drawing creation and 3D CAD modeling. The part functions as a flow-directing elbow, designed to guide molten PVC through a controlled curved path while minimizing flow disturbance, pressure loss, and material buildup. Both the 2D technical drawing and the 3D solid model were developed by me, ensuring full dimensional consistency and manufacturing readiness.
Published
in Mechanical Drafting Industrial Design Services Mechanical CAD Design
technical-drawing mechanical-drafting cnc-machining tooling-design production-design engineering-documentation manufacturing-cad pvc-extrusion elbow-component extrusion-machine

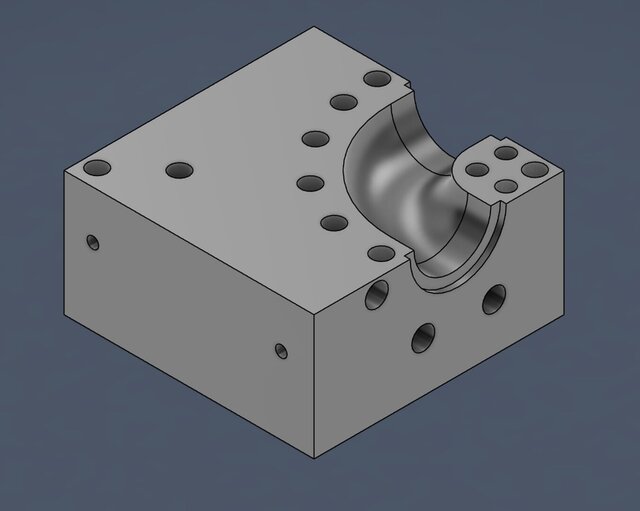

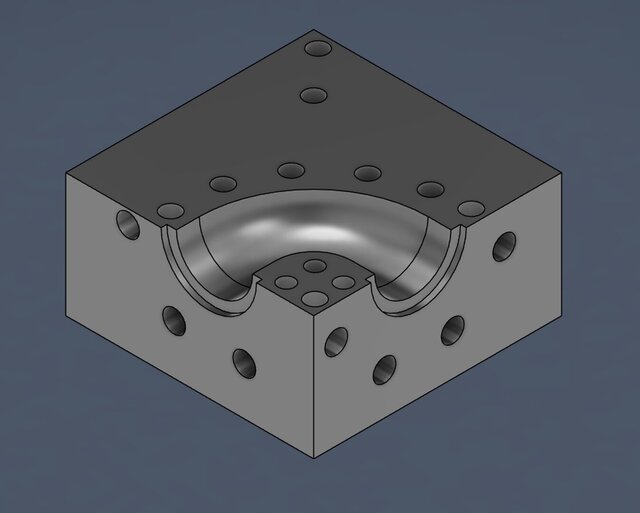

Rendering Images
