Production-Ready Fabrication & Manufacturing Drawings

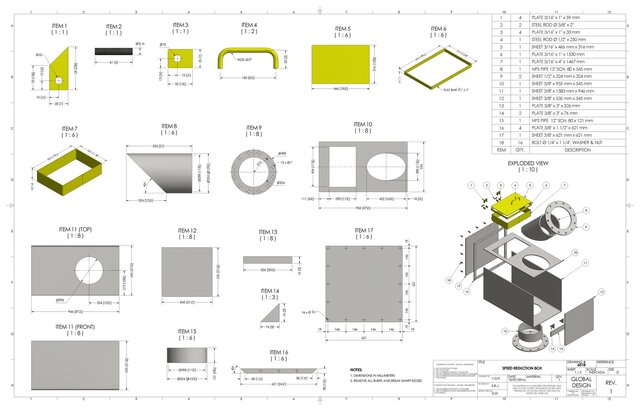

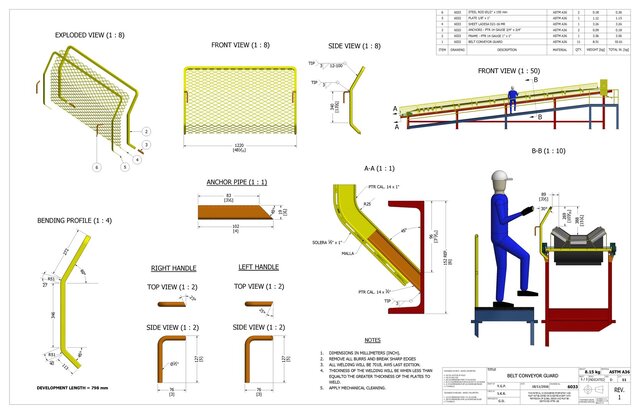

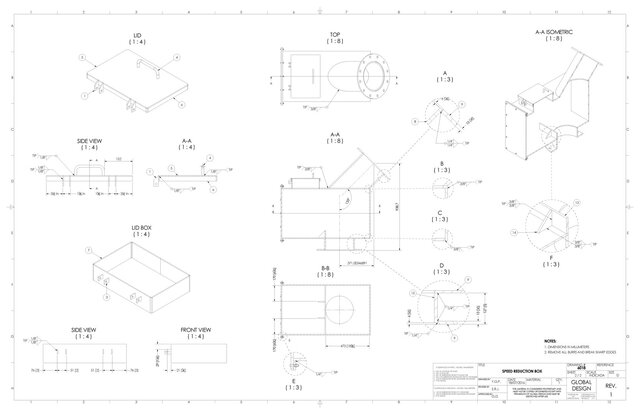

Examples of detailed fabrication drawings developed for industrial machinery and equipment. The documentation includes assembly and exploded views, sections, detailed component views, dimensions, material specifications, BOMs, bending information, welding details and symbols, fabrication notes, and manufacturing requirements. My drafting approach focuses on producing clear documentation that minimizes ambiguity on the shop floor and supports efficient fabrication, assembly, inspection, and revision. I work with ASME Y14.5 drafting conventions, ISO practices, and AWS/ISO welding symbols as applicable to the project.
