Product Assembly Conveyor System

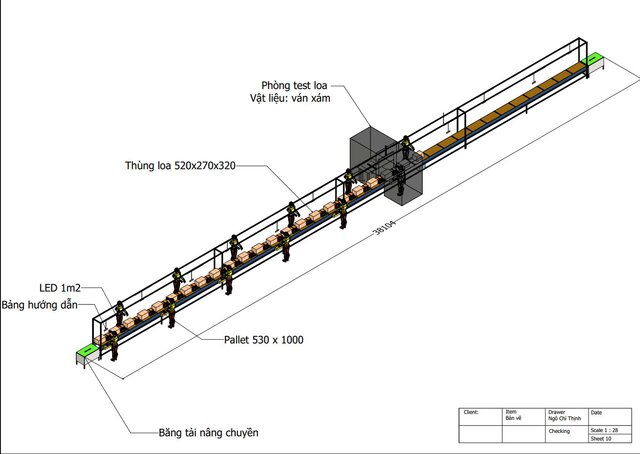

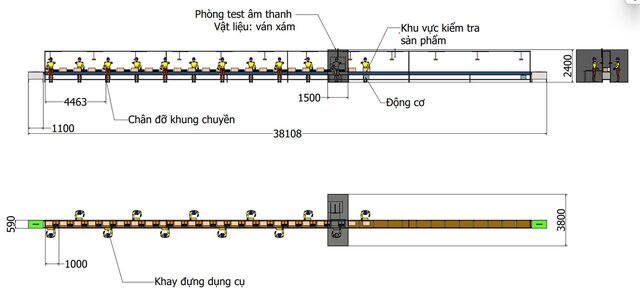

Speaker Assembly & Testing Conveyor System Project Overview Designed a complete 3D mechanical layout for a semi-automated speaker assembly and quality testing line. The system delivers components directly to workstations, transfers finished speakers into an acoustic testing booth, and routes qualified units to the next production stage. Key Features & Specifications Structural Frame: Rigid steel/aluminum frame designed for low vibration and industrial stability. Assembly Conveyor: Belt conveyor transporting components smoothly across operator stations. Ergonomic Component Trays: Custom-positioned parts bins at each workstation for fast manual assembly. Testing Integration & QC Routing: Inline transfer into an acoustic test chamber, with sorting mechanisms separating passed units to the downstream process from defective parts. Deliverables Parametric 3D assembly models (STEP/native CAD). 2D General Arrangement (GA) layout and manufacturing drawings. Motion verification and clearance checks across all stations.
