Precision Sheet Metal Chassis Bracket Design

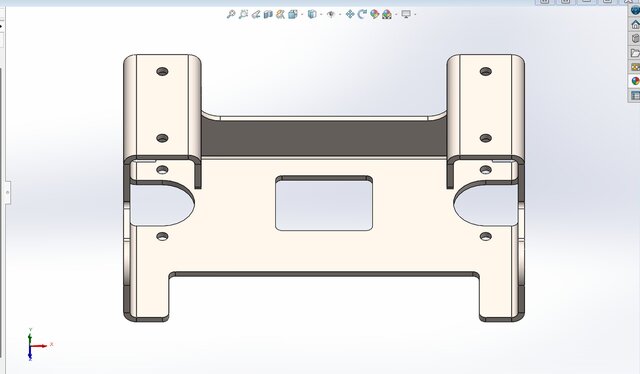

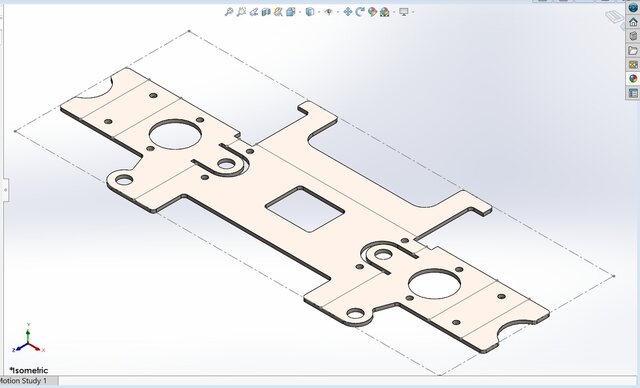

Design Specs: - Manufacturing Process: Designed for CNC Laser/Plasma cutting followed by hydraulic press brake forming. - Symmetry & Alignment: Features precision-aligned circular bores on parallel vertical flanges, ideal for supporting a shaft, bushing, or motor mount. - Weight Reduction: Includes a center rectangular relief cutout to minimize material weight without compromising structural integrity. - Mounting Interfaces: Equipped with peripheral mounting tabs (ears) with pre-drilled holes for easy integration into a larger frame or chassis. - Geometric Complexity: Utilizes multiple 90-degree bends and offset flanges to provide high torsional rigidity. Skills: - SolidWorks Sheet Metal Environment: Expert use of Base Flange, Edge Flange, and Cut-Extrude features. - DFM (Design for Manufacturing): Optimized for a single-piece flat pattern to reduce welding requirements and assembly time. - Drafting & Visualization: Creation of high-fidelity 3D isometric renders for client review and technical documentation.
