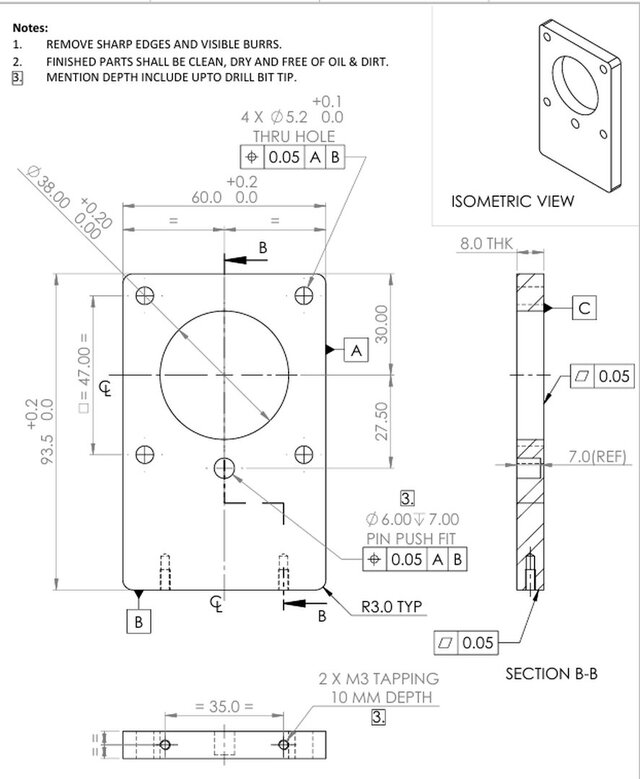

Precision Mounting Plate – SolidWorks 3D Model & Manufacturing Drawing

The model includes a rectangular 8 mm thick plate with a large central through-hole, four Ø5.2 mm mounting holes, two M3 tapped holes, and Ø6 mm × 7 mm deep pin push-fit holes. The design incorporates dimensional tolerances, GD&T position tolerances, flatness requirements, corner radii, and manufacturing details
