Precision Mechanical Parts & Prototypes – CAD Design for Manufacturing

Report

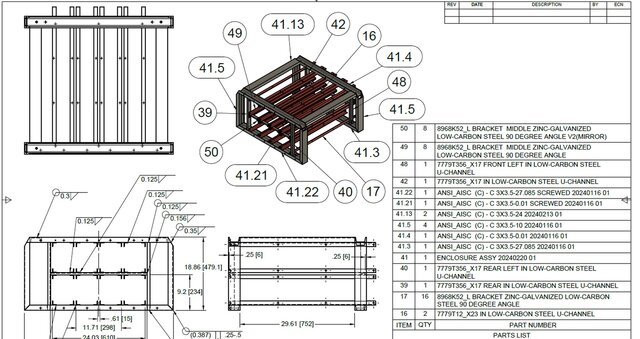

Collection of precision mechanical parts and prototypes designed for manufacturing and 3D printing. Includes detailed gears, connectors, nozzles and fully dimensioned assemblies. All models are parametric and ready for production (CNC, casting or additive manufacturing). Software used: SolidWorks, Fusion 360, Inventor Deliverables: 3D models + technical drawings
Published
in 3D Printing Design 3D Modeling Mechanical Engineering
solidworks gear prototype 3d-printing mechanical-parts precision-cad

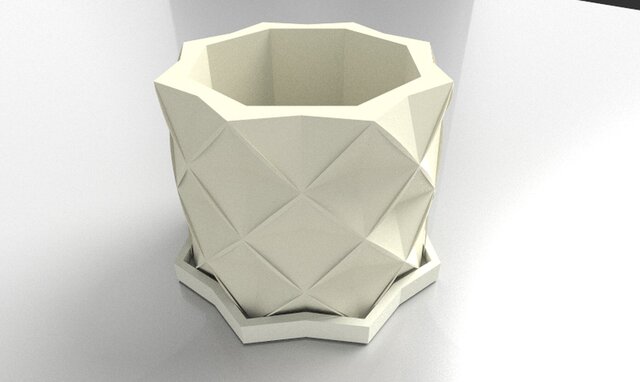

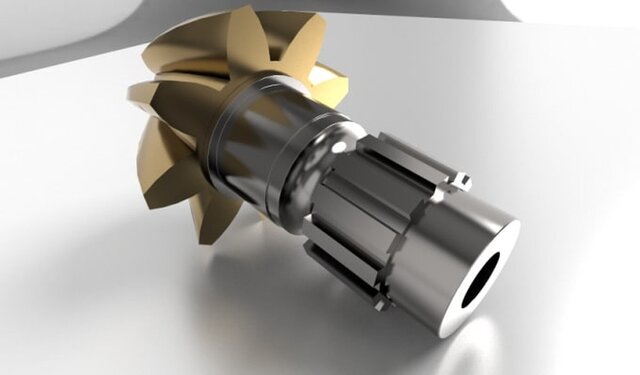

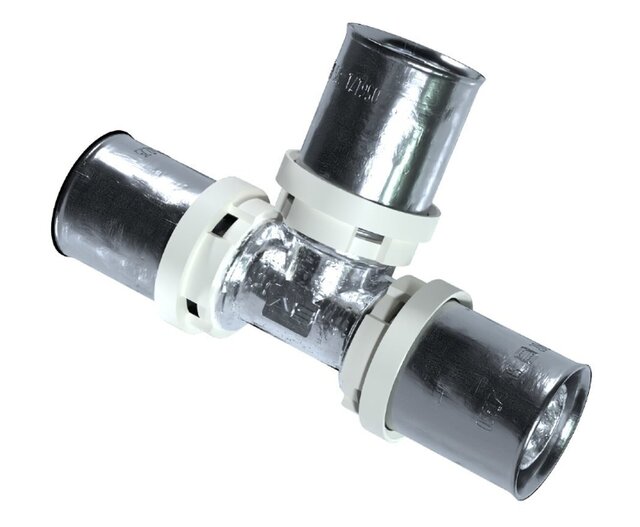

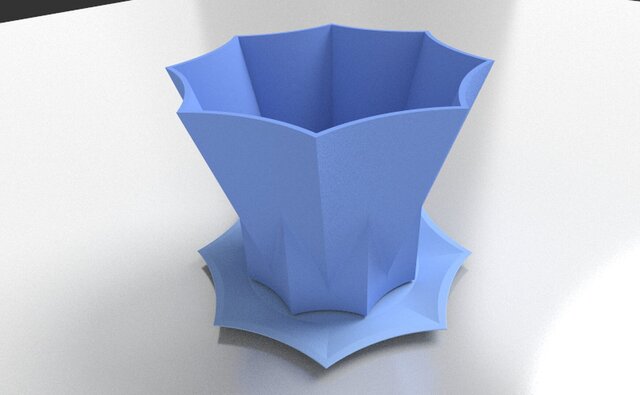

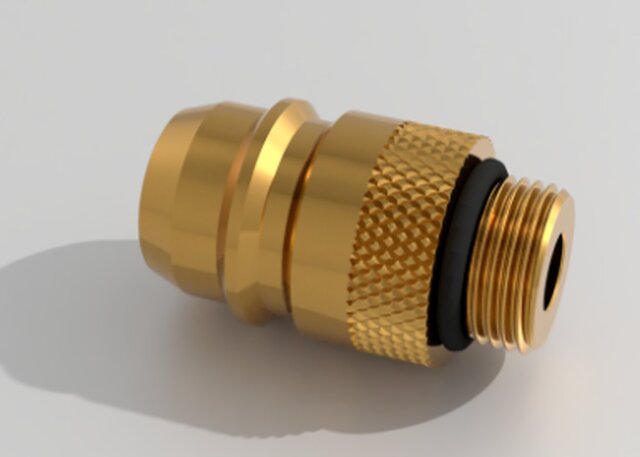

Rendering Images
