Precision Flanged Hub Design.

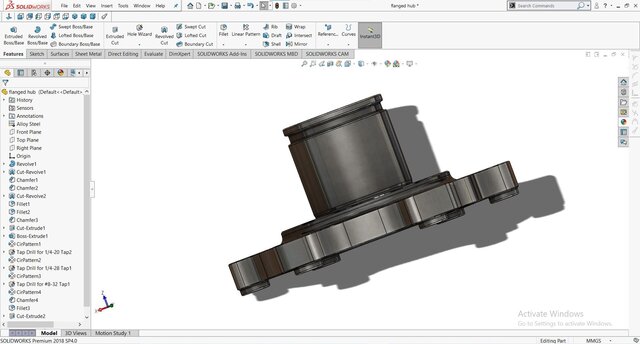

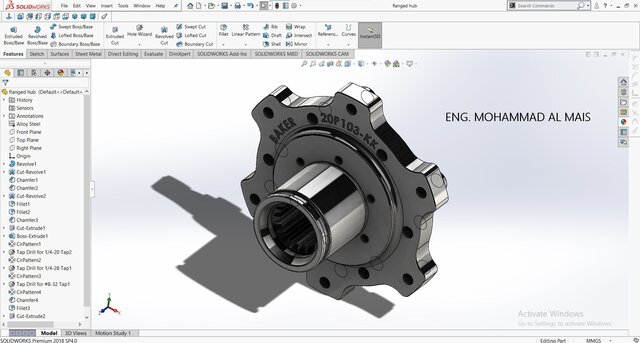

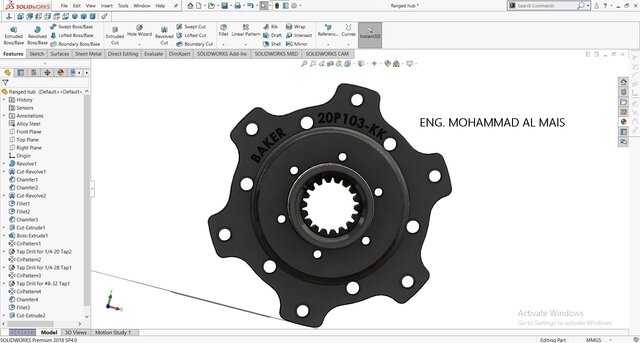

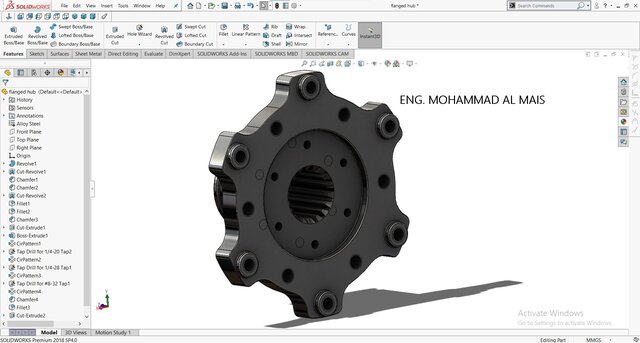

This SolidWorks model showcases a high-precision flanged hub engineered for efficient torque transmission and reliable mechanical connection between shafts and rotating components. The design features a splined inner bore for secure power transfer, bolt-hole patterns for robust flange mounting, and chamfered and filleted edges to enhance durability and assembly alignment. Crafted from alloy steel, the hub ensures superior strength, wear resistance, and long service life—ideal for applications in automotive drivetrains, industrial gear systems, and mechanical assemblies.
