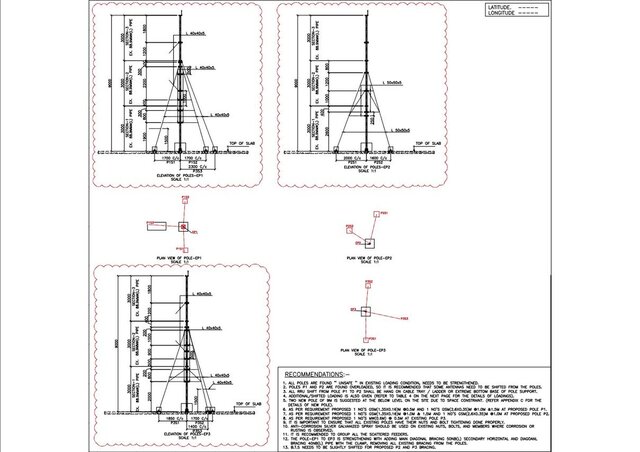

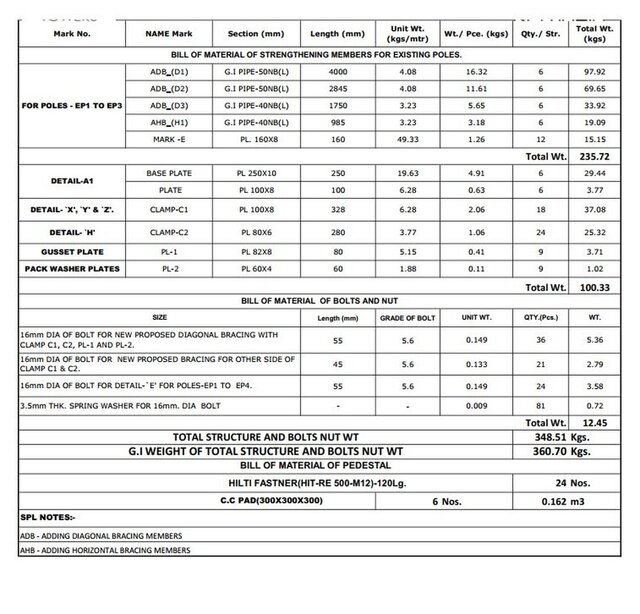

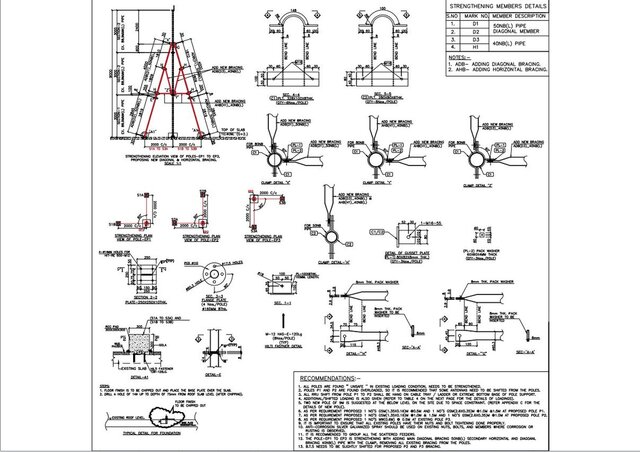

Developed a complete set of technical drawings and a Bill of Materials for the structural strengthening of existing poles on a rooftop. My work included creating detailed plans, elevations, and a comprehensive BOM for all components. The deliverables also included a terrace layout plan and foundation details to ensure the proposed modifications were structurally sound and integrated with the existing building. This project demonstrates my ability to create detailed, multi-faceted engineering drawings for complex on-site modifications.
