Planetary Gear Assembly

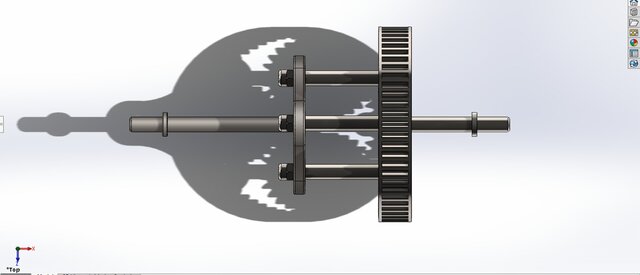

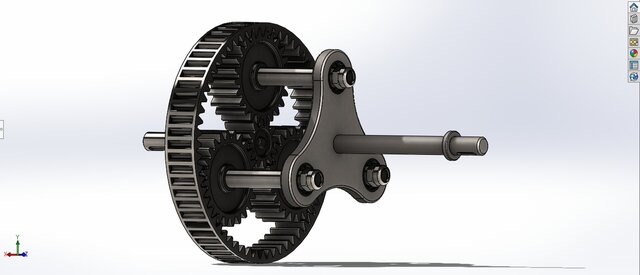

⚙️ Planetary Gear Assembly | SOLIDWORKS | Motion Study Efficient power transmission depends on precise gear interaction, accurate assembly constraints, and reliable kinematic performance. This project presents a complete Planetary Gear Assembly designed and validated in SOLIDWORKS. Technical Specifications • Sun Gear: 12 Teeth • Planet Gears: 24 Teeth × 3 • Internal Ring Gear: 60 Teeth • Input Speed: 10 RPM • Gear Material: AISI 4330 Alloy Steel (Normalized) • Supporting Components: AISI 1045 Steel Engineering Scope ✔ Parametric 3D CAD Modeling ✔ Complete Assembly Design ✔ Gear Mates & Mechanical Constraints ✔ Exploded Assembly Configuration ✔ Motion Study & Kinematic Validation The motion study was performed to verify synchronized gear engagement, smooth rotational behavior, and accurate component interaction throughout the mechanism. Planetary gear systems are widely used in automatic transmissions, robotics, electric vehicles, aerospace systems, and industrial power transmission, where compact design, efficient load sharing, and high torque density are essential. I welcome your engineering feedback and technical insights. #MechanicalEngineering #MechanicalDesign #SolidWorks #CADDesign #PlanetaryGear #GearDesign #AssemblyDesign #MotionStudy #PowerTransmission #MachineDesign #3DModeling
