Piston

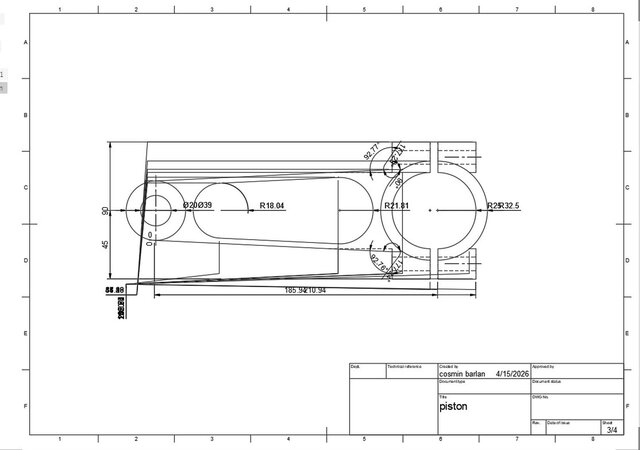

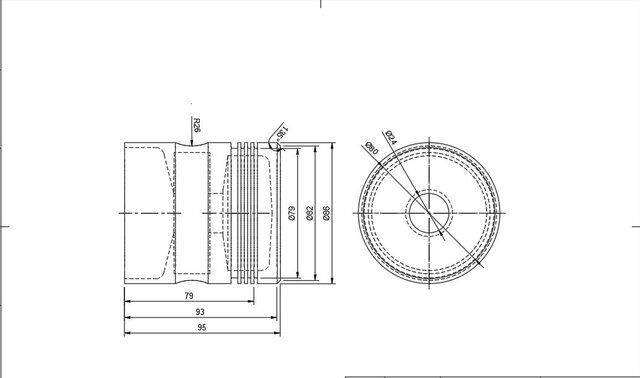

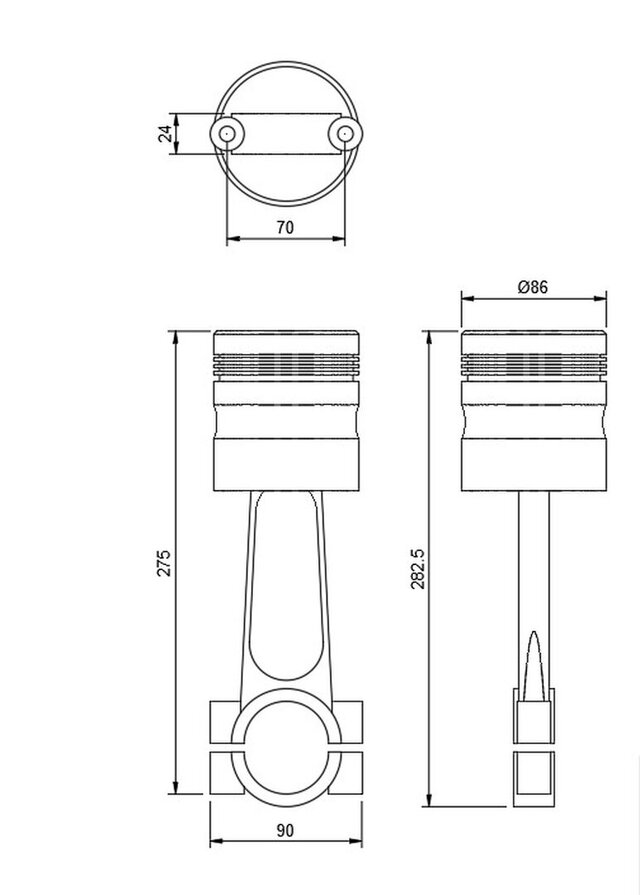

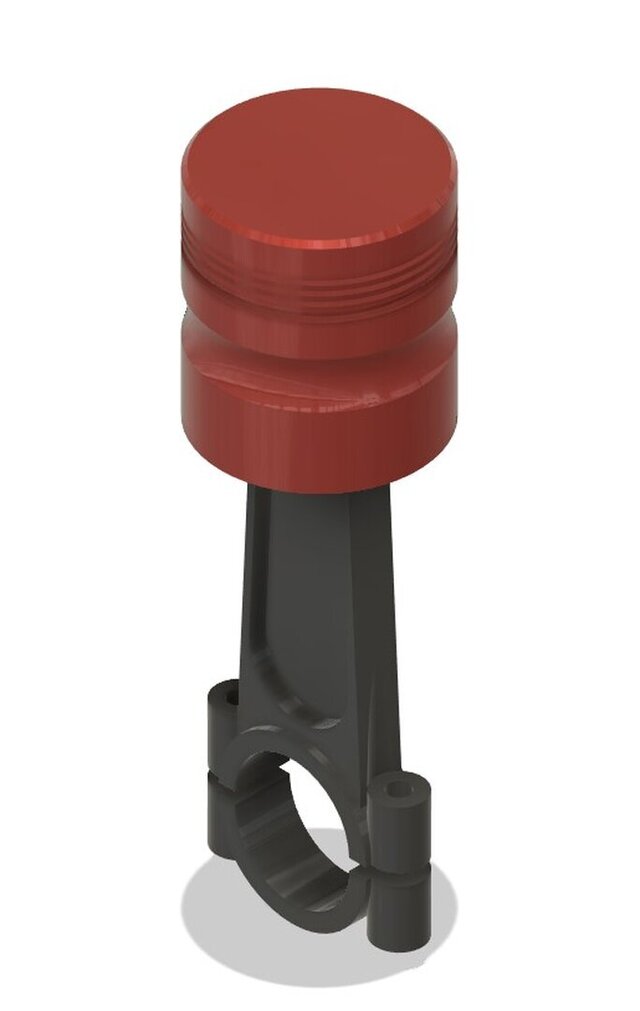

This project includes the 3D CAD design of a mechanical piston component along with a detailed 2D technical drawing. The model was created with focus on accuracy, proper dimensions, and functional geometry suitable for mechanical applications. The 2D drawing includes key views and measurements for manufacturing reference.
