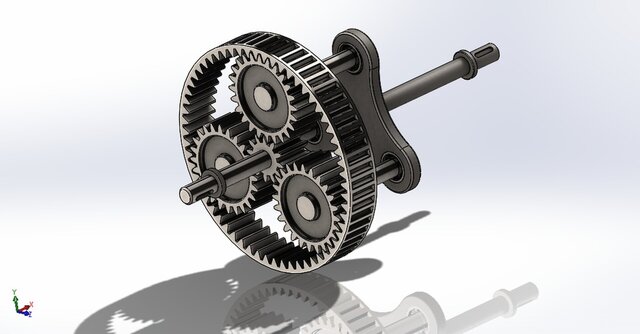

⚙️ Planetary Gear Assembly & Manufacturing Drawing | SolidWorks Designed and documented a complete Planetary Gear Assembly, transforming 3D CAD models into manufacturing-ready engineering drawings. Key Specifications: 🔹 Module: 1 🔹 Sun Gear: 12 Teeth 🔹 Planet Gears: 24 Teeth 🔹 Ring Gear: 60 Teeth 🔹 Pressure Angle: 20° 🔹 Materials: AISI 4130 & AISI 4330 Steel Project Highlights: ✔ 3D Part Modelling ✔ Assembly Design ✔ Detailed Manufacturing Drawings ✔ Dimensions & Tolerancing ✔ Material Documentation ✔ Manufacturing-Oriented Design Approach This project strengthened my understanding of gear train geometry, assembly relationships, engineering documentation, and design-for-manufacturing practices used in modern mechanical systems. #MechanicalEngineering #SolidWorks #CADDesign #MechanicalDesign #MachineDesign #PlanetaryGear #Gearbox #ManufacturingDrawing #DesignEngineering #ProductDevelopment #Engineering
