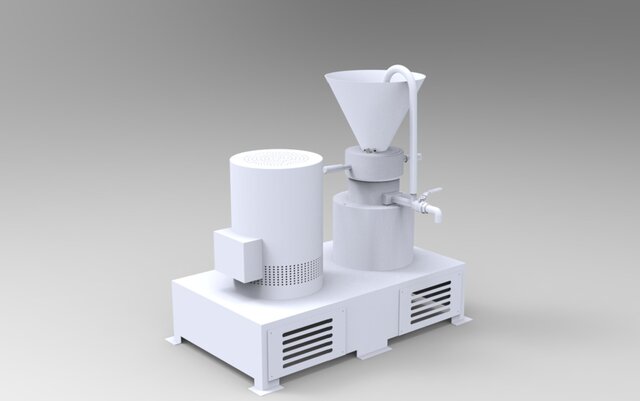

Peanut Butter Maker – 3-Stage Colloid Mill

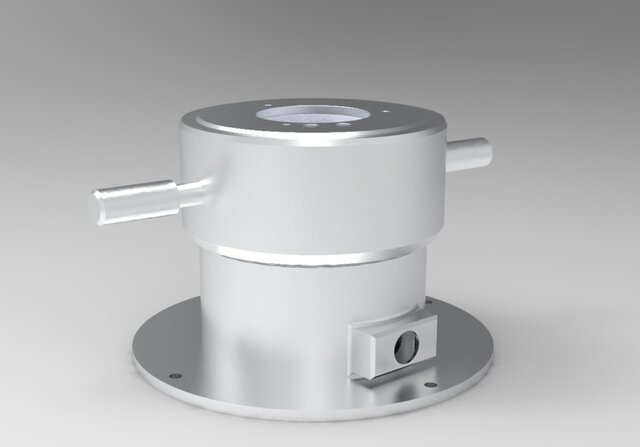

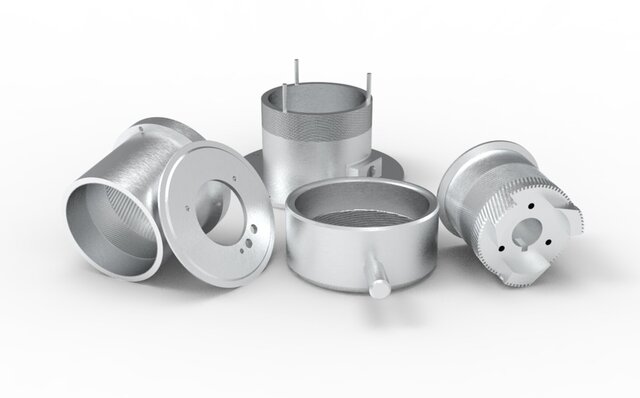

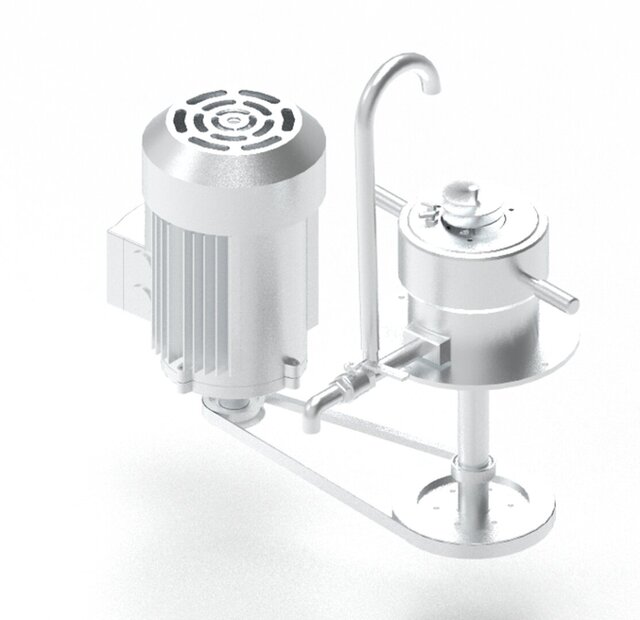

A fully detailed project of a high-performance 3-stage colloid mill, suitable for producing peanut butter, tahini, or similar viscous pastes. This includes: # Rotor with herringbone (double helical) teeth, in 3 progressive fineness stages Complementary stator ring with mirrored grooves Adjustable ring for precision rotor-stator gap control Integrated screw feeder system for consistent flow Cooling jacket design for temperature management Modular assembly-ready structure ** Main Component Features ** Component Key Features - Rotor 3-stage herringbone tooth layout, shear-optimized geometry - Stator Counter-angled herringbone teeth, 0.2 mm shear gap - Adjusting Ring 50 mm threaded control for axial positioning - Screw Feeder Helical flight modeled for continuous feeding, optional drive - Cooling Jacket 5 mm wall split with spiral or annular flow path
