NEOM Flare Piping Design

Report

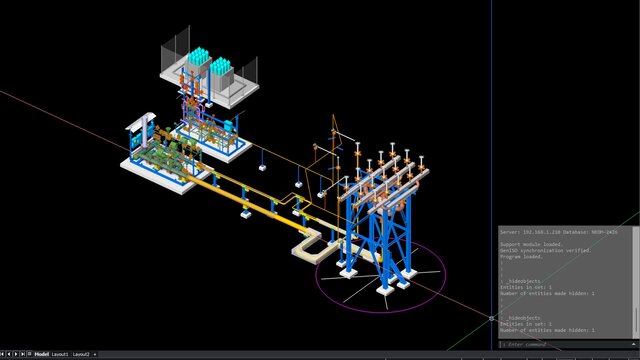

Design of 3 skids for a Flare package, along with all the interconnecting piping between the stack and the skids, and later on delivering Piping Isometric Drawings, Skids General Arrangements, Piping Plans, and MTOs. The design was completely supported via 3D model review meetings with the client in 3 stages, so the result would be completely satisfactory.
Published
in 3D Modeling Design 3D Design Services Mechanical Design Services
piping piping-and-instrumentation-design skid-equipment piping-skid piping-design-engineering piping-3d-model isometric-drawing
Rendering Images
