Multi-Story RC Building – Structural Framing, Column Layout & Reinforcement Detailing (AutoCAD)

Report

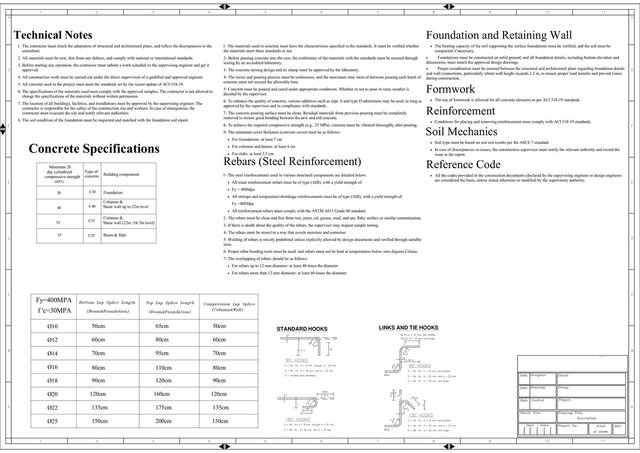

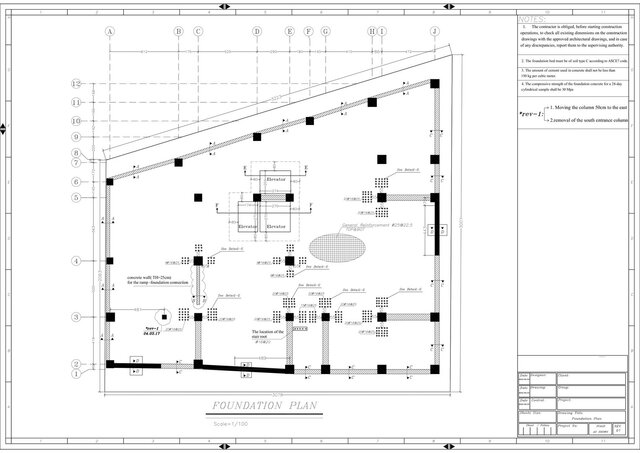

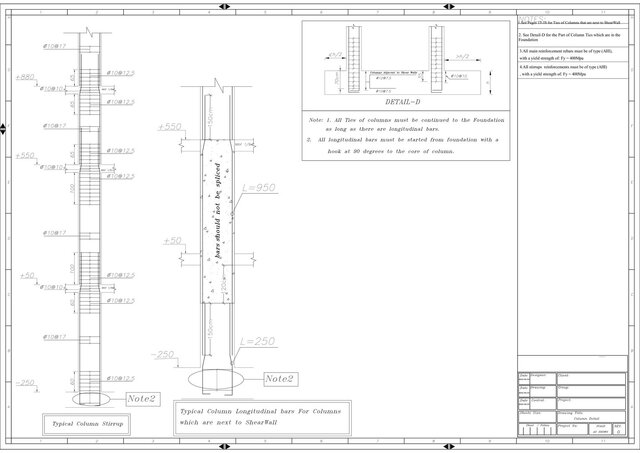

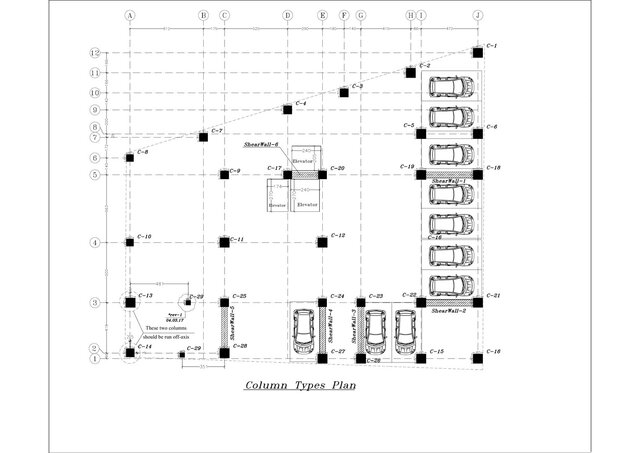

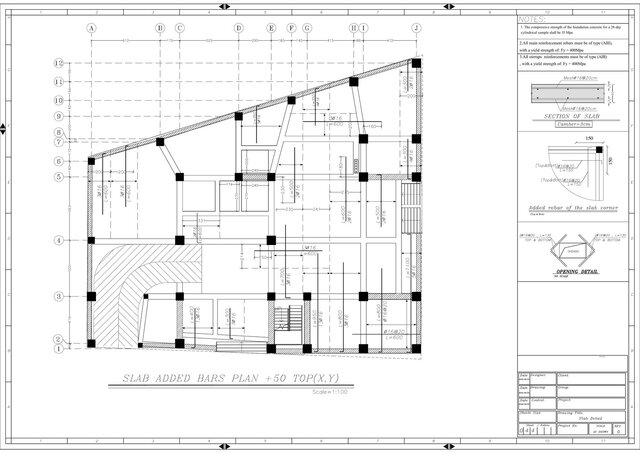

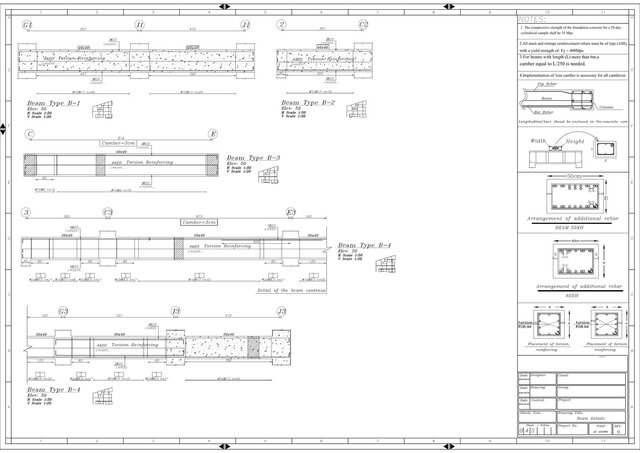

Complete structural drawing package for a multi-story reinforced concrete building, including column and shear wall layout plan, slab reinforcement detailing, and beam reinforcement details (longitudinal & torsion rebar, camber per code). Drawn in AutoCAD following ACI reinforcement standards
Published
in Structural Engineering AutoCAD Drafting & Design AutoCAD Drawing Services
autocad civil-engineering rebar-detailing structural-detailing civil-drafting structural-drafting
