Modular Oil Rig Structural Design & Fabrication Detailing

Report
Designed and analyzed a modular oil rig structure for oil & gas application. Scope included 3D structural modeling, load case development (wind and floor loads), and full structural analysis using STAAD.Pro to validate safety and performance under operational conditions. Deliverables: • Structural 3D model • Load analysis & validation • Fabrication-ready drawings • Member sizing and weight optimization The design was developed with fabrication efficiency in mind to reduce material waste and simplify installation. Tools: SolidWorks, AutoCAD, STAAD.Pro
Published
in 3D Modeling Design FEA Finite Element Analysis Structural Steel Detailing
fea steel-structure structural-analysis structural-engineering oil-and-gas structural-design-and-drafting-services fabrication-drawings autocad-2022 3d-modeilng solidworks-2022 staad-pro offshore-engineering

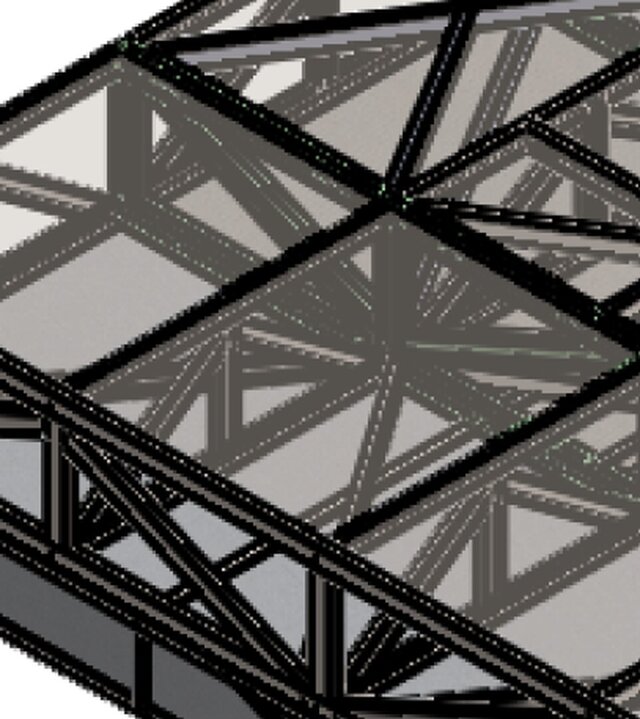

Rendering Images
