Miniature Arbor Press

Report

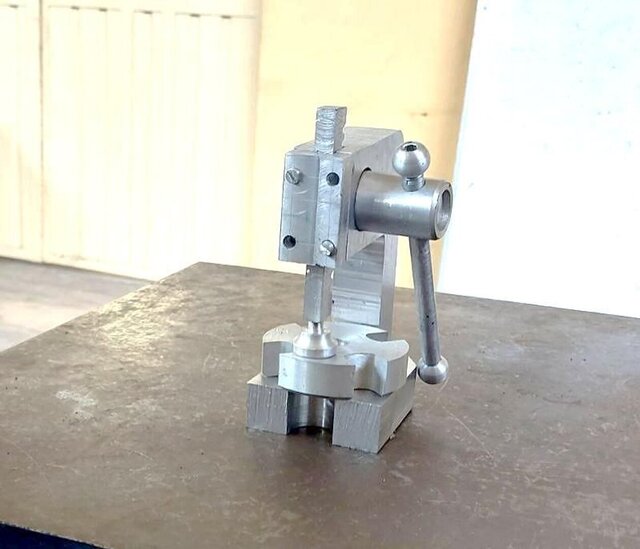

This project involved the design of a compact Miniature Arbor Press intended for light-duty pressing, assembly, and educational applications. The design includes a rigid frame, rack and pinion mechanism, handle assembly, and guided ram system to ensure smooth and controlled force application. A proof of concept prototype was manufactured using aluminum to validate the design, functionality, and assembly process.
Published
in Machine Design Mechanical Engineering Design for Manufacturing and Assembly
catia product-design mechanical-design machine-design cad-modeling mechanical-engineering assembly-design manufacturing-drawings design-for-manufacturing arbor-press

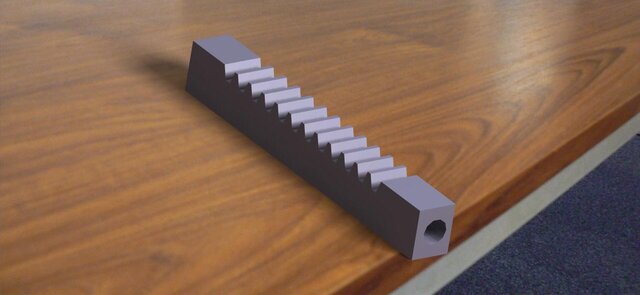

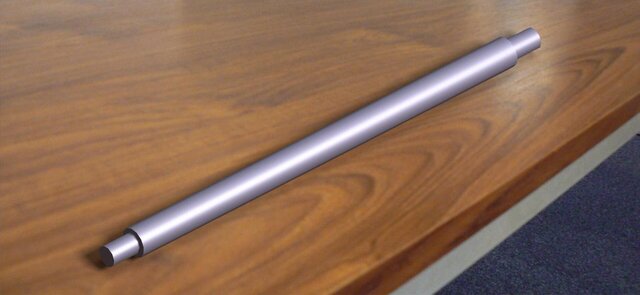

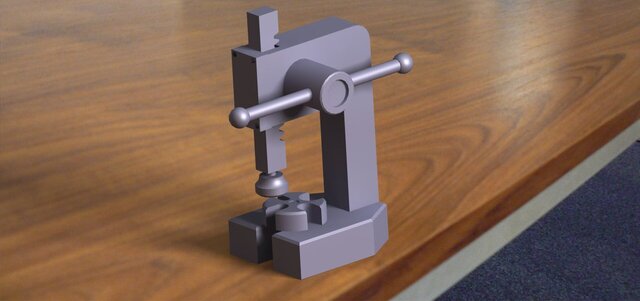

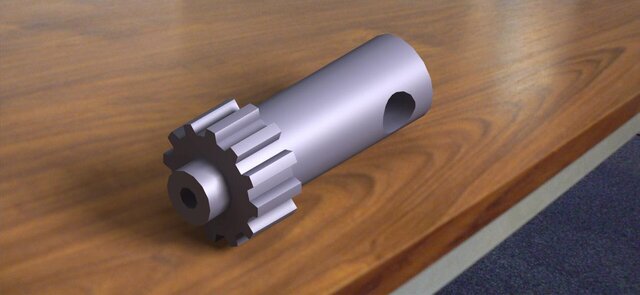

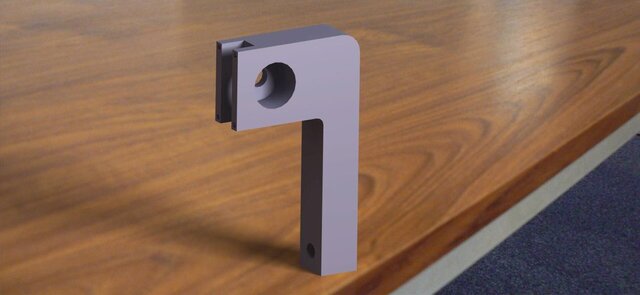

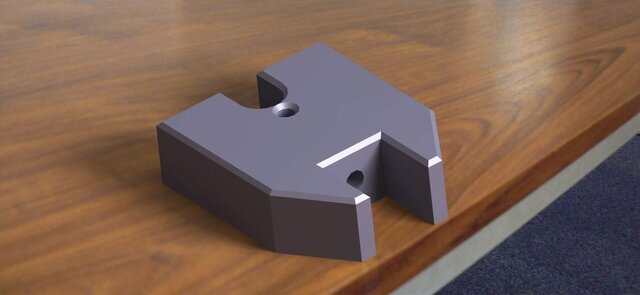

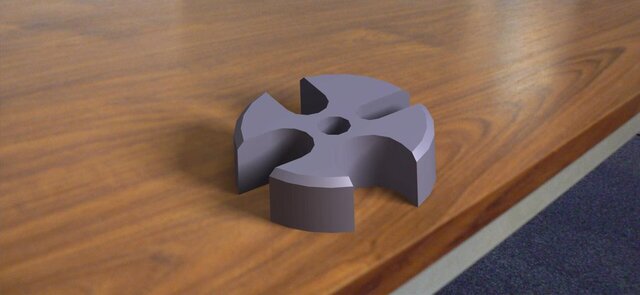

Rendering Images
