Milk Production Line

Report

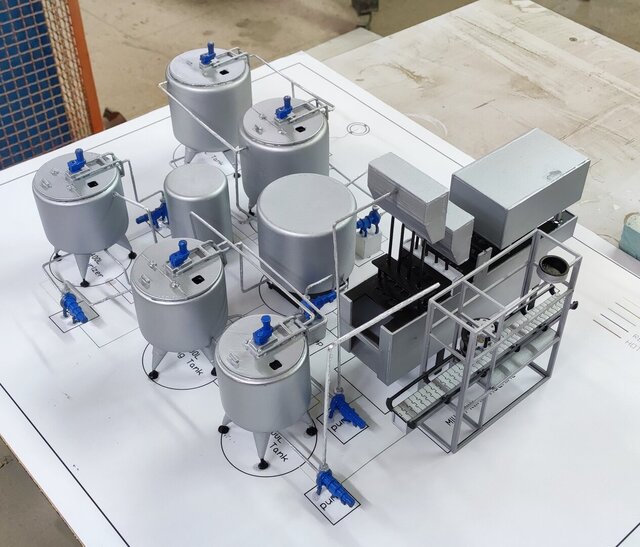

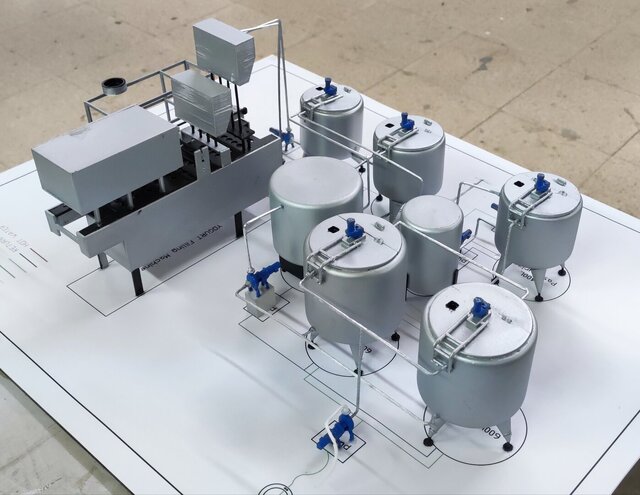

Designed a milk-processing production line in SOLIDWORKS with a focus on equipment layout, assembly structure, piping, tanks, structural frames, platforms, and processing equipment. Produced a 1:10 physical scale model using turned components and 3D printing, then assembled and finished the model to validate the overall system layout and component relationships.
Published
in 3D Modeling SolidWorks Design Services Mechanical Design Services
piping solidwokrs cad-design mechanical-desgn weldments 3d-print-model large-assembly equipment-layout

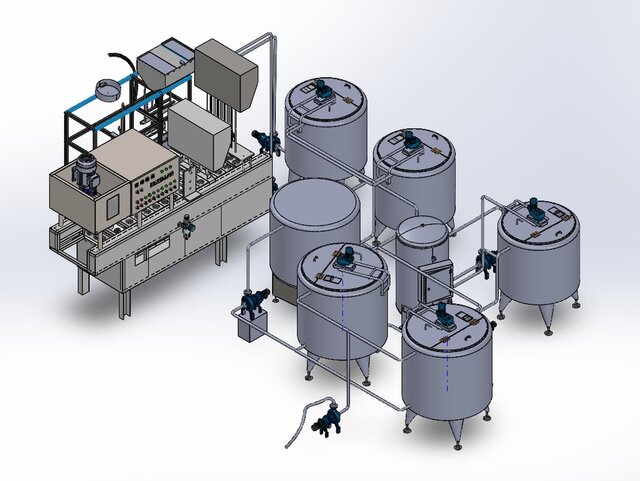

Rendering Images
