Micro-trenching machine, manufacturing drawings – image 1 of 3

Micro-trenching machine, manufacturing drawings – image 2 of 3

Micro-trenching machine, manufacturing drawings – image 3 of 3

Micro-trenching machine, manufacturing drawings

Name: Cad Crowd
Address: 1709 E Glenoaks Blvd Apt 4, Suite 4, Glendale, CA, 91206, US
Telephone: +1.877.880.8850
Price range: $$$

philanis

Report

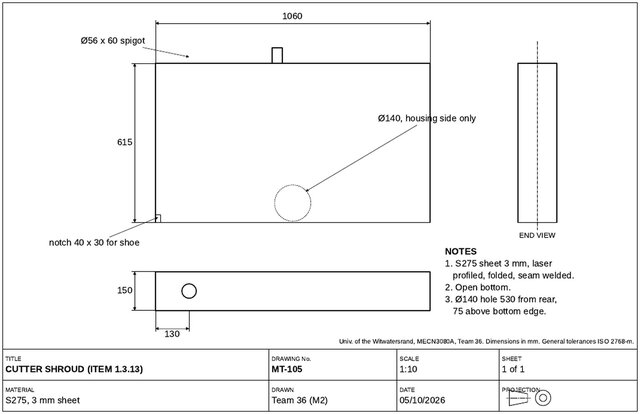

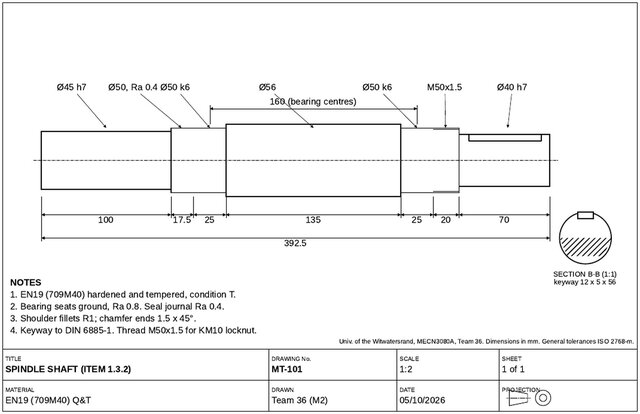

Manufacturing drawings from a university team design project (MECN3080A, Wits, Team 36): a self-propelled micro-trenching machine for fibre installation. Shows the general assembly, the spindle shaft and the sheet-metal cutter shroud, drawn in SolidWorks with dimensions, tolerances and title blocks.

Published Oct 6, 2026

in Mechanical Drafting Mechanical CAD Design

Rendering Images
