MEP Shop Drawings & Isometric Details | Quantity Takeoff | LOD 400

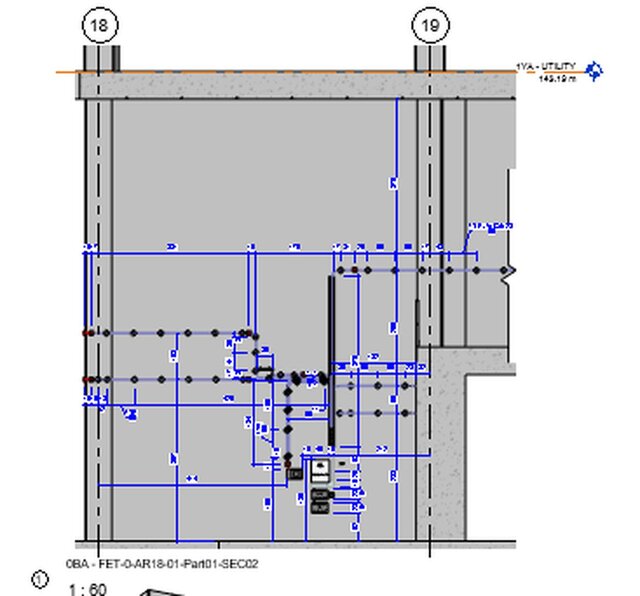

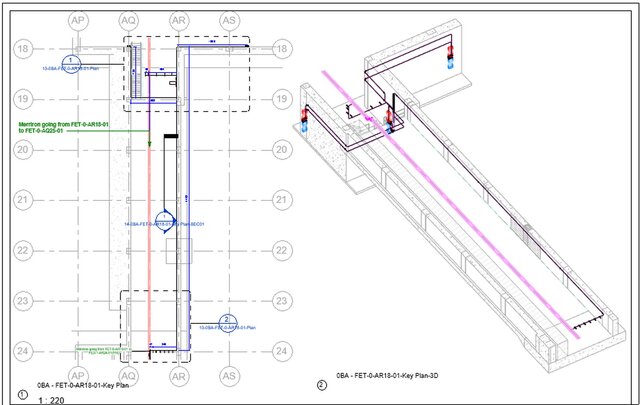

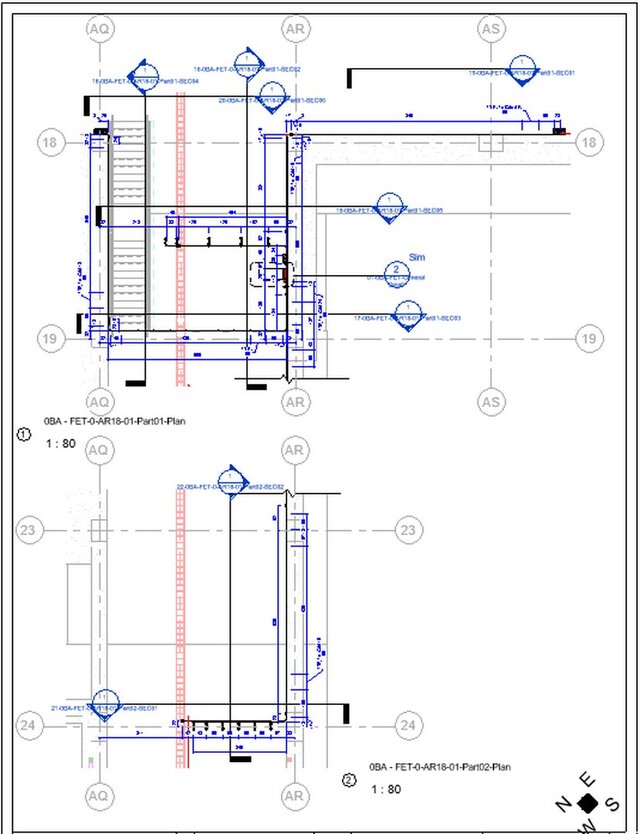

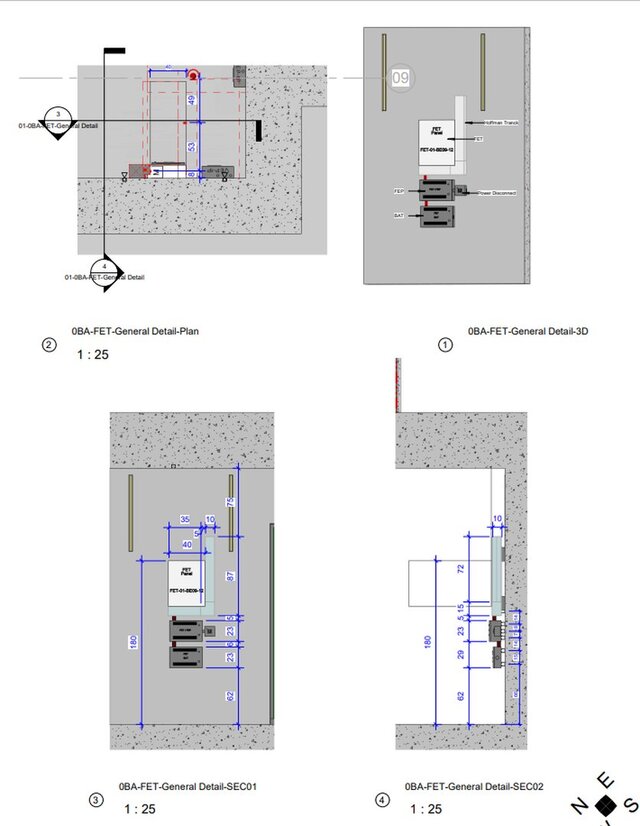

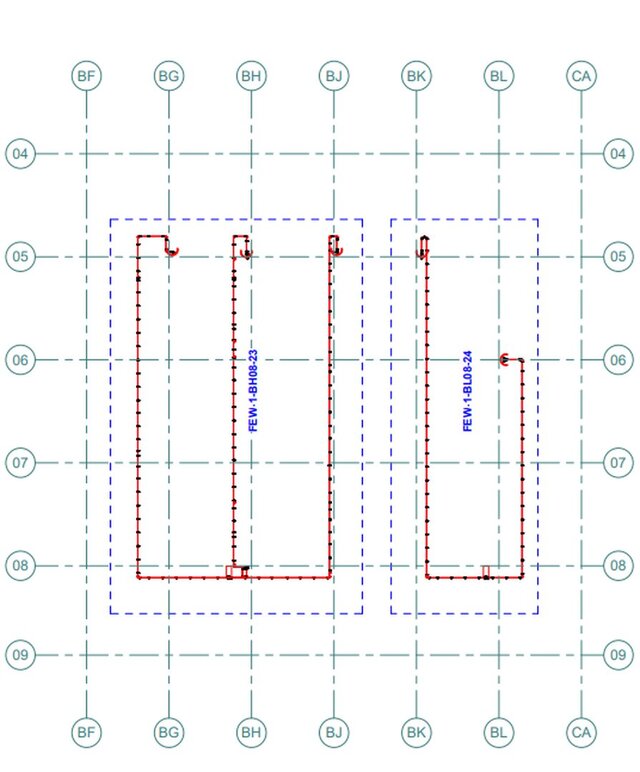

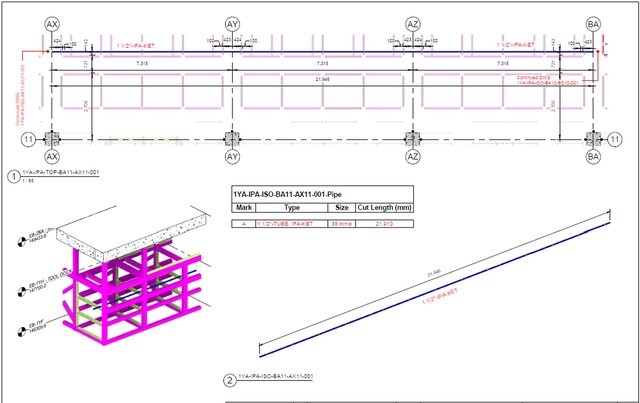

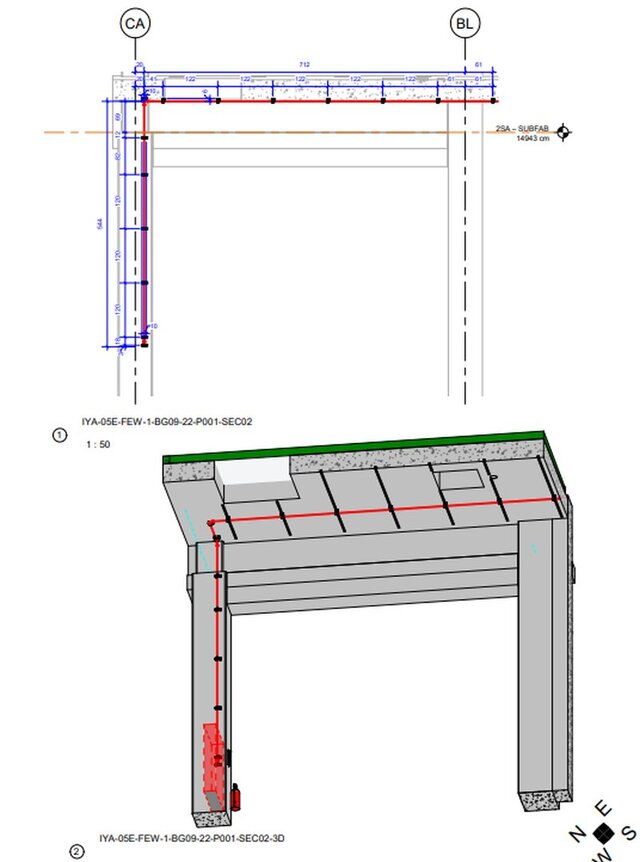

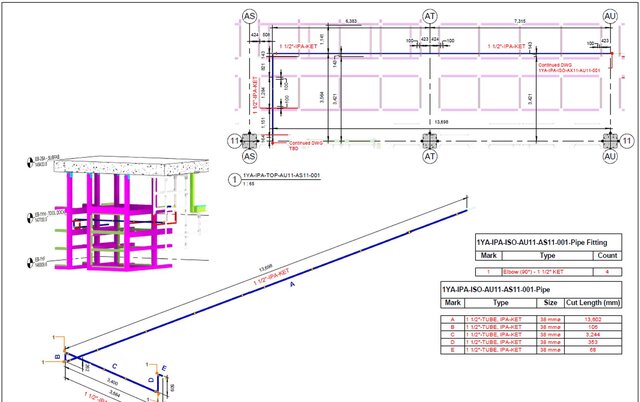

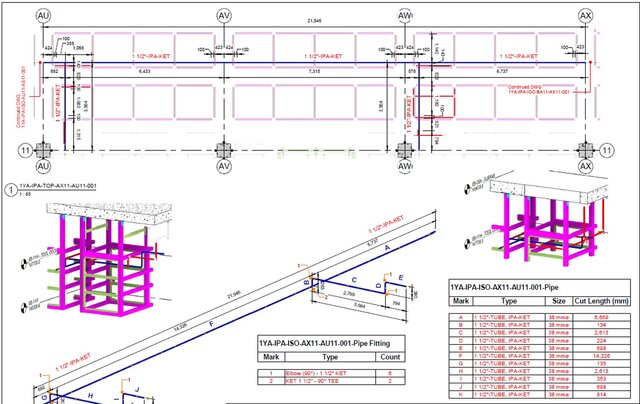

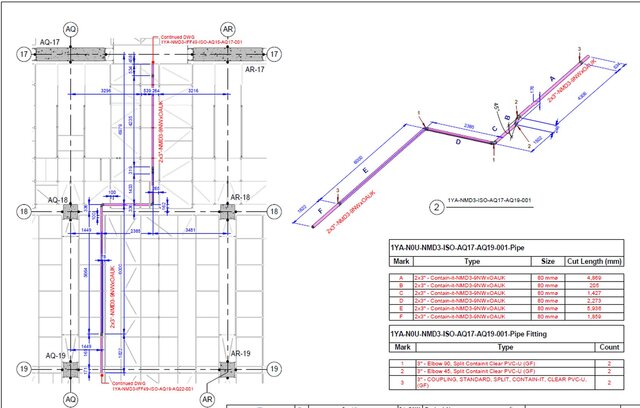

Complete MEP shop drawings and isometric detailing developed from BIM models (LOD 400) for industrial and commercial projects. Includes fully coordinated layouts, accurate routing, and installation-ready documentation to support site execution. Scope includes: • MEP shop drawings (plans, sections, details) • Isometric drawings for piping and services • Cable tray and conduit detailing • Quantity takeoff and material estimation • As-built / as-made drawing updates All drawings are prepared based on coordinated BIM models to ensure accuracy, constructability, and clash-free installation.
