Mechanical Assembly Design | SolidWorks | Manufacturing Drawings
This project showcases the design of a complete mechanical assembly developed in SolidWorks with a focus on functionality, manufacturability, and accurate documentation.
The assembly includes fully constrained components, proper mating, exploded views, and detailed manufacturing drawings suitable for fabrication, assembly, and production.
Deliverables
Complete 3D Assembly Model
Individual Part Files

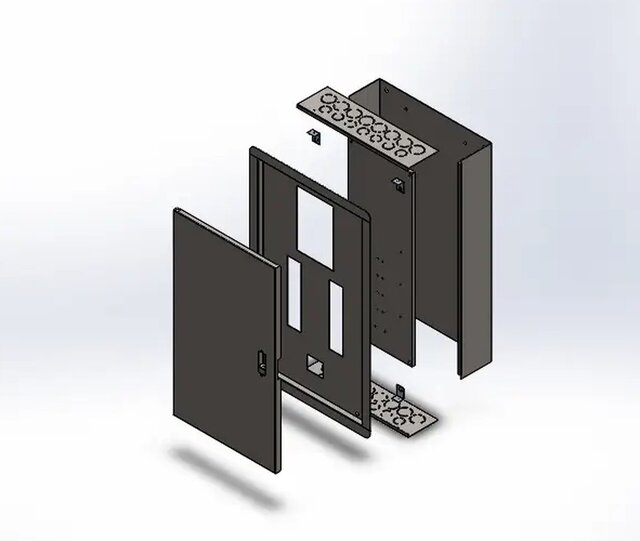

Exploded Assembly View
Assembly Drawings
Manufacturing Drawings
Bill of Materials (BOM)
STEP, IGES, STL, and PDF files
Software
SolidWorks
AutoCAD
Suitable for
Product Development
Industrial Equipment
Mechanical Systems
Manufacturing
CNC & Fabrication
3D Printing
